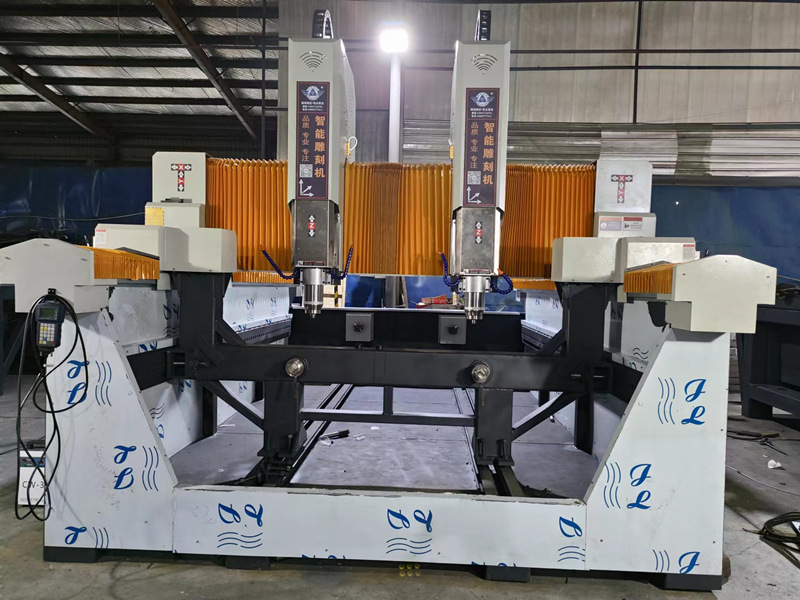

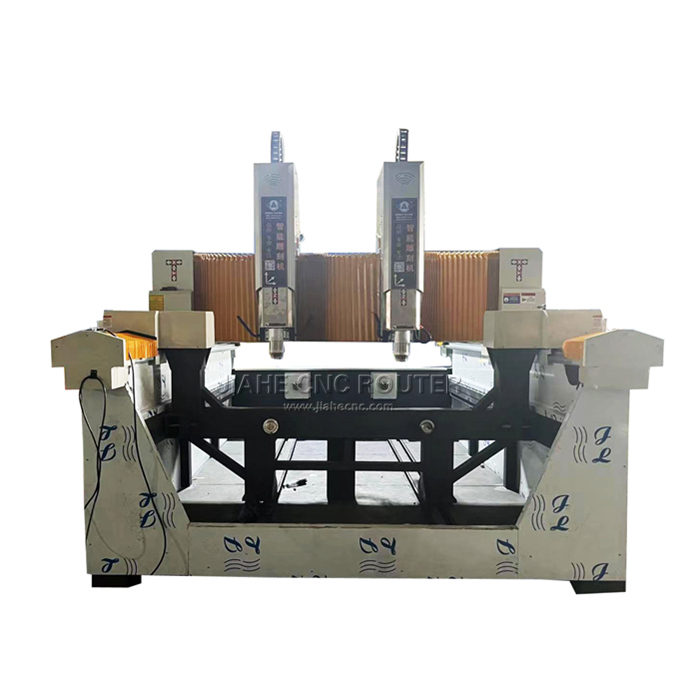

CNC Router Stone Engraving Machine
Model: JK-1015S rotary stone engraving machine
Rotary size: diameter 1000mm, length 1500mm
Spindle: 7.5kw*2pcs
Control system: A18 DSP
Motor: xyz axis 1.5kw, rotary axis 2kw
CNC Router Stone Engraving Machine JK-1015S with rotary axis for 3D stone carving, which is suitable for white stone, marble, granite, sandstone, stone columns and pillars, carving 3D sculptures and statues.
Technical parameters:
Description | Parameter |
Each rotary size | Diameter 1000mm, Length 1500mm |
Load capability | 1.5 tons for each head |
Lathe Structure | Large square tube thickened steel |
X,Y,Z Structure | X,Y Gear racks, Z ball screws(Option: Y-axis can be ball screws) |
Max.Speed | 0-20000mm/min |
Working Speed | 0-10000mm/min |
Spindle | 7.5kw*2 water cooled 24000rpm |
Linear rails | 30mm square linear guide rails(Option: Y-axis double rails) |
Motor and driver | Servo motor and driver |
Working Voltage | 380V,3PH(optional 220V) |
Command | G Code, *uoo, *mmg, *plt |
Operating System | Richauto DSP control system |
Tools size | 3.175mm-12.7mm |
Collet | ER32 |
Software | Artcam software |
Packing Size | 3900*2050*2030mm |
Net Weight | 3500KG |
Gross Weight | 3700KG |
CNC router Stone Engraving Machine parts show:

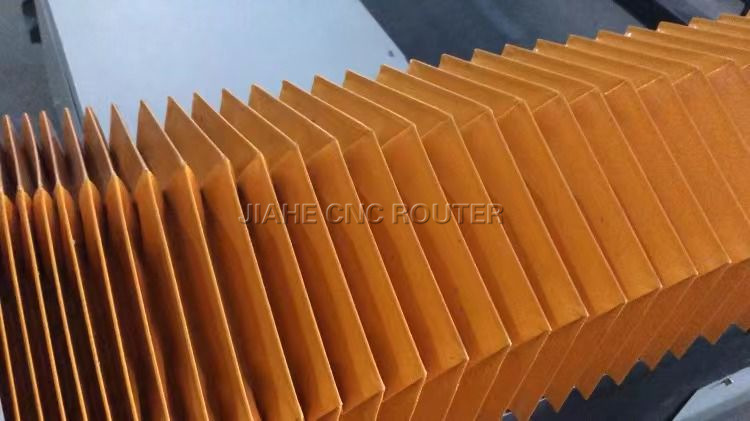

The dustproof cloth of Rotary CNC Stone Carving Machine adopts triangle design. The feature of this structure is that water flows down easily, preventing water retention.

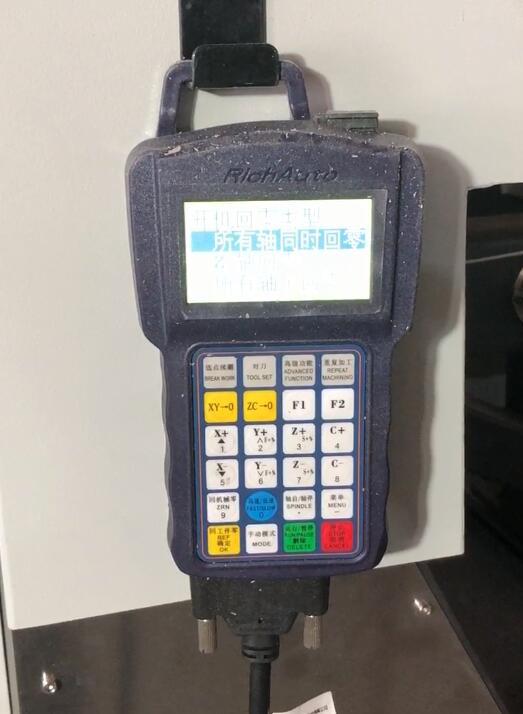

2. Richauto 4axis DSP control system, easy to operate.

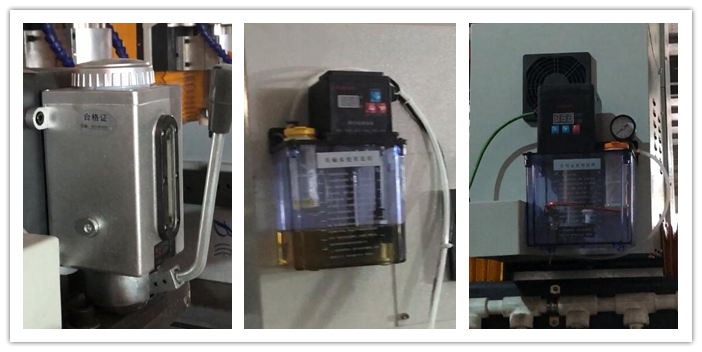

3. Three oil lubrication pumps for full machine maintainance.
The 1st pump for tail stock of rotary The 2nd pump for Y-axis The 3rd pump for machine heads

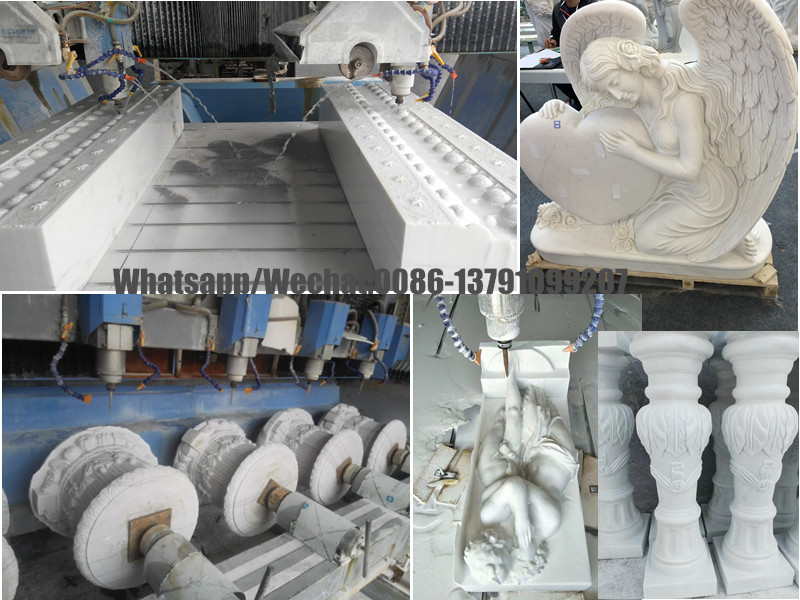

CNC router stone engraving machine samples:
