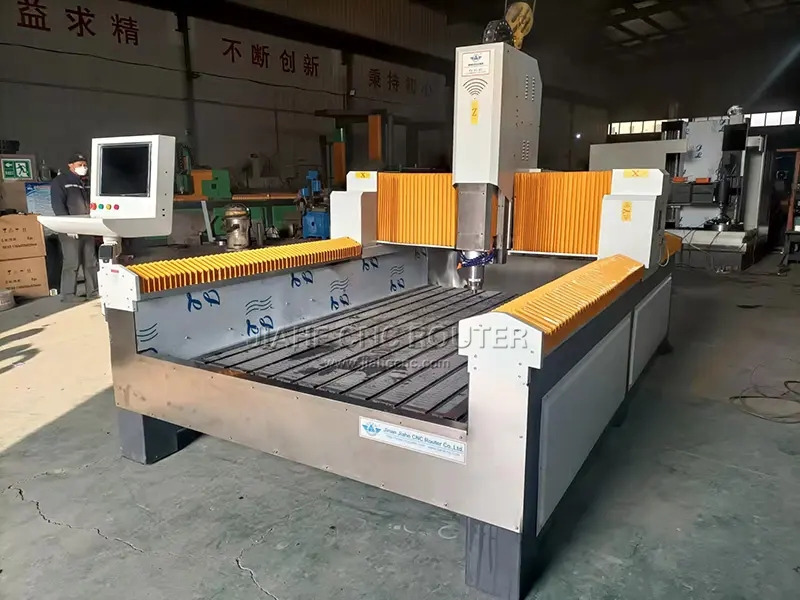

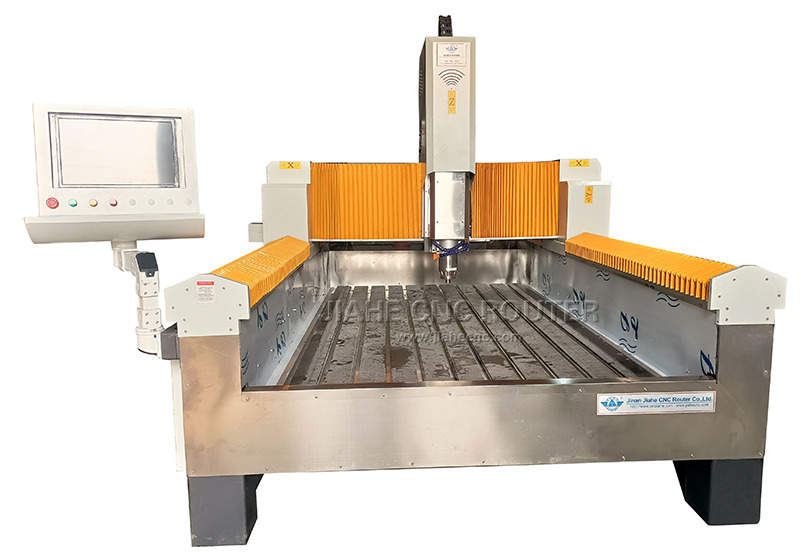

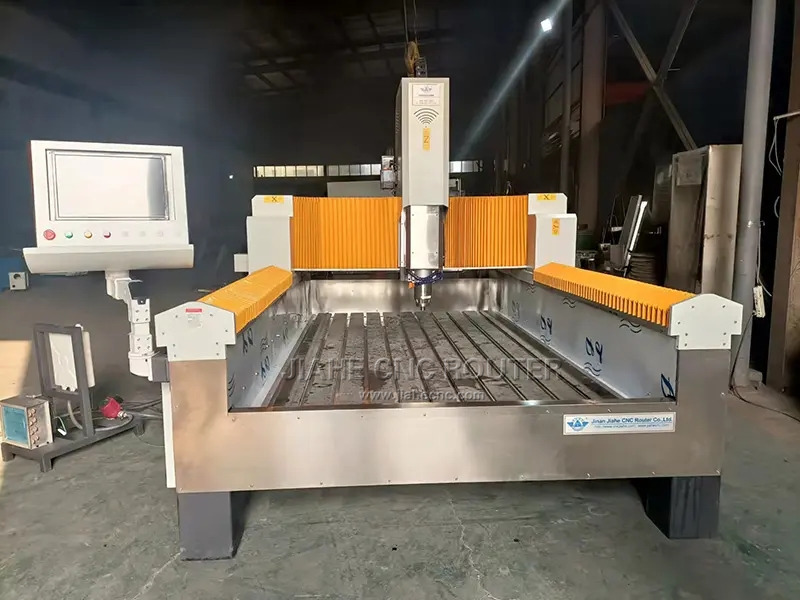

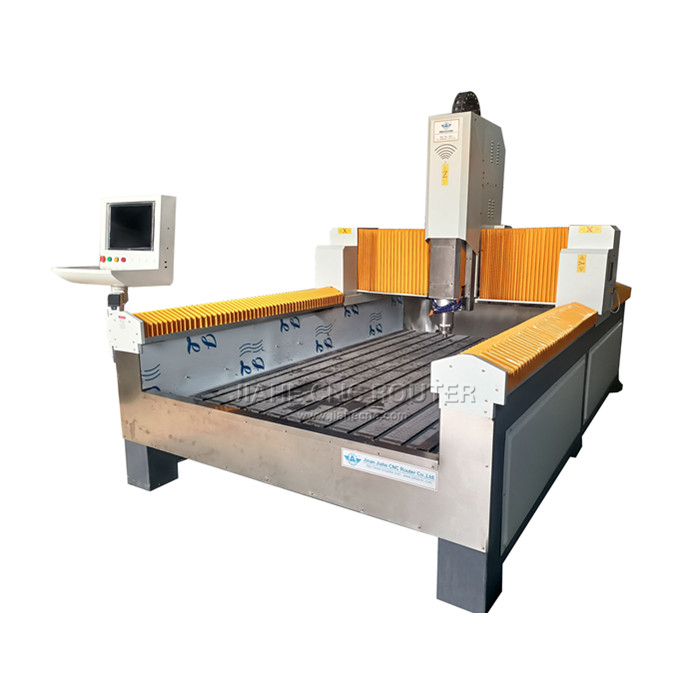

Stone Carving Machine
Model: JK-1325
Usage: for engraving tombstone,monument,memorial
Transportation: LCL or FCL by sea from Qingdao port
Service: 7×24 hours technical support
1325 8ft×4ft 3 Axis stone engraving machine is professionally working on marble,granite,sandstone,etc stone materials for tombstone,monument,memorials,etc.
Technical parameters of Stone Carving Machine
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x400mm |
2 | Table Size | 2900*1820mm |
3 | X,Y,Z axis Positioning Accurate | ±0.03/300mm |
4 | Table type | T-slot fixture |
5 | Lathe Structure | welded construction |
6 | X, Y Structure | Gear Wheel Transmission,Shaft Linear Bearings |
7 | Z Structure | Ball Screw, shaft Linear Bearing |
8 | Max. Consume power | 6.5Kw |
9 | Max.Speed | 0-20000mm/min |
10 | Max. Working Speed | 0-10000mm/min |
11 | Spindle Power Motor | 5.5kw water cooled spindle |
12 | Spindle Speed | 0-18000RPM |
13 | Motor and driver | Servo motors and drivers |
14 | Working Voltage | 380V,3PH(optional 220V) |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | Weihong control system |
17 | Interface | Computer |
18 | Tools size | 3.175mm-16mm |
19 | Collet | ER32 |
20 | Software | Artcam software |
21 | Running Circumstance | Temperature: 0℃～45℃ |
Relative humidity: 30%～75% | ||
22 | Packing Size | 3100*2050*1900mm |
23 | Net Weight | 1800KG |
24 | Gross Weight | 1900KG |
Details show of Stone Carving Machine

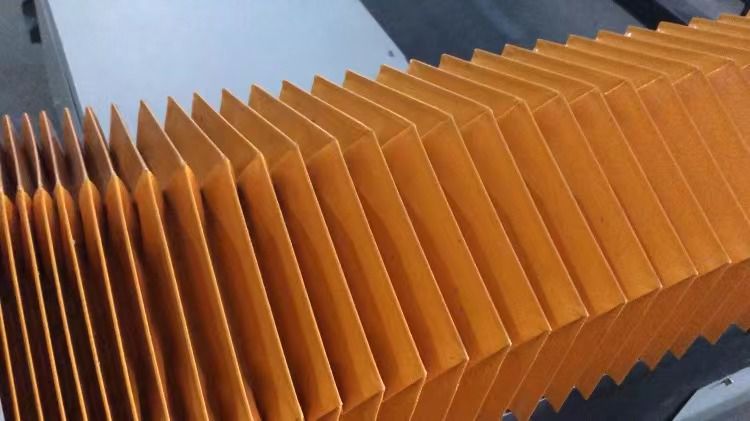

1. Dust cloth design
The dustproof cloth of JIAHE Stone CNC Router adopts triangle design. The feature of this structure is that water flows down easily, preventing water retention.

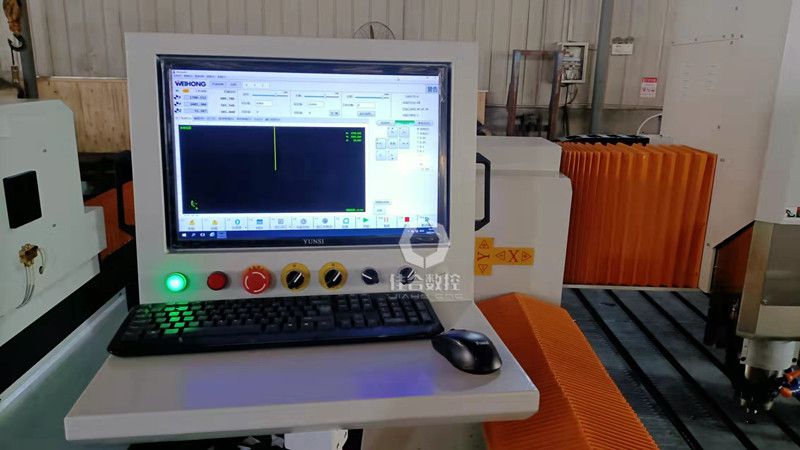

2. Intelligent operation console
Weihong control system, 19-inch large LCD monitor.

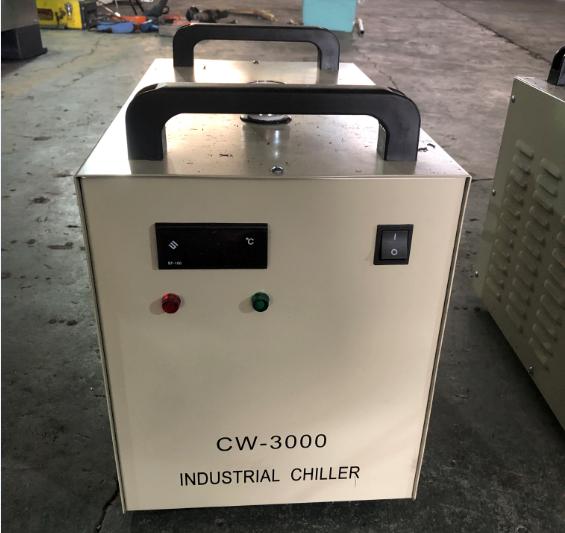

3. Water chiller for cooling spindles
JIAHE CNC Stone Router supplies Water Chiller CW3000 for cooling spindles. The cooling effect of the chiller is much better than that of the ordinary water pump, especially for countries and regions with relatively high temperatures.

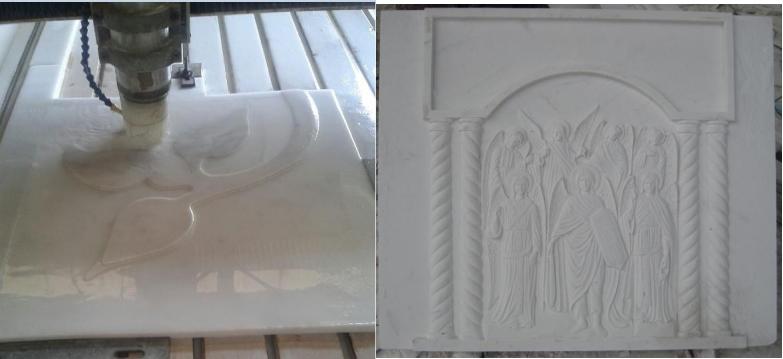

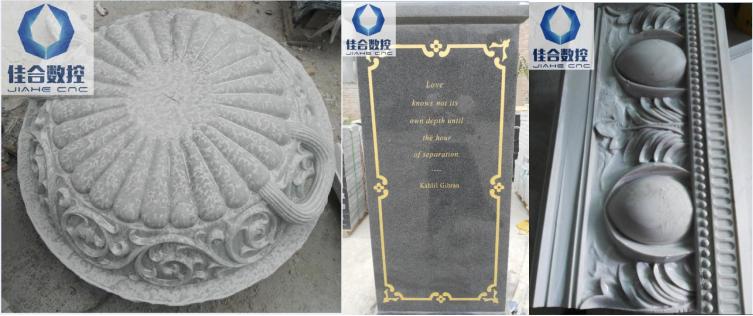

1325 Stone CNC Router Engraving Samples
1325 Stone CNC Router Engraving Machine is designed for headstone, memorial stone, granite tombstone with CNC bits for carving traditional v-sink letters, and memorial photos engraving. It can also engrave large relief frescoes, fireplaces, garden railings and decorative carvings.
Machine package of Stone Carving Machine
Our service
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers would answer you online or by calls.

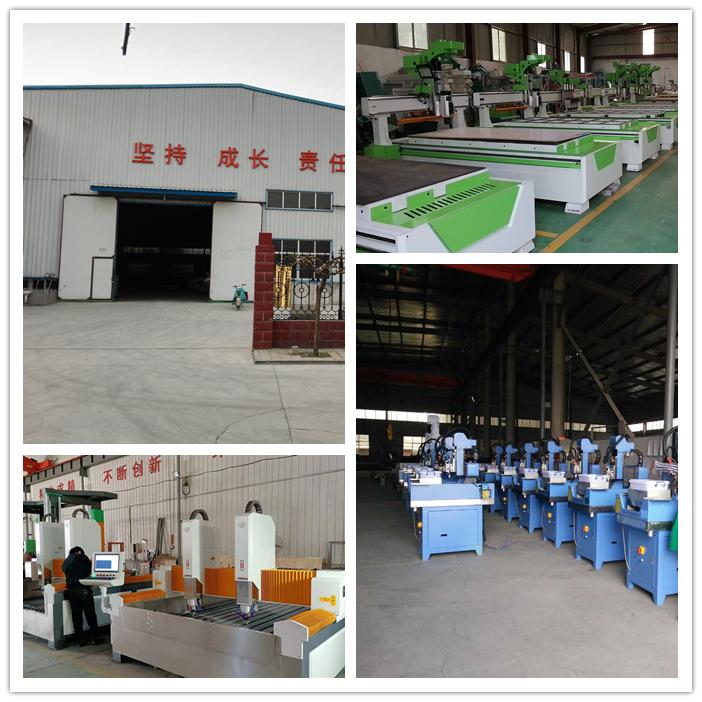

Factory show
