CNC Stone Carving Machine With Rotary Axis
Model: JK-4010 CNC Stone Carving Machine With Rotary Axis
Rotary diameter: 400mm
Rotary length: 1000mm
Spindle: 5.5kw
Motor: servo

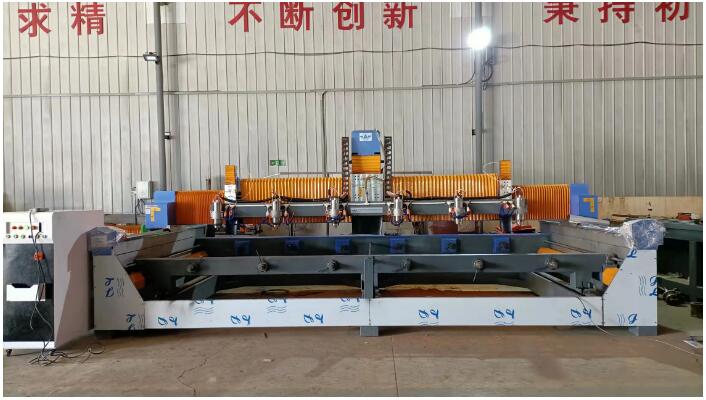

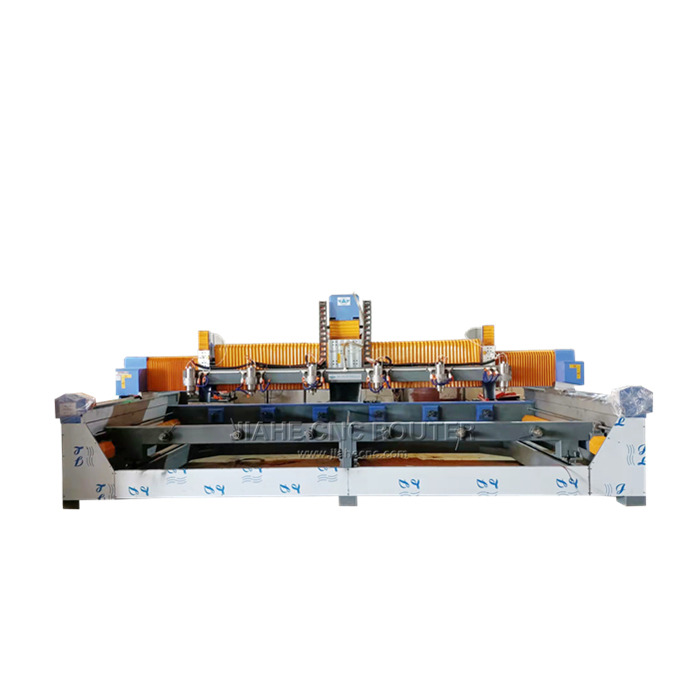

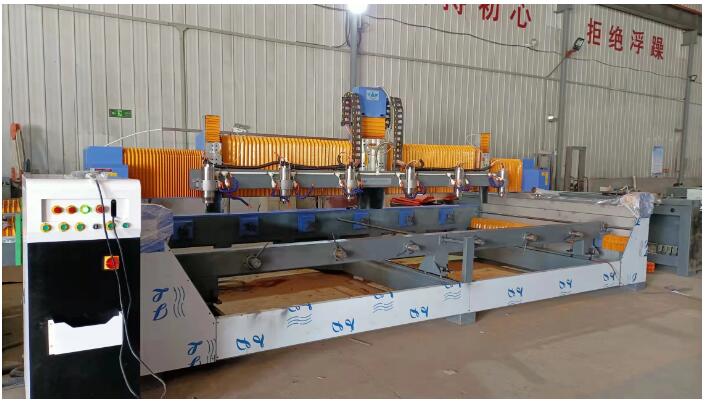

Multi-head 4 Axis CNC stone carving machine with six spindles, which is suitable for engraving dragon columns, stone lions, buddha statues, capitals, stone railings, and three-dimensional animal figures on marble, granite.
Technical parameters of CNC Stone Carving:
NO. | Item name | Parameters | |
1 | Working size | Rotary diameter/each head | 400mm |
Rotary length | 1000mm | ||
Z-axis | 400mm | ||
2 | Plane working | Extra working table can be added | 2400*1000mm |
3 | Accuracy | Working accuracy | ±0.1mm |
Repeatability accuracy | ±0.1mm | ||
4 | Structure | Table structure | Channel steel + hard ABS plate |
X/Y/Z-axis structure | X/Y-axis racks, Z-axis ball screws | ||
5 | Speed | Max.travelling speed | 30000mm/min |
Max.working speed | 10000mm/min | ||
6 | Spindle | Power | 5.5KWx6 |
Speed | 24000r/min | ||
7 | Motor | Servo | |
8 | Voltage | AC380V | |
9 | Command | G code, F/S command compatible | |
10 | Controller | DSP 4axis control system |

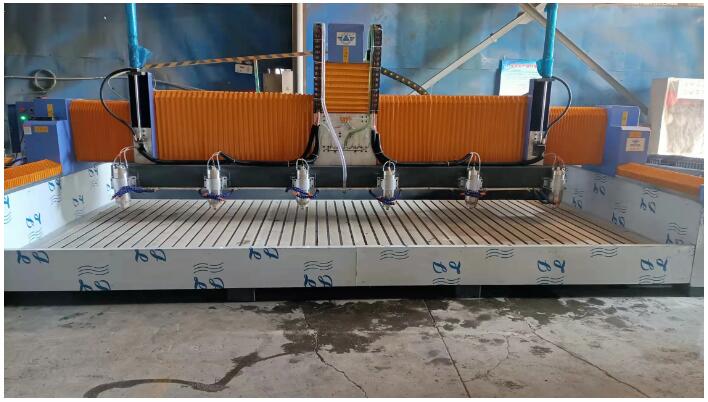

The flat working table can be added on CNC stone carving to carve flat surce stone products.
If you want to get stone carving machine price, please feel free to contact with us.
