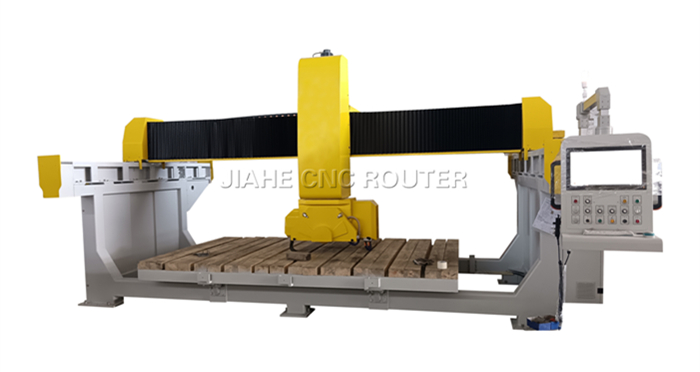

Five-Axis Bridge Cutting Machine for Stone

With high-speed cutting capabilities and multi-functionality, bridge cutting machine enhances productivity by reducing production time and increasing efficiency. Its ability to perform various cutting operations seamlessly allows for quicker turnaround times without compromising on the quality of the cuts.

Model: JK5L-3420

Working size: 3400*2000*400mm

Saw diameter: 300-600mm

Main motor power: 22kw

Contact Now E-Mail Telephone WhatsApp

Product Details

Bridge cutting machine represents a significant advancement in the field of stone fabrication, offering precision, efficiency, and versatility in cutting stone materials. Whether used for kitchen countertops, architectural elements, or monumental sculptures, stone bridge cutting machine elevates stone fabrication to new levels of craftsmanship and innovation.

Technical parameters of bridge cutting machine:

		5 axis CNC bridge saw(Standard)
Items	Unit	JK5L-3420
Axis linkage		5 axis five linkage
Working table	mm	3400×2000
Effective travelling area of Z axis	mm	400
Angle of cutting head(A axis)	°	0-90°(Numerical)
Rotate angle of cutting head(C axis)	°	±185°
Table turning angle		0-85°
Effective working area	mm	3400×2000
Blade diameter	mm	300-600
Main motor power	kw	22
Spindle motor	Kw	5.5
Speed of spindle(RPM)	r/min	3000/6000
Travel speed	m/min	(X axis 0-30,Z axis 0-15,C axis 0-9)
Control system		China system
Cutting software		Professional cutting software
Total power	kw	36
Drive mode		Z,Y axis adopts precision screw guide rail,and X axis adopts precision gear rack
Lubrication		Electronic pump automatic lubrication for XYZ axis
Outline dimensions	mm	6200×3300×3700(L×W×H)
Total weight	kg	6500
	camera	✔
	Cutting	✔
	Milling	✔
	profiling	✔
	Plane carving	✔

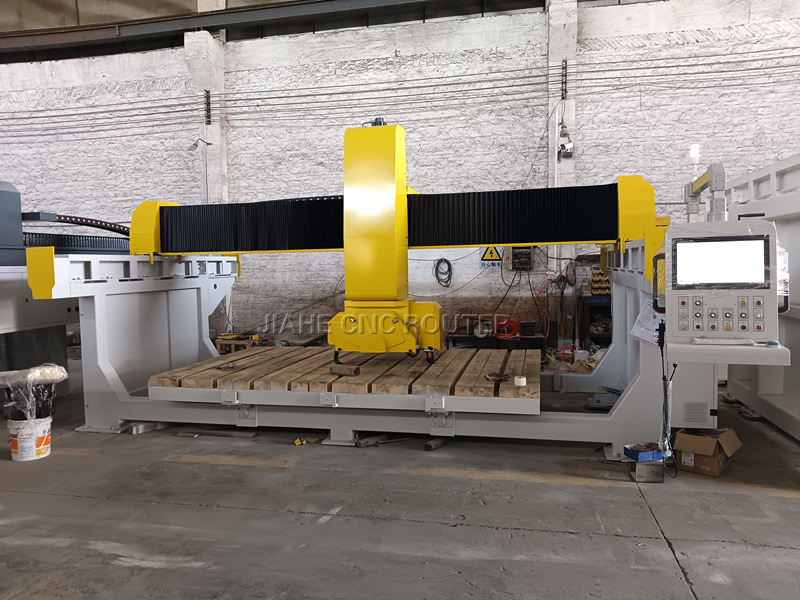

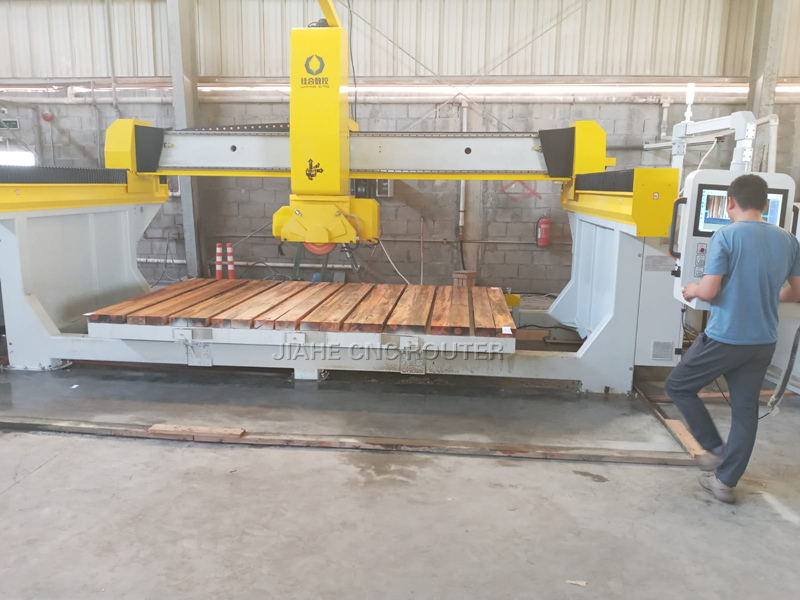

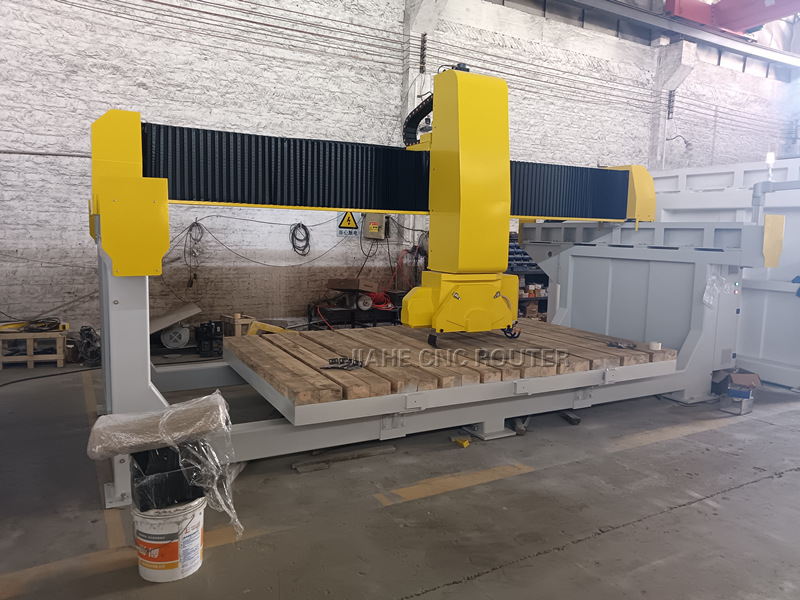

Bridge Cutting Machine

Key Features of bridge cutting machine:

Five-Axis Precision: Our machine offers unparalleled cutting precision and flexibility with
its five-axis control system. This allows for intricate and complex cuts to be made on stone surfaces with utmost accuracy.
Bridge Structure: The sturdy bridge structure of the machine ensures stability and rigidity during the cutting process, minimizing vibration and ensuring smooth and clean cuts every time.
High-Speed Cutting: Equipped with advanced cutting technology, our machine can achieve high cutting speeds without compromising on the quality of the finish. This translates to faster production times and increased efficiency.

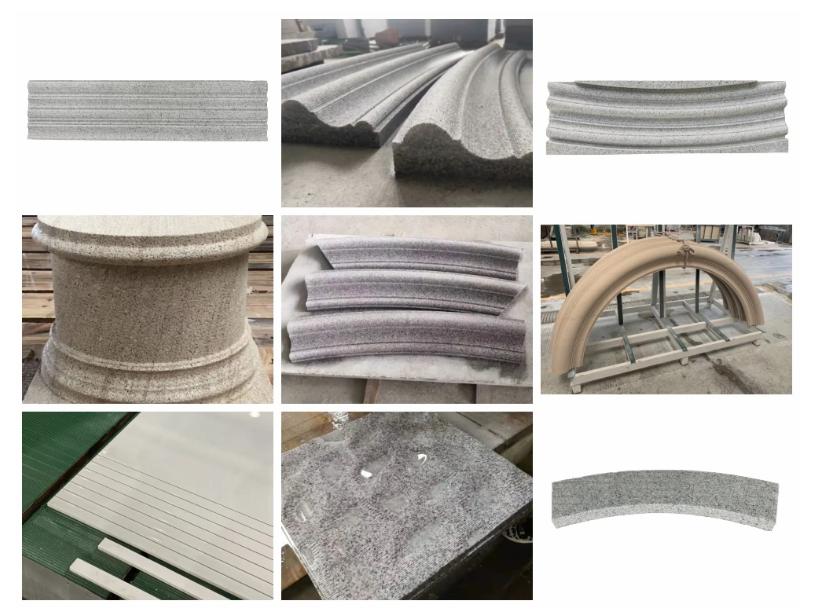

Multi-Functionality: The Five-Axis Bridge Cutting Machine is capable of performing a wide range of cutting operations, including straight cuts, curved cuts, beveling, profiling, and more. This versatility allows for limitless design possibilities in stone fabrication.
