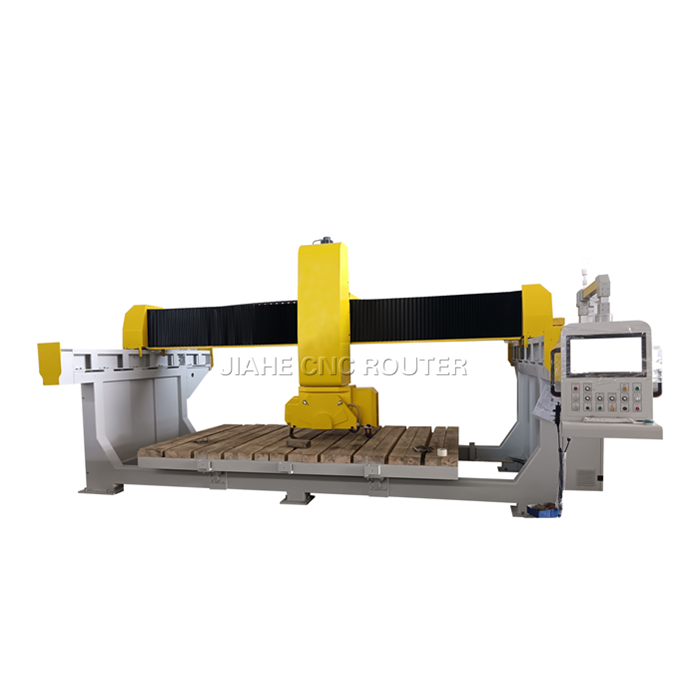

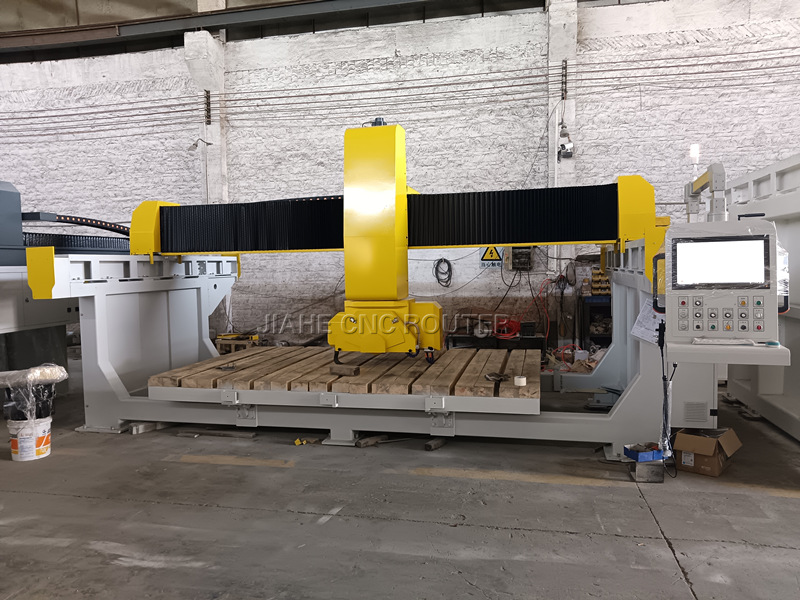

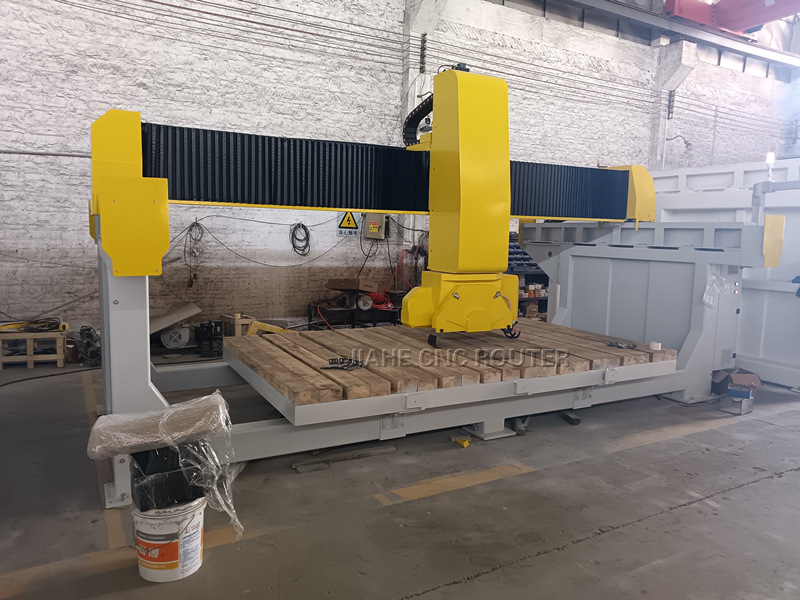

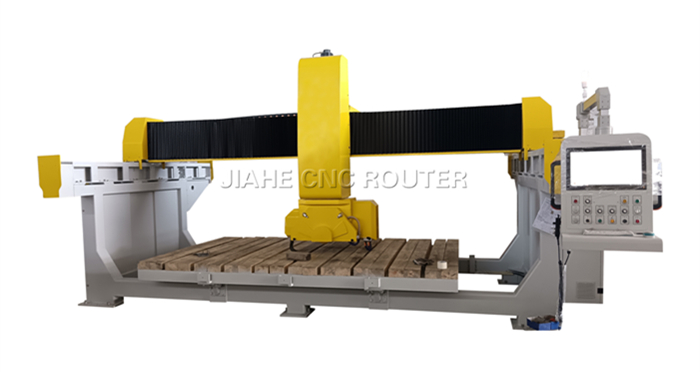

2024 New 5 Axis CNC Bridge Saw Machine
5 axis CNC bridge saw machine is a cutting-edge industrial machine widely used in the stone industry. It offers exceptional precision, versatility, and efficiency in cutting stone materials.
Model: JK5L-3420
Working size: 3400*2000*400mm
Saw diameter: 300-600mm
Main motor power: 22kw

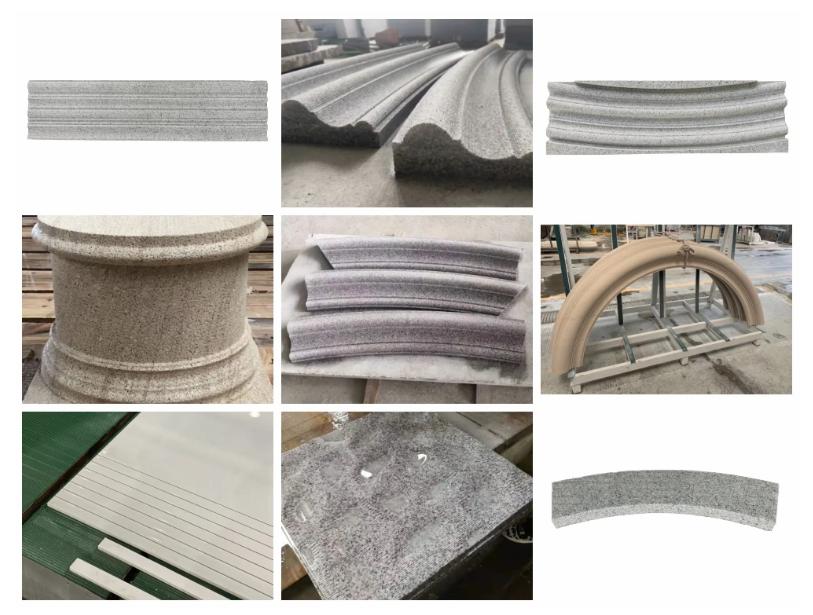

5 axis CNC bridge saw machine is widely used for cutting stone, marble, and granite slabs used in countertops, flooring, wall cladding, architectural decoration and customized stone products.
Features of 5 axis CNC bridge saw machine:
1. Simple and intuitive
2. Straight line circular arc, grid, click to cut;
3. Notching, chamfering, beveling, cutting as you like
4. 5 axis CNC bridge cutter makes Rome columns, twisted columns, flowerpots, special-shaped, etc. processing easily
5. 5 axis bridge cutters are available in a variety of shapes like cambered shapes, engraving, drilling, profiling, etc.
6. 5 axis bridge cutting machine can connect with a scanner, nesting as required, save materials save time
7. The 5 axis bridge cutter is easy to use, convenient and intelligent, high efficiency, and has a low energy consumption
8. Apply international brand CNC control system, servo motor & driver
9. 15”color touch screen, USB, Ethernet interface
10. The 5 axis bridge cutter can be seamlessly integrated with a scanner, realizing real-time scanning layout setting
11. With the internet remote diagnosis function, the system parameters of 5 axis bridge cutter can be modified by remote control
Technical parameters of 5 axis CNC bridge saw machine:
5 axis CNC bridge saw(Standard) | ||
Items | Unit | JK5L-3420 |
Axis linkage | 5 axis five linkage | |
Working table | mm | 3400×2000 |
Effective travelling area of Z axis | mm | 400 |
Angle of cutting head(A axis) | ° | 0-90°(Numerical) |
Rotate angle of cutting head(C axis) | ° | ±185° |
Table turning angle | 0-85° | |
Effective working area | mm | 3400×2000 |
Blade diameter | mm | 300-600 |
Main motor power | kw | 22 |
Spindle motor | Kw | 5.5 |
Speed of spindle(RPM) | r/min | 3000/6000 |
Travel speed | m/min | (X axis 0-30,Z axis 0-15,C axis 0-9) |
Control system | China system | |
Cutting software | Professional cutting software | |
Total power | kw | 36 |
Drive mode | Z,Y axis adopts precision screw guide rail,and X axis adopts precision gear rack | |
Lubrication | Electronic pump automatic lubrication for XYZ axis | |
Outline dimensions | mm | 6200×3300×3700(L×W×H) |
Total weight | kg | 6500 |
camera | ✔ | |
Cutting | ✔ | |
Milling | ✔ | |
profiling | ✔ | |
Plane carving | ✔ |
Applications in the Stone Industry:
Countertop Production: 5 axis bridge saw is extensively used in cutting stone slabs to create countertops for kitchens, bathrooms, and other residential and commercial spaces.
Flooring and Wall Cladding: It is employed to cut stone tiles and slabs for flooring and wall cladding applications in residential and commercial buildings.
Monument and Sculpture Creation: The machine's precision cutting capabilities make it an ideal choice for producing intricate monuments and sculptures from various types of stone.
Architectural Decoration: It is utilized for precise cutting and shaping of stone materials used in architectural elements such as pillars, arches, and facades.
Customized Stone Products: 5 axis CNC bridge saw enables the creation of custom-designed stone products, including tabletops, fireplace surrounds, and decorative objects, tailored to customer preferences.
