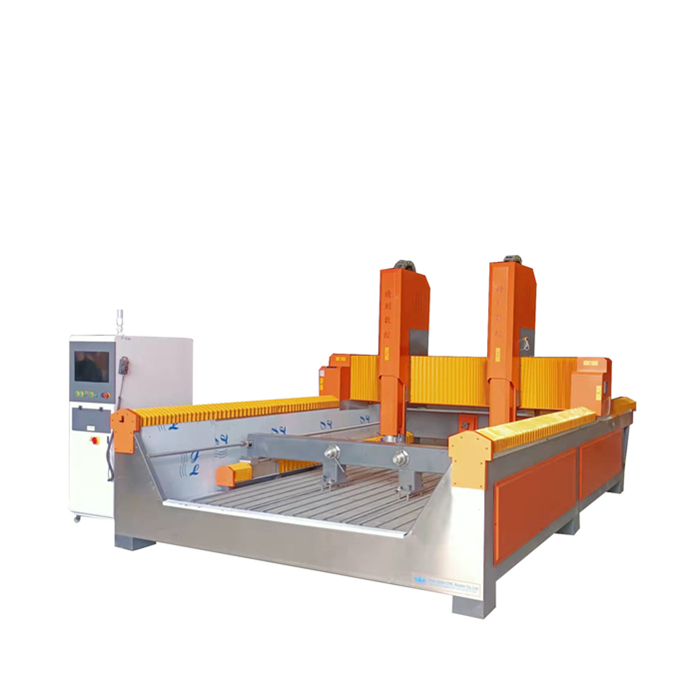

Marble Engraving Machine

Model : JK-1525S

Usage: for engraving mable products

Working size : 1500*2500*300mm

Spindle : 5.5kw*2 water cooled

Motor : 1.5kw servo

Driver : servo

Contact Now E-Mail Telephone WhatsApp

Product Details

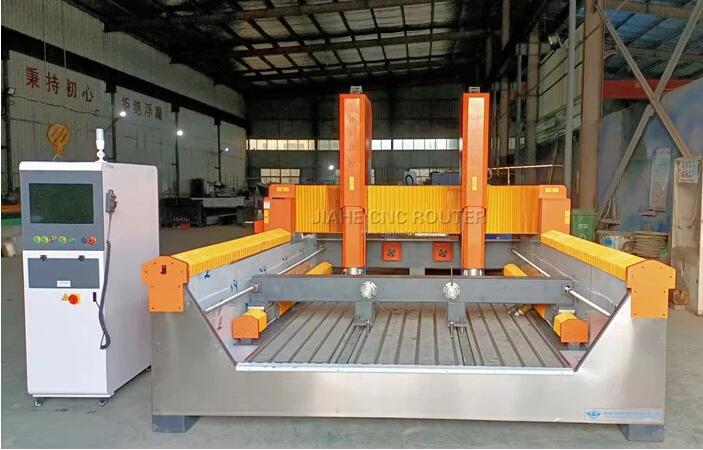

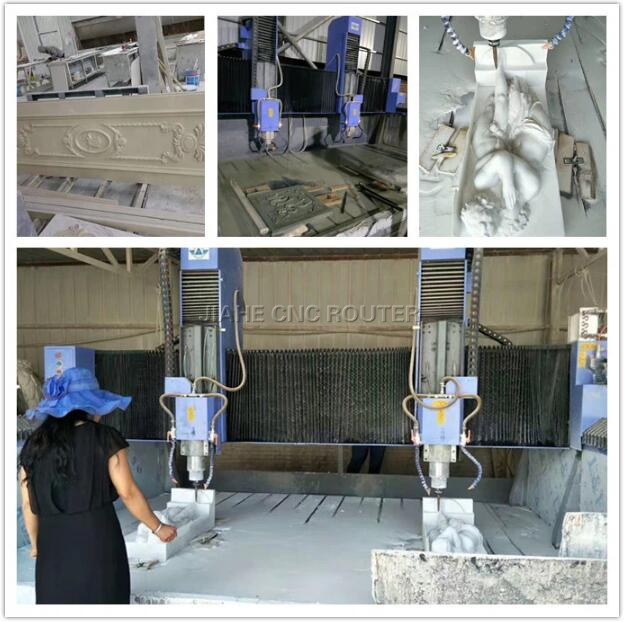

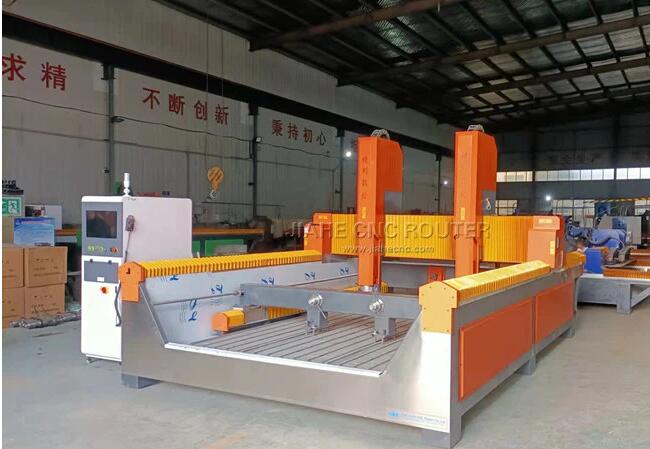

Marble engraving machine JK-1525S with working size 1500×2500mm, using for stone lettering, stone relief, marble carving, stone line carving, stone cutting, stone hollowing. Marble carving machine is applicable to stone industry, marble tombstone processing industry, art relief, advertising industry, decoration industry and ceramic industry.

Technical parameters:

Description	JK-1525S
X,Y Working Area	15002500mm/7502500mm(single head)
Z Working Area	300mm
Resolution	0.01mm
Lathe Structure	welded steel+SS/printed metal sheet
X,Y Structure	Rack and pinion transmission
Z Structure	Ball screw driving
Guide way	Linear Square rail
Max. Idling Speed	35m/min
Spindle	HQD 5.5KW*2 made in China
Spindle Rotate Speed	0-24000r/min, variable speed
Inverter	Fuling inverter
Working Voltage	AC380V/50Hz
Working Mode	Servo motors and drivers
Command	G code,HPGL,U00,mmg,plt
Operating System	DSP
Diameter of cutter	φ3.175-φ12.7mm
Cooling Mode	Water-cooling
Work-holding	By suction or Clamp
Certification	CE
