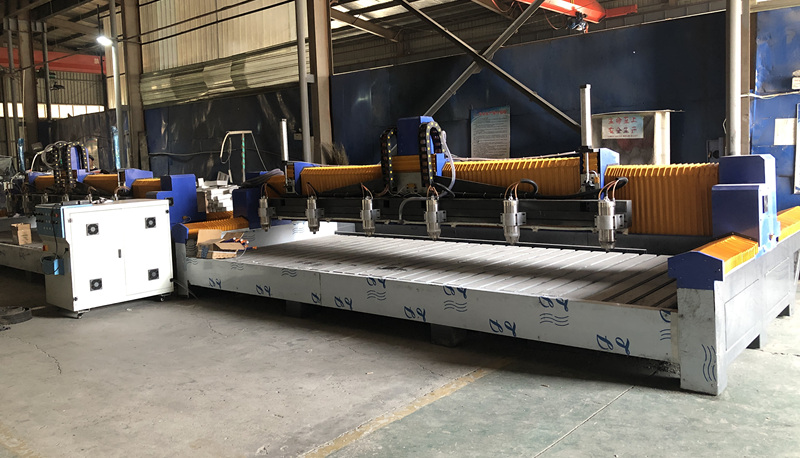

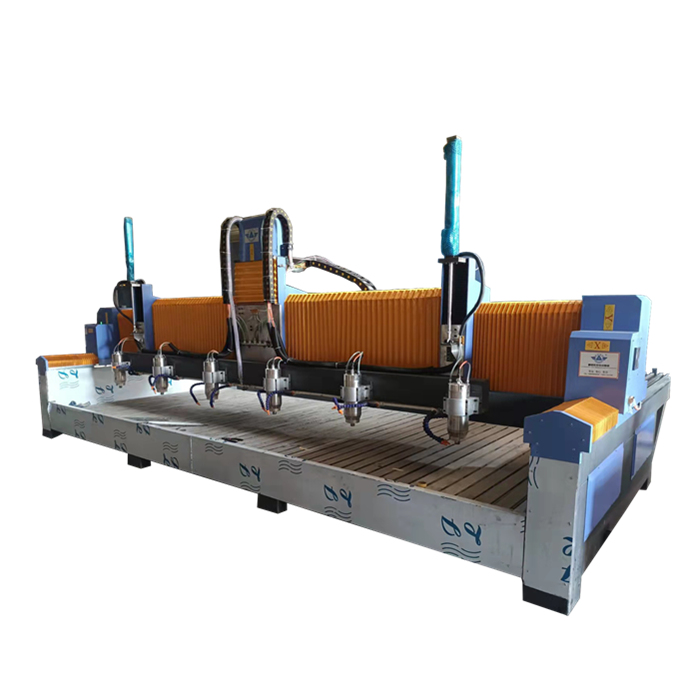

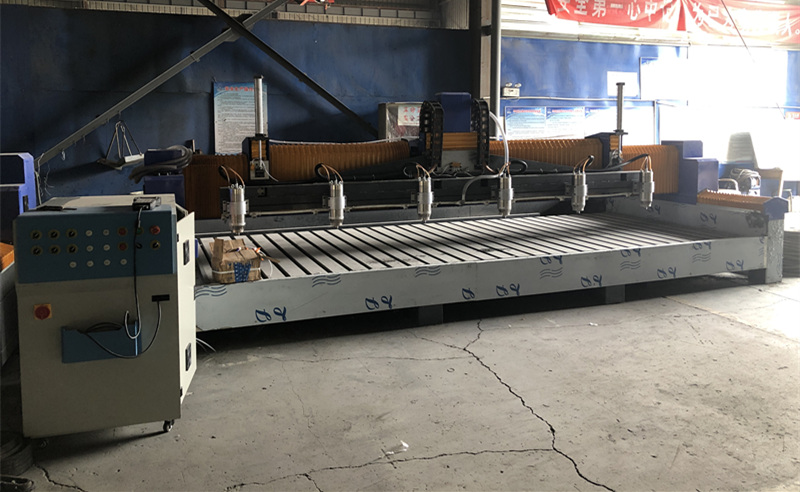

Multi Heads CNC Stone Engraving Machine

CNC stone engraving machine enables efficient and precise carving of stone, ceramics, marble, and granite. The machine is ideal for industrial use in the construction, decoration, and art industries.

Model: JK-3015

Working size: 3000mm*1500mm
X-axis: 500mm/each head
Motor: servo
Control system: DSP or Ncstudio

Contact Now E-Mail Telephone WhatsApp

Product Details

CNC stone engraving machine is compatible with various materials including marble, granite, stone and ceramics. The machines have the ability to carve unique designs, shapes, and patterns on various sized materials.

Advantage of Multi Heads CNC Stone Engraving Machine: it can engrave 6 pieces of stone at the equal time to improve the running performance.

CNC Stone Engraving Machine features:

1. High Speeds and Efficiency: CNC stone engraving machine is equipped with advanced motors and control systems that ensure high performance and fast speeds. This means that carving projects can be completed quickly and efficiently.

2. Precision and Accuracy: The machine uses high-precision sensors and control systems to guarantee accurate carving results. The accuracy and precision of the carved designs and shapes ensure a finished product that is of high quality and in line with the client's specifications.

3. Multiple Heads Configuration: Multi heads CNC stone engraving machine has multiple heads that can be configured to carve a variety of designs and patterns. Multiple heads enable the machine to work on several projects simultaneously, which saves time and increases productivity.

4. Ease of Use: Multi heads CNC stone engraving machine has an intuitive interface that makes them easy to use, even for beginners. The software is user-friendly and allows for customization of the carving process, making it perfect for both novice and experienced operators.

5. Low Maintenance Costs: Multi heads CNC stone engraving machine is designed to be easy to maintain. The machine requires little maintenance apart from regular cleaning, lubrication and replacement of worn parts. The low maintenance costs help to lower the overall operational costs of the machine.

CNC Stone Engraving Machine

Technical parameters:

Model	JK-3015S
X,Y axis working size	3000×1500mm
Z axis working size	500mm
Table size	3180×1600mm
Max. running speed	20m/min
Max. working speed	10m/min
Resolution	0.005mm
Repeatability accuracy	0.05mm
Command	G code,u00,plt
Software running environment	Windows98/2000/xp
Power(not including spindle)	2000W
Working voltage	AC380V/50Hz
Spindle power	5.5KW*6
Spindle speed	0-24000rpm/min
Motor	Servo
