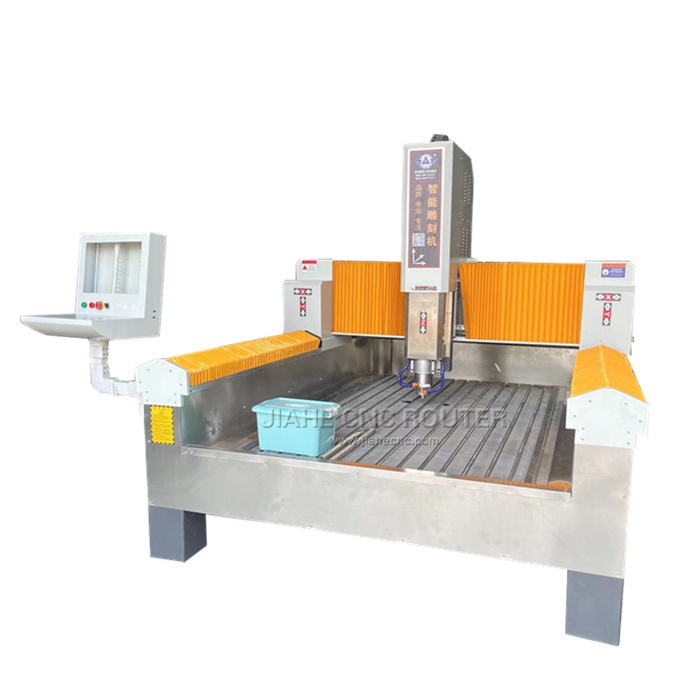

CNC Engraving Machine For Granite

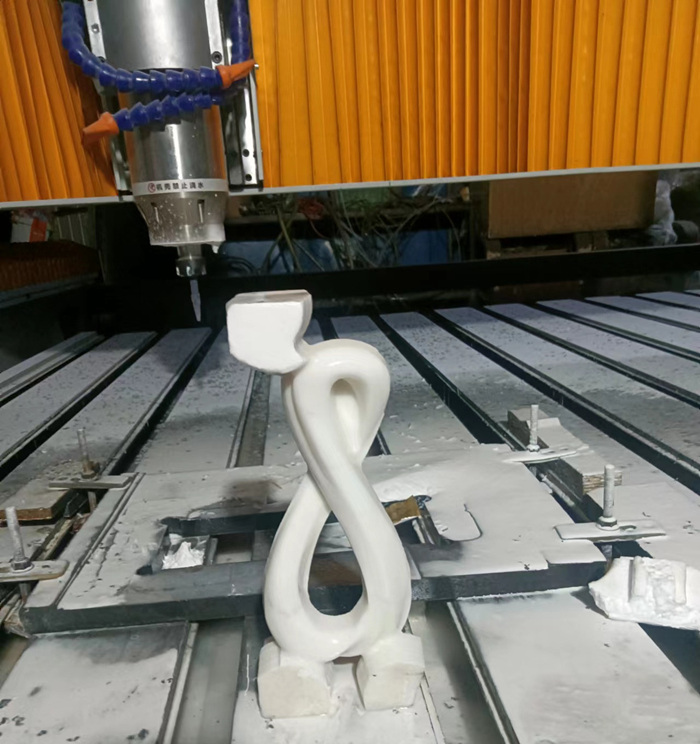

CNC engraving machine for granite, also known as granite carving machine, is a high-performing machine used in the engraving and carving of granite. It is an essential tool for many industries that require accurate carvings on granite materials.
Model: JK-1325
Suitable stone: granite, marble, sandstone, etc
Working size: 1300×2500×400mm(4ft*8ft)
Spindle: 5.5kw water cooling
Motor: Servo motors and drivers
CNC engraving machine for granite can be used on various types of granite materials, including black granite, pink granite, white granite, and gray granite. It can also be used on other types of stones, such as marble and limestone.
Advantages of CNC engraving machine for granite:
1. Seamless Carving: The machine offers seamless and precise carving on granite materials. Its high-precision cutting system ensures a smooth and accurate carving process.
2. High-Speed Operation: The machine operates at a very high speed, enabling quick and efficient engraving. It helps save time and increases productivity.
3. Easy to Use: The machine is user-friendly, making it easy for even beginners to use. It has simple controls and an intuitive interface that allows for a hassle-free operation.
4. Durable: The machine is made of high-quality materials, making it long-lasting and durable. It can withstand wear and tear, ensuring that the machine lasts for a long time.
Technical parameters of CNC engraving machine for granite:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x400mm |
2 | Table Size | 2900*1820mm |
3 | X,Y,Z axis Positioning Accurate | ±0.03/300mm |
4 | Table type | T-slot fixture |
5 | Lathe Structure | welded construction |
6 | X, Y Structure | Gear Wheel Transmission,Shaft Linear Bearings |
7 | Z Structure | Ball Screw, shaft Linear Bearing |
8 | Max. Consume power | 6.5Kw |
9 | Max.Speed | 0-20000mm/min |
10 | Max. Working Speed | 0-10000mm/min |
11 | Spindle Power Motor | 5.5kw water cooled spindle |
12 | Spindle Speed | 0-18000RPM |
13 | Motor and driver | Servo motors and drivers |
14 | Working Voltage | 380V,3PH(optional 220V) |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | Weihong control system |
17 | Interface | Computer |
18 | Tools size | 3.175mm-16mm |
19 | Collet | ER32 |
20 | Software | Artcam software |
21 | Running Circumstance | Temperature: 0℃～45℃ |
Relative humidity: 30%～75% | ||
22 | Packing Size | 3100*2050*1900mm |
23 | Net Weight | 1800KG |
24 | Gross Weight | 1900KG |
Application Scope of CNC engraving machine for granite:
The machine is ideal for use in various industries, including the construction industry, the monument industry, and the art industry. It is commonly used for engraving and carving tombstones, statues, and memorials. It is also used for creating intricate designs and patterns on granite countertops, floors, and walls.
In conclusion, CNC engraving machine for granite is a versatile and reliable machine that offers exceptional performance and accuracy in granite engraving and carving. With its numerous benefits, features, and applications, it is an ideal choice for individuals and businesses that require high-quality granite engravings.
