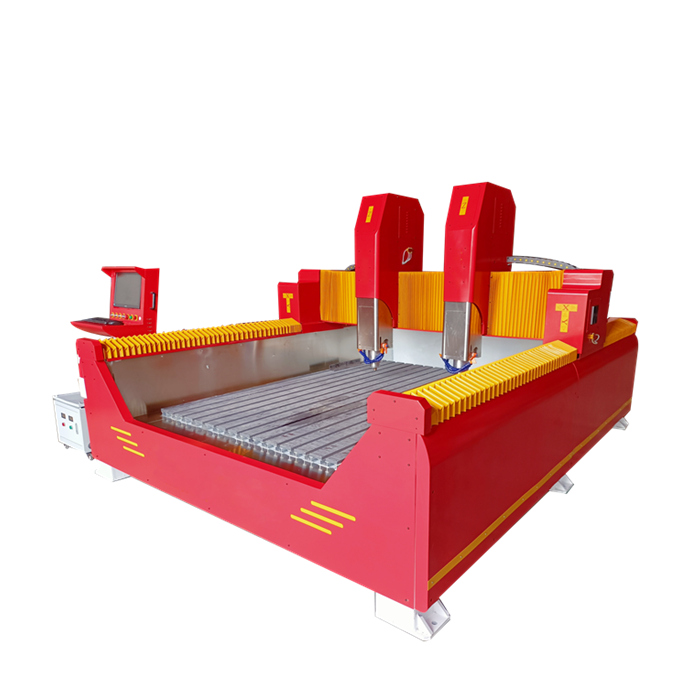

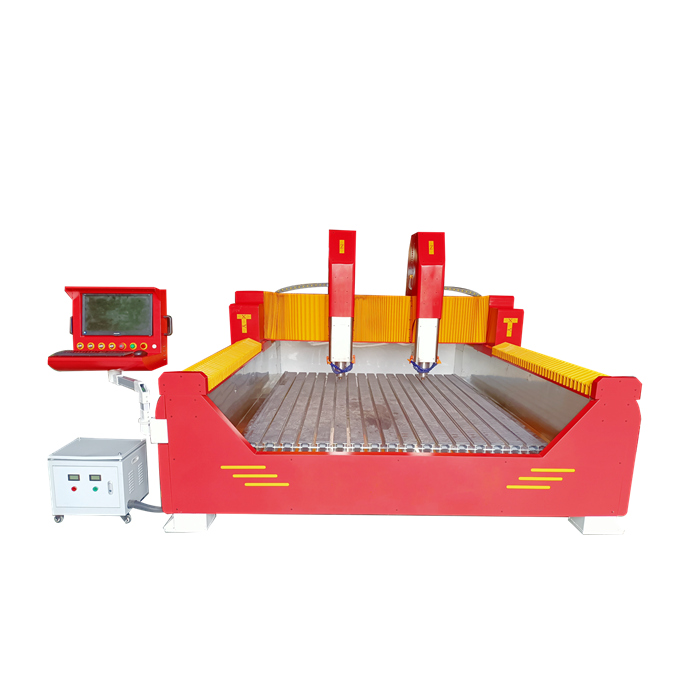

Granite CNC Router

Model : JK-1325
Working size : 1300*2500*300mm
Spindle : 5.5kw*2
Motor : servo

Driver : servo

Transportation: LCL or FCL by sea from Qingdao port

Service: 7×24 hours technical support

Contact Now E-Mail Telephone WhatsApp

Product Details

JK-1325S Granite CNC Router 8ft×4ft working area is used for tombstone carving, garden ornament, constructing outdoors walls, railings, tiles, murals, fireplaces, figure plane carvings, etc.

Technical Parameters of Granite CNC Router:

Description	JK-1325S
X,Y Working Area	13002500mm/6502500mm(single head)
Z Working Area	300mm
Resolution	0.01mm
Lathe Structure	welded steel+SS water tank
X,Y Structure	Rack and pinion transmission
Z Structure	Ball screw driving
Guide way	Linear Square rail
Max. Idling Speed	35m/min
Spindle	HQD 5.5KW*2 made in China
Spindle Rotate Speed	0-24000r/min, variable speed
Inverter	Fuling inverter
Working Voltage	AC380V/50Hz
Working Mode	Servo motors and drivers
Command	G code,HPGL,U00,mmg,plt
Operating System	Shanlong
Diameter of cutter	φ3.175-φ12.7mm
Cooling Mode	Water-cooling
Work-holding	By Clamp

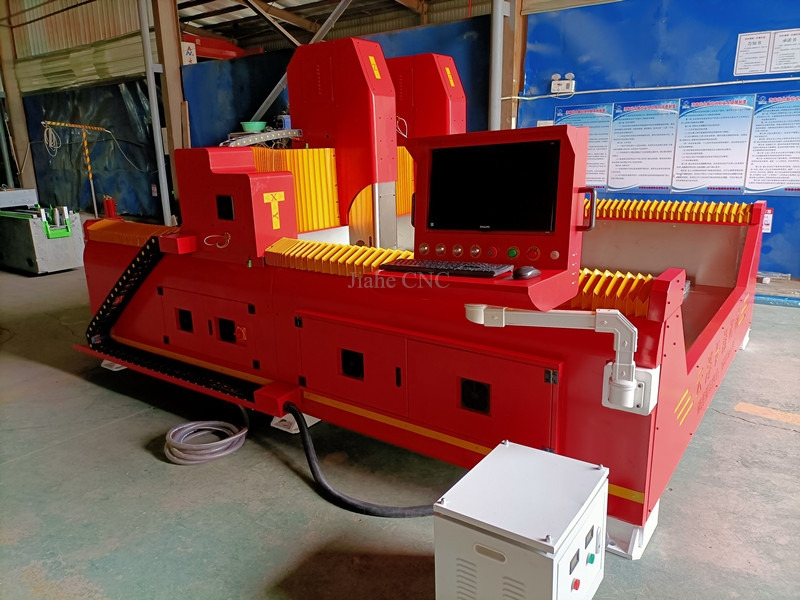

Granite CNC Router

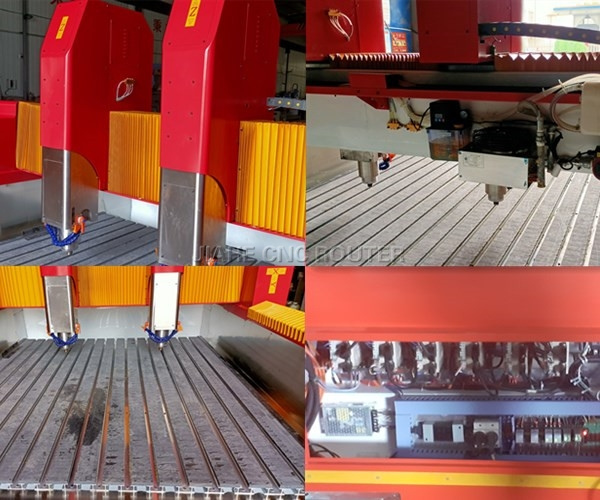

Features of Granite CNC Router:

1. Linear rails on x, y (y axis is controlled by means of cars)and z (ballscrew transmission)axes are used to

assure high accuracy and solid overall performance, and heavy load capacity.

2. Advanced high power water-cooling spindle ought to preserve running at low noise stage, safeguarding balance for long-time operation.

3. Breakpoint memory permit the machine to hold the incomplete work after a piece shift or accidents, which includes machine breaking.

Granite CNC Router

Application of Granite CNC Router:

This granite carving cnc machine is extensively suitable for big hard materials together with marble,granite, synthetic stone,tombstone,ceramic tiles, etc.
