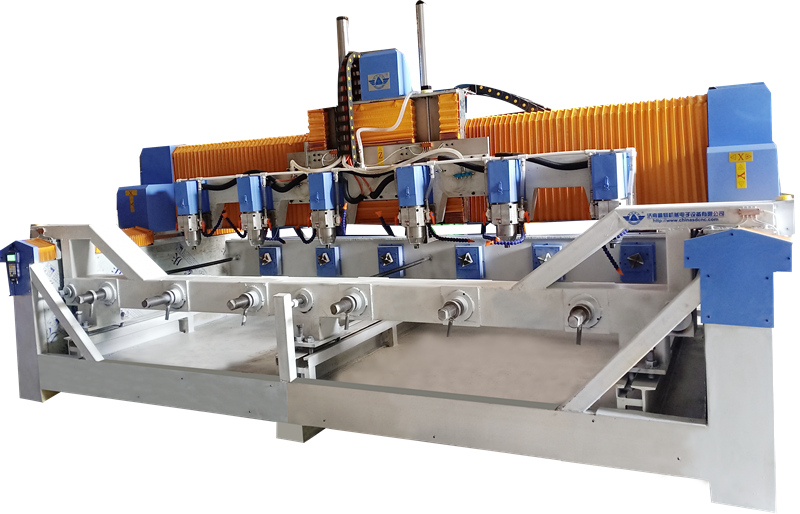

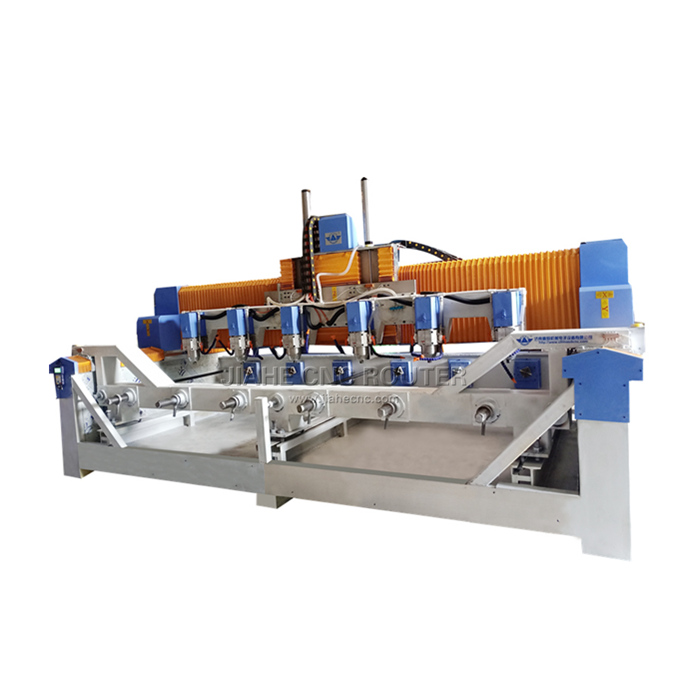

4 Axis CNC Stone Machine For Buddhas Statues And Sculptures
4 axis CNC stone is ideal for use in industries such as construction, interior decoration, and the art industry. High-profile artists and sculptors worldwide can benefit from this machine's exceptional carving capabilities to create intricate sculptures and designs.
Model: JK-3612
Working size: 3600×1200mm
Rotary diameter: 600mm
Spindle numbers: 6

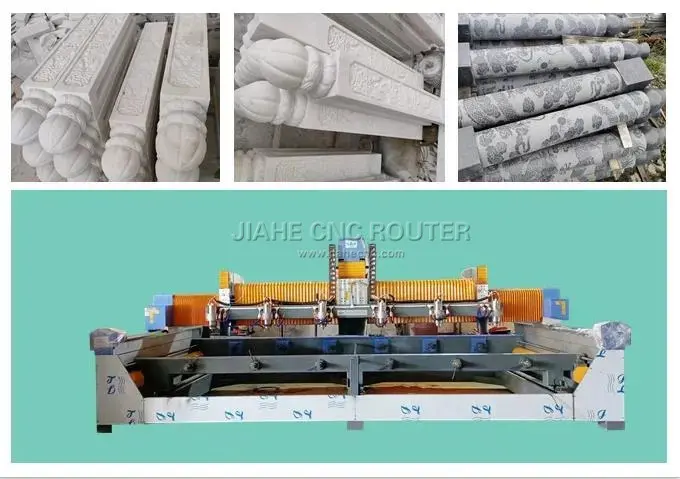

4 axis CNC stone is suitable for a wide range of applications in the stone carving industry, such as creating intricate sculptures, detailed reliefs, and decorative architectural features. It is compatible with various materials such as granite, marble, and other hard stones.
Advantages of 4 axis CNC stone machine for Buddhas Statues and Sculptures:
1. The machine uses advanced technology that enables its six heads to carve a variety of designs accurately in various angles. The six heads operate on a four-axis system, allowing them to move sequentially, creating intricate and detailed patterns in stone surfaces with ease.
2. The machine comes with a high-power spindle that can withstand long hours of heavy operation. The spindle is capable of achieving fast rotation speeds without compromising on accuracy, thus delivering excellent carving output.
3. The machine is designed with user-friendly features and controls, making it easy to operate even for beginners. The machine's intuitive interface enables users to adjust and customize settings to achieve desired carving results.
Technical parameters of 4 axis CNC stone machine for Buddhas Statues and Sculptures:
NO. | Item name | Parameters | |
1 | Working size | Rotary diameter/each head | 600mm |
Rotary length | 1200mm | ||
Z-axis | 600mm | ||
2 | Plane working | Extra working table can be added | 3600*1200mm |
3 | Accuracy | Working accuracy | ±0.1mm |
Repeatability accuracy | ±0.1mm | ||
4 | Structure | Table structure | Channel steel + hard ABS plate |
X/Y/Z-axis structure | X/Y-axis racks, Z-axis ball screws | ||
5 | Speed | Max.travelling speed | 30000mm/min |
Max.working speed | 10000mm/min | ||
6 | Spindle | Power | 5.5KWx6 |
Speed | 24000r/min | ||
7 | Motor | Servo | |
8 | Voltage | AC380V | |
9 | Command | G code, F/S command compatible | |
10 | Controller | DSP 4 axis control system |
In conclusion, 4 axis CNC stone machine for Buddhas Statues and Sculptures is an exceptional product that offers a unique combination of performance, functionality, and user convenience. Its high accuracy, versatility, and flexibility in various angles make it the perfect machine for carving any intricate design on stone surfaces.
