3D CNC Stone Machine With Spindle And Blade

3D CNC stone machine with spindle and blade offers numerous advantages. With its advanced features, the machine allows for greater precision, efficiency, and speed in the fabrication and processing of natural and engineered stone materials.

Model: JK-2213S

Working size:2200*1300mm
Cutting saw diameter: 500/600/800(optional)
Cutting direction: level/vertical/360 degree(optional)
Features: double heads, one head for cutting and the other head for engraving

Contact Now E-Mail Telephone WhatsApp

Product Details

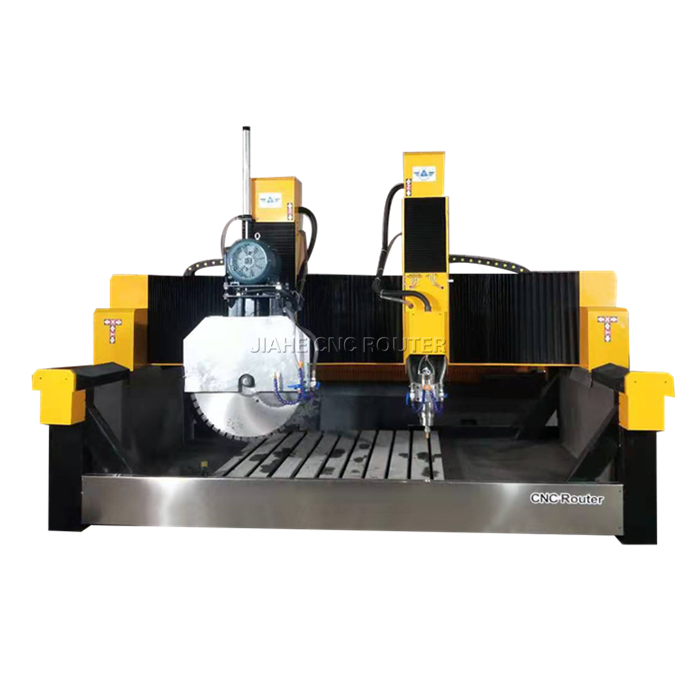

3D CNC stone machine is designed with two heads, one spindle and one saw blade, which is suitable for a wide range of applications, including countertops, flooring, walls, staircases, and more.

Technical parameters of 3D CNC stone machine:

Processing requirements	Function	Carving and cutting
	Structure	Spindle and cutting saw are integrated into a Z axis head, the whole machine is over width and length,so when shipping,the whole spindle head beam need to be disassembled, and the back of the machine also need to be disassembled.
	Stone weight	3 tons
	Material	Granite 12801280600mm
Working size	X axis	2200mm
	Y axis	1300mm
	Z axis	600mm
	Work space size	W3150mmxL1300mmxH600mm
	Spindle passing height	Distance from spindle nose to worktable is 850mm
Table	Table size	3150*1300mm
Table	Table structure	Channel steel structure
Spindle	Type	Frequency electric water cooled spindle
	Speed	0-24000r/min
	Power	7.5kw constant power
	Frequency	400hz
	Tool change type	Manual
	Tools specification	12/16/20mm extended length tools
Saw blade	Function	Cutting
	Blade diameter	800mm
	Saw motor	15KW
Travelling speed	Linear cutting feed	2000mm/min
	Linear rapid feed	5000mm/min
	Linear engraving feed	3000mm/min
Motors	X axis	1.5KW/10Nm servo motors*1set
	Y axis	1.5KW/10Nm servo motors*2sets
	Z axis	2.3KW/15Nm servo motors*1set(with brake)
Machine Voltage		380V 60hz
Total power		31.5kw
Dimensions	Overall dimensions	3722Wx2600Lx2800mmH
Weight	Machine weight	3000kg

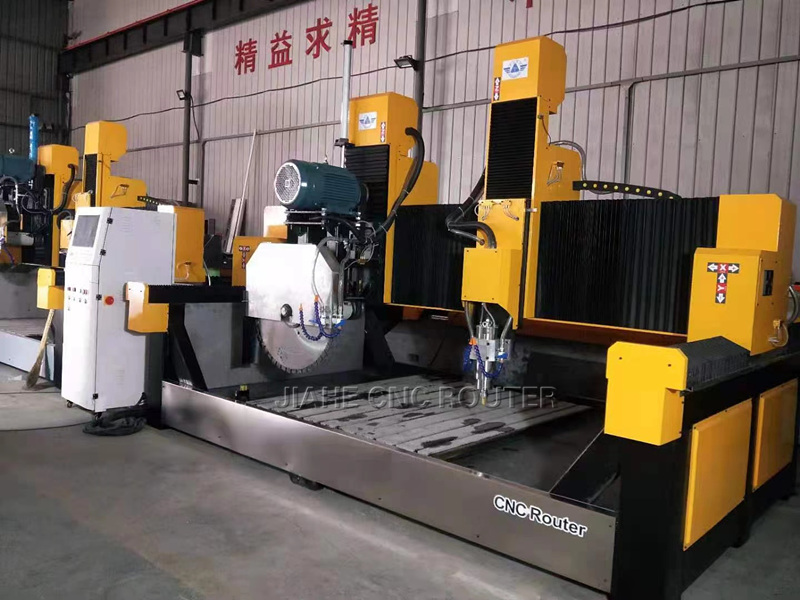

3D CNC Stone Machine

Application of 3D CNC stone machine:

The machine is widely used in industries such as construction, architecture, interior design, and landscaping. The machine can process a variety of materials, including granite, marble, quartz, and others.

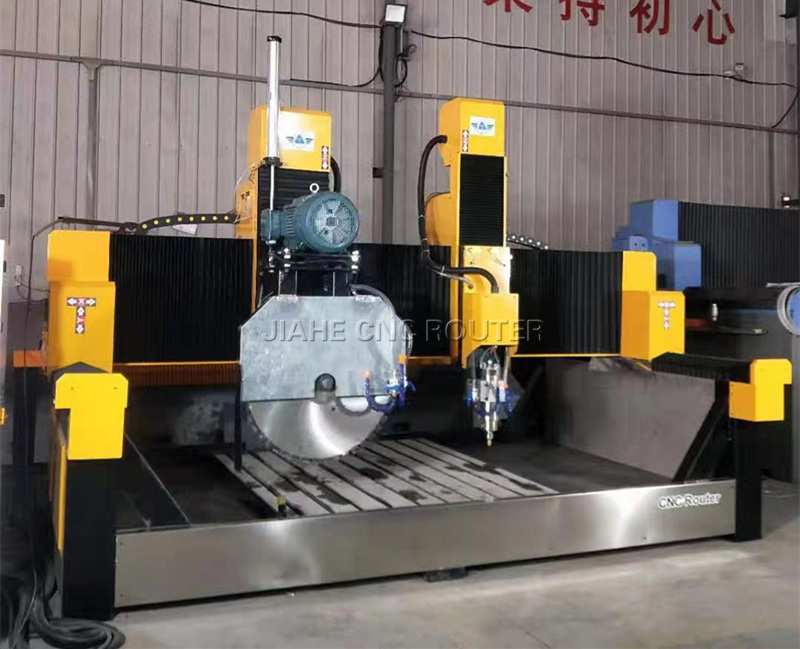

3D CNC Stone Machine

3D CNC stone machine is designed with user-friendly features that make it easy to operate and maintain. It also comes with advanced software that allows for the creation of custom designs, making it particularly useful for bespoke projects.

The CNC stone machine with spindle and saw blade is a highly advanced tool that offers numerous benefits in terms of precision, speed, and efficiency. It is ideal for a wide range of applications and can be used in various industries, making it a must-have tool for anyone looking to improve their stone cutting capabilities.
