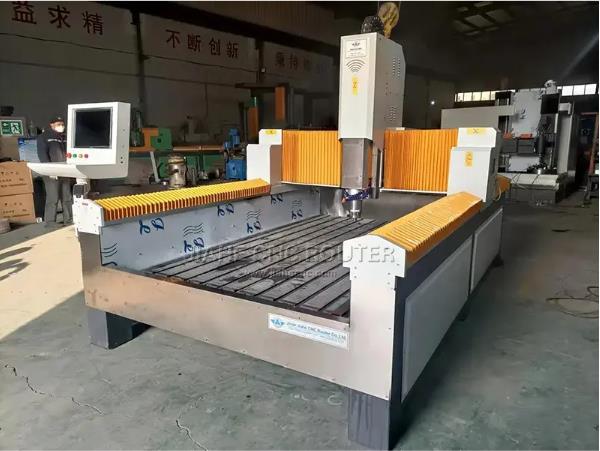

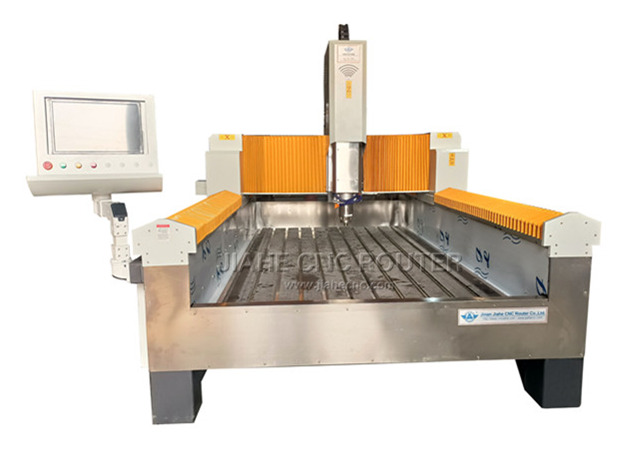

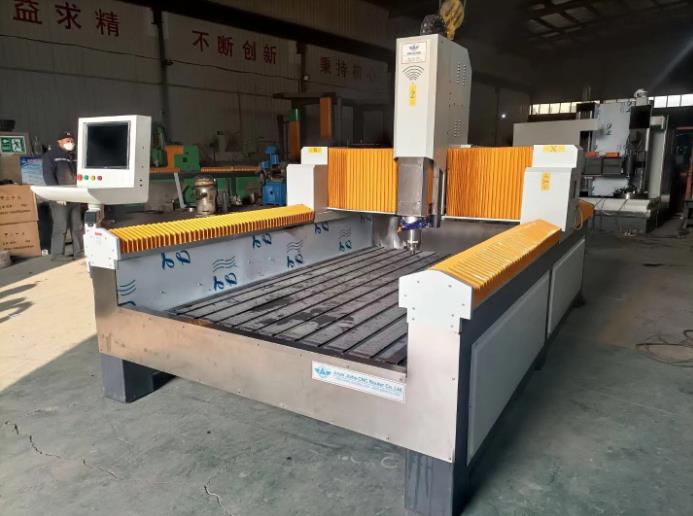

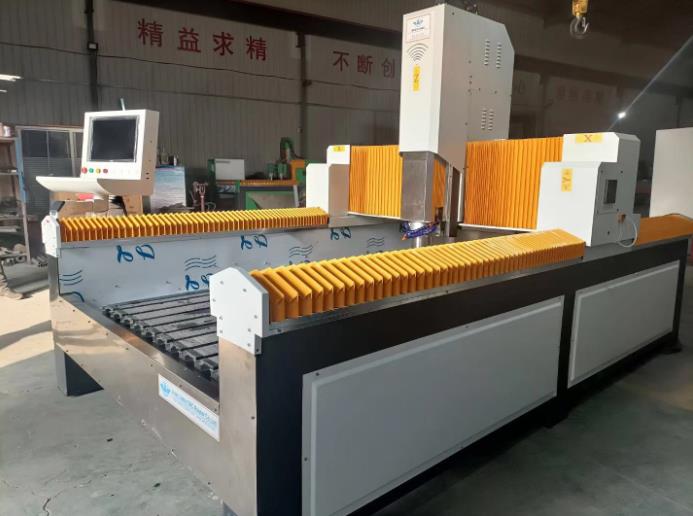

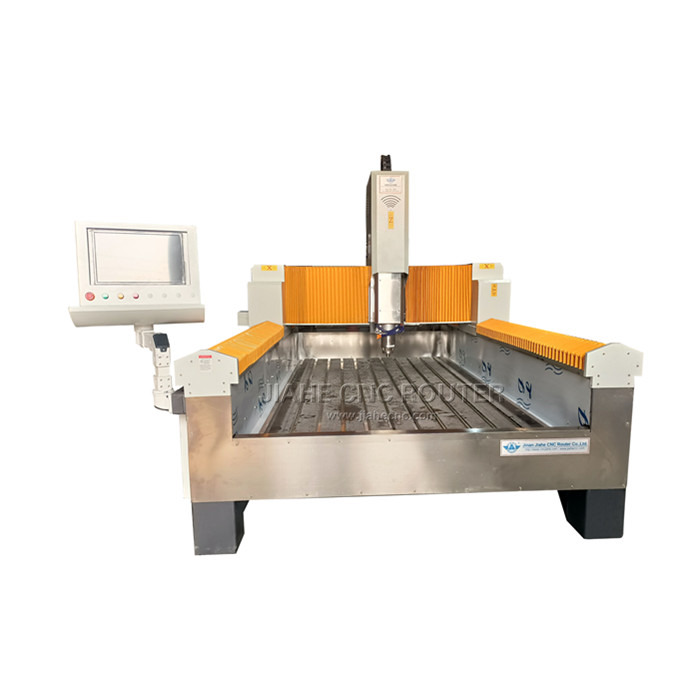

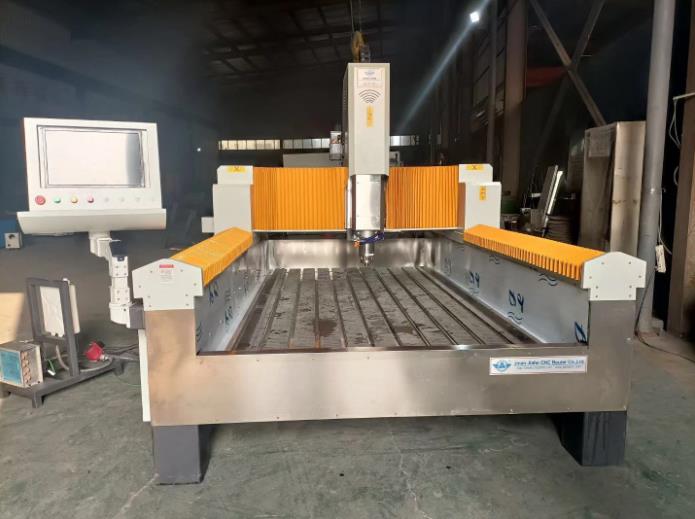

3D CNC Router For Stone
3D CNC router is equipped with advanced CNC technology, which enables the carving head to move with greater precision and accuracy. The machine is designed to be user-friendly and is operated by a computer program which can be easily customized to meet the specific needs of any project.
Model: JK-1325
Suitable stone: granite, marble, sandstone, etc
Working size: 1300×2500×400mm(4ft*8ft)
Spindle: 5.5kw water cooling
Motor: Servo motors and drivers
3D CNC Router on the market can work on marble, granite, sandstone etc stone to engrave monuments, tombstones, 2nd letters, three-D alleviation, enhance walls, railings, etc.
Technical parameters of 3D CNC router:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x400mm |
2 | Table Size | 2900*1820mm |
3 | X,Y,Z axis Positioning Accurate | ±0.03/300mm |
4 | Table type | T-slot fixture |
5 | Lathe Structure | welded construction |
6 | X, Y Structure | Gear Wheel Transmission,Shaft Linear Bearings |
7 | Z Structure | Ball Screw, shaft Linear Bearing |
8 | Max. Consume power | 6.5Kw |
9 | Max.Speed | 0-20000mm/min |
10 | Max. Working Speed | 0-10000mm/min |
11 | Spindle Power Motor | 5.5kw water cooled spindle |
12 | Spindle Speed | 0-18000RPM |
13 | Motor and driver | Servo motors and drivers |
14 | Working Voltage | 380V,3PH(optional 220V) |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | Weihong control system |
17 | Interface | Computer |
18 | Tools size | 3.175mm-16mm |
19 | Collet | ER32 |
20 | Software | Artcam software |
21 | Running Circumstance | Temperature: 0℃～45℃ |
Relative humidity: 30%～75% | ||
22 | Packing Size | 3100*2050*1900mm |
23 | Net Weight | 1800KG |
24 | Gross Weight | 1900KG |
Features of 3D CNC router:

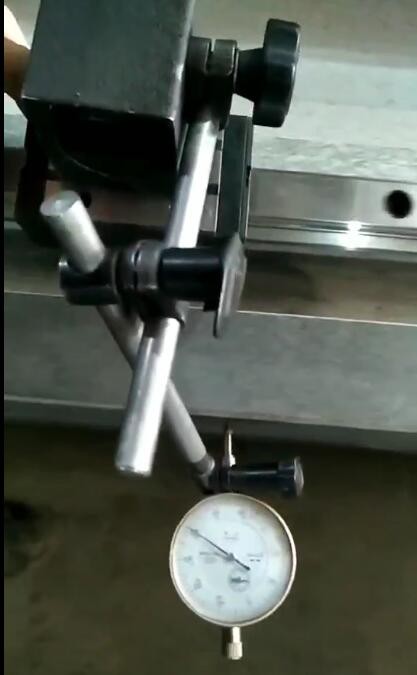

1.Linear rails on X, Y (Y axis is controlled by two motors)and Z (ballscrew transmission)axes are used to guarantee high accuracy and stable performance, and support heavy weight. The square sliding blocks are of good dust-proof effect. Each of our equipment will be metered when installing the guide rail to ensure high precision.

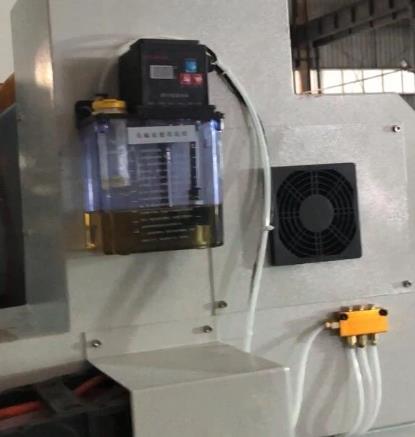

2. Automatic oil feeding and lubricating system makes the regular maintenance very easy.
JIAHE has 15 years of producing revel in on Stone CNC Routers. Recent years, the stone enterprise is continuously developing, and the desires of clients are continuously changing. In the yr 2022, we've designed many new fashions to fulfill the desires of the market, with lovely appearance, top configuration, affordable rate and really excessive price performance.
Advantages of 3D CNC router better than normal machines:

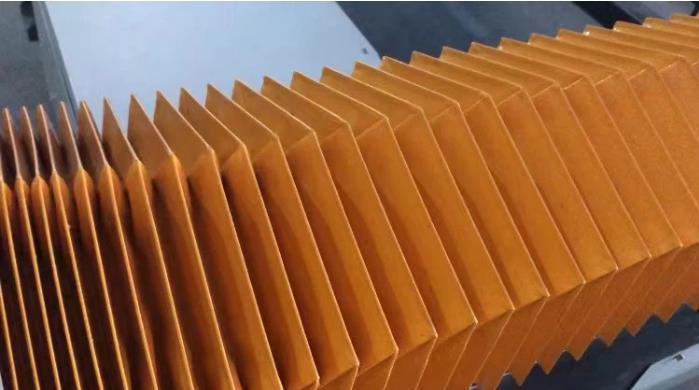

Dust cloth design
The dustproof material of JIAHE 3-d CNC router adopts triangle design. The characteristic of this shape is that water flows down easily, stopping water retention.

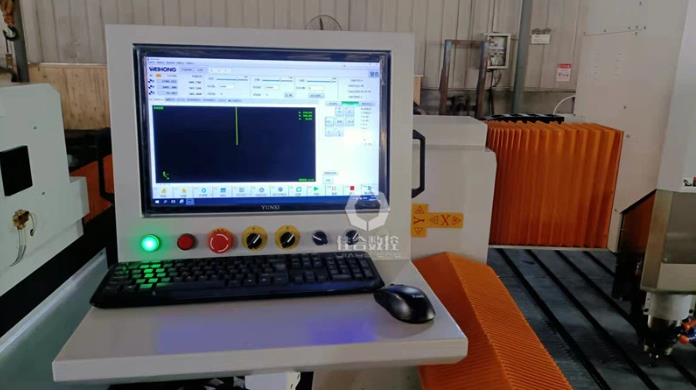

2. Intelligent operation console
Weihong control system, 19-inch large LCD monitor.

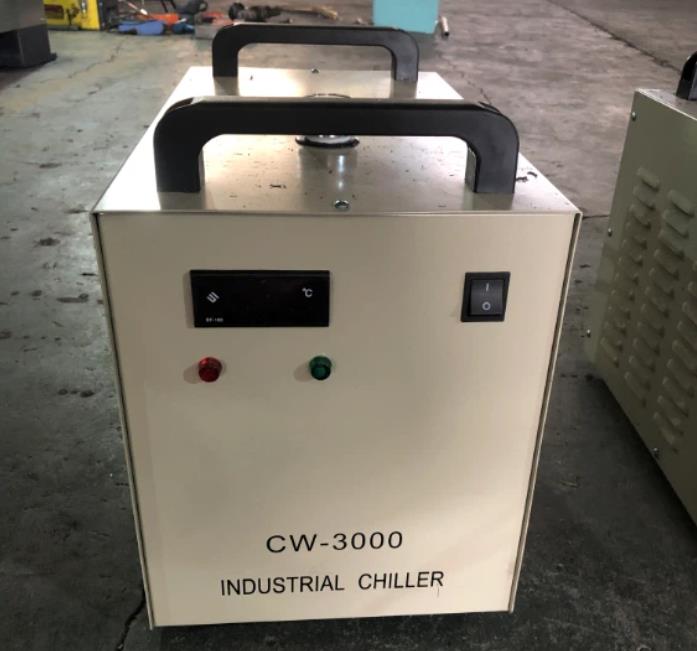

3. Water chiller for cooling spindles
JIAHE 3D CNC router supplies Water Chiller CW3000 for cooling spindles. The cooling effect of the chiller is much better than that of the ordinary water pump, especially for countries and regions with relatively high temperatures.
Applicable Industries:
3D CNC router for stone is suitable for various application industries such as stone processing plants, architectural decoration, tombstone and gravestone industry, art and craft industry, and so on. It can work on various types of stones such as marble, granite, sandstone, limestone, and more.
Material Compatibility:
The machine can work on various kinds of stone materials, tailored to the specific needs of each individual project. This includes soft stones like limestone, sandstone, and soapstone, as well as harder stones like marble, granite, and slate.
Overall, the 3D CNC router offers numerous benefits over manual carving methods, including increased productivity and accuracy, reduced labor costs, and the ability to create intricate and complex designs with ease. With its powerful cutting ability and compatibility with a wide range of stones, it is an essential tool for professionals in the stone industry.
