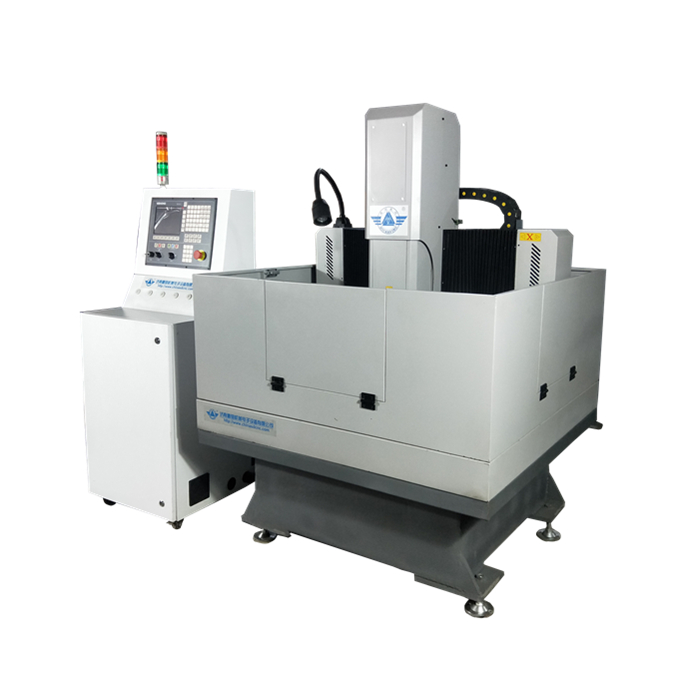

CNC Router For Metal Engraving

Model: JK-4040

Working size: 400*400mm
Spindle: 3.2kw 24000rpm water cooled
Motor: servo
Control: Weihong NK260 system

Contact Now E-Mail Telephone WhatsApp

Product Details

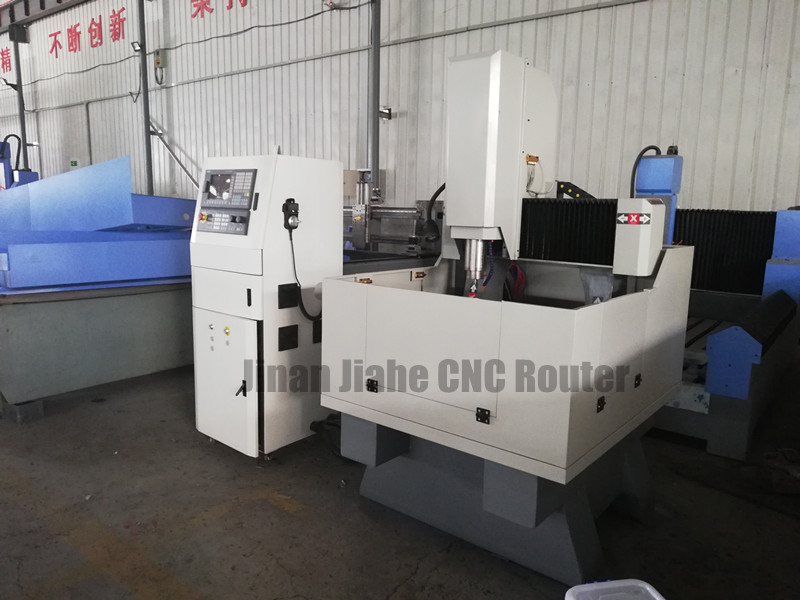

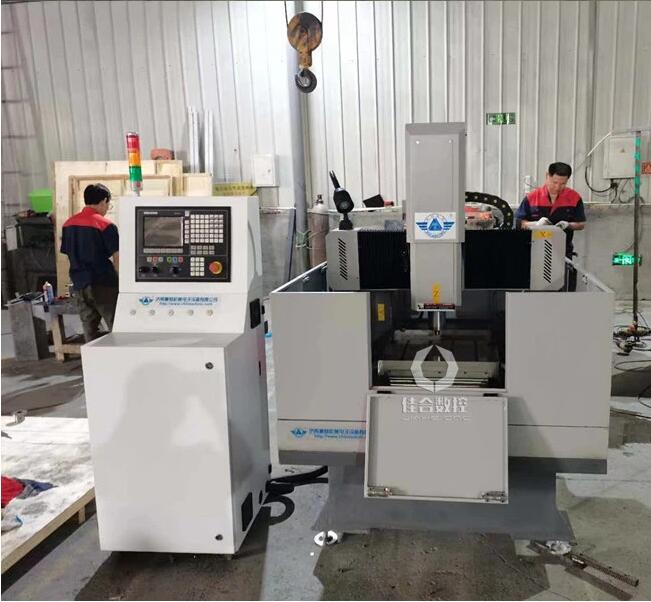

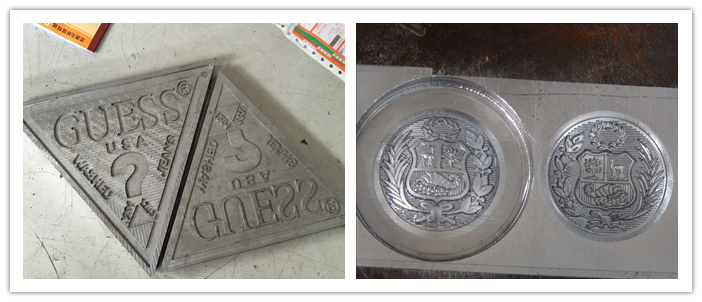

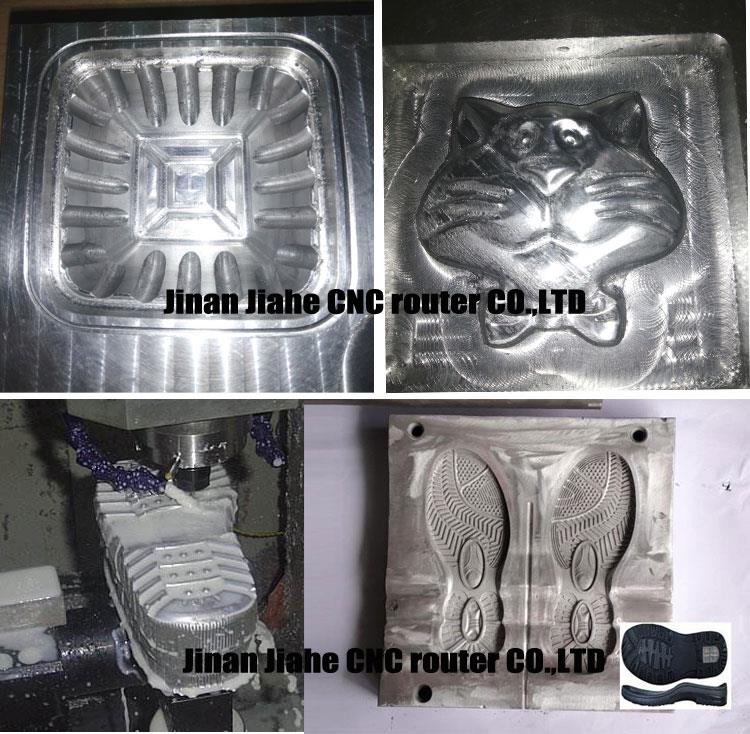

CNC router for metal engraving JK-4040 with operating size 400*400mm, heavy structure, 3.2kw water cooled spindle, Weihong controller, Taiwan HIWIN rectangular linear rails and high precision ball screws, which is very suitable for engraving letters, designs and milling molds on various types of metal material, for example, iron,steel,copper,aluminum, gold, and so on.

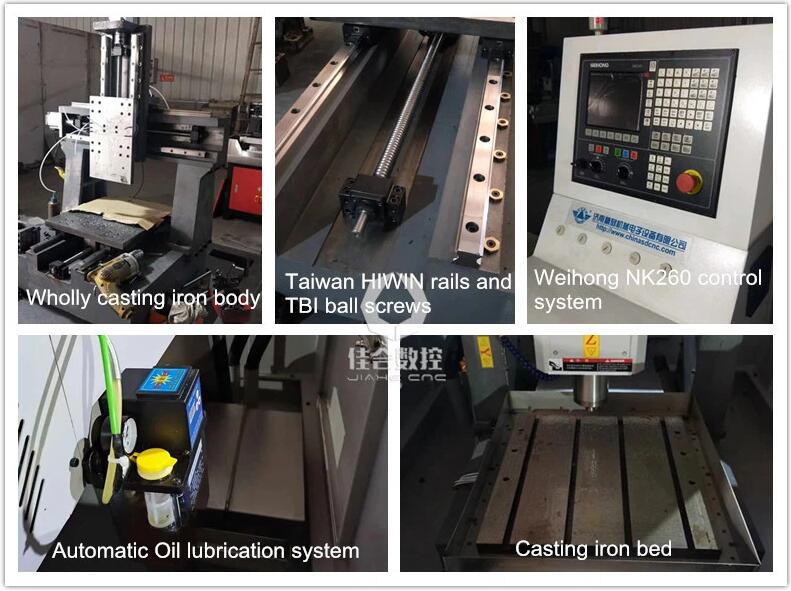

Main features of CNC router for metal engraving:

1.Wholly casting iron frame to make certain the good accuracy and stability.

2.x y z uses 25mm HIWIN linear rectangular rails.

3.z axis use 25mm TBI high precision ball screw and may keep away from spindle all of sudden up and down.

CNC Router For Metal Engraving

Technical parameters:

Model	JK-4040
Machine body	Cast iron
Working area(XYZ axis)	400400200mm
X Y Z rail	Taiwan HIWIN/PMI linear square guide rail
X Y Z transmission	Taiwan TBI High precision ball screw
Spindle	3.2kw 24000rpm water cooled spindle motor
Inverter	3.7KW Fuling inverter
Motor	Japan Panasonic servo motor
Driver	Japan Panasonic servo driver
Auto Lubrication system	With
Max. speed	15m/min
Max. working speed	6-8m/min
Voltage	AC 440V 60HZ
Electricity	40-60amp
Collets	ER20 3.175-12.7mm
Repeat reposition accuracy	0.01mm
Spindle Cooling	Water cooling
Cutting cooling system	Oil cooling
Command	G code
Software	Artcam
Control system	Weihong NK260 system
Tool sensor	Auto tool sensor
Package size	180012001900mm
Gross weight/Net weight	1300kgs
