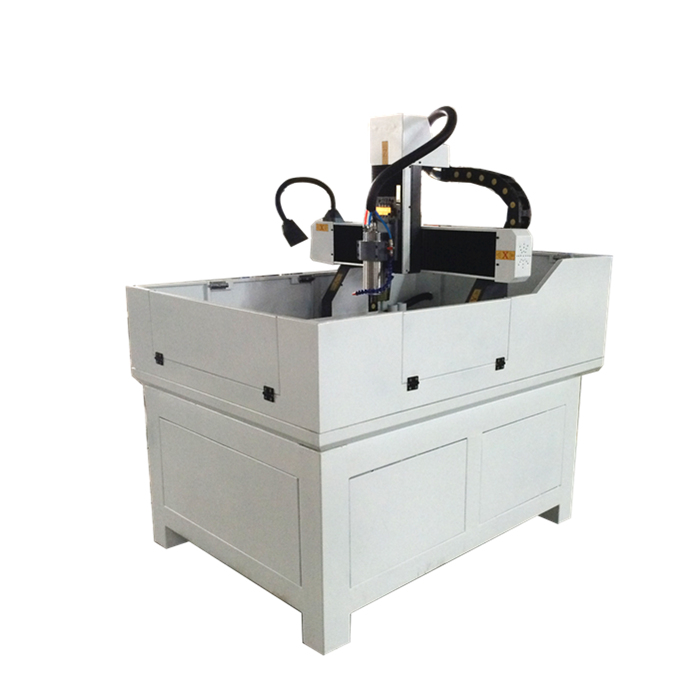

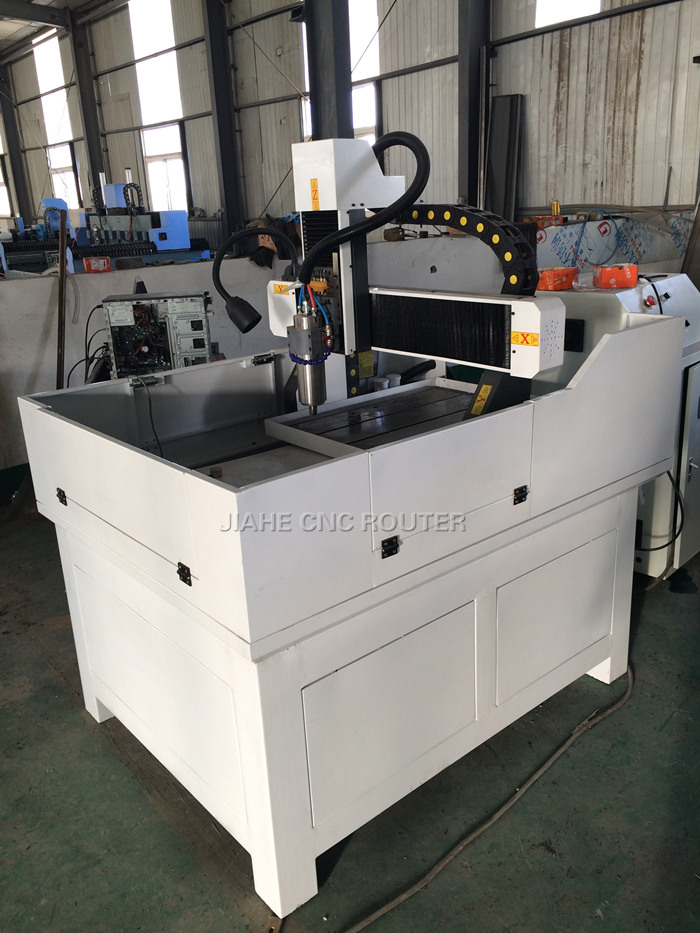

Hobby CNC Machine For Metal

Hobby CNC machine for metal is an essential machine for any metalworking professional or hobbyist. With its versatility, precision, efficiency, and advanced features, the machine is perfect for engraving all types of metal materials and creating a wide range of custom designs.

Model: JK-6060

Working size: 600×600mm

Spindle: 2.2kw water cooled

Contact Now E-Mail Telephone WhatsApp

Product Details

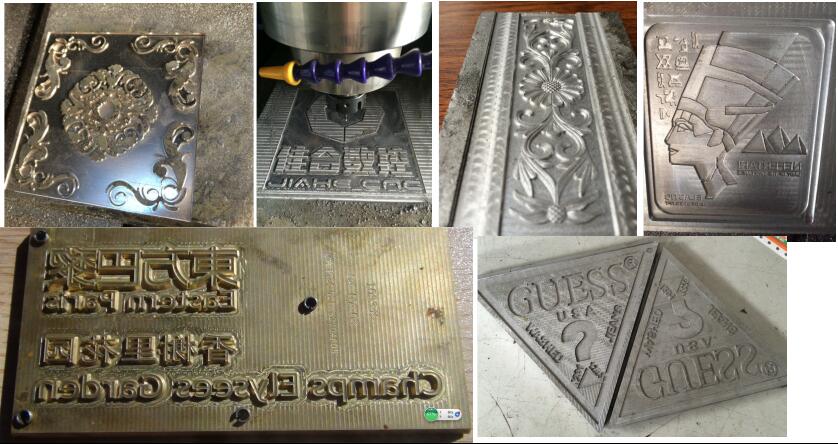

Hobby CNC machine for metal can work with a wide range of metals, including steel, aluminum, brass, copper, and more. This makes them ideal for use in various applications and industries, such as automotive, aerospace, advertising, and jewelry-making.

Technical parameters of hobby CNC machine for metal:

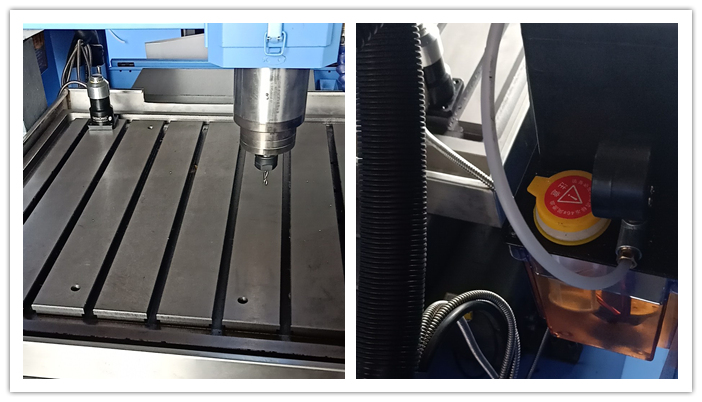

Machine body	Cast iron
Working area(XYZ axis)	600600200mm
Moving type	Table moving
X Y Z rail	Taiwan HIWIN/PMI 20mm linear square guide rail
X Y Z transmission	Taiwan High precision TBI 20mm ball screw
Spindle	2.2kw AC380V/AC220V water cooled spindle
Spindle speed	24000rpm
Inverter	2.2KW inverter
Motor	Servo motor(option: stepper motor)
Driver	Servo driver(option: stepper driver)
Auto Lubrication system	With
Electrical protection filters	With
Max. speed	15m/min
Max. working speed	8m/min
Voltage	AC380V three phase or AC220V
Collets	ER20 3.175-12.7mm
Repeat reposition accuracy	0.01mm
Cover	X Y Z cover
Y axis	TELESCOPICA PROTECTION STAINLESS METAL
Command	G code
Software	Artcam/ Ucancam

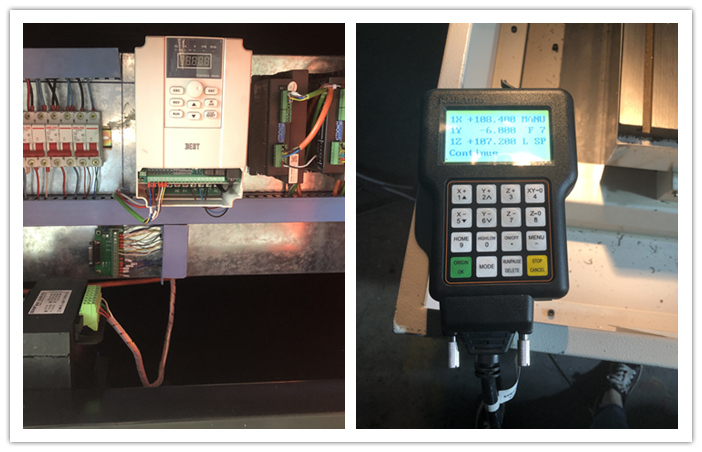

Control system	DSP wireless remote control
