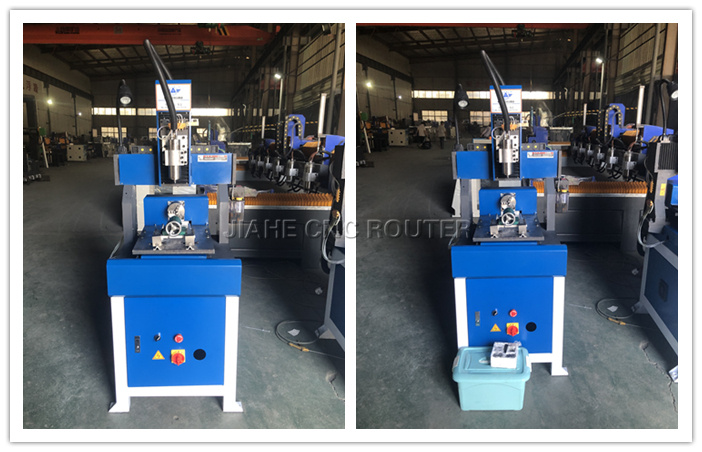

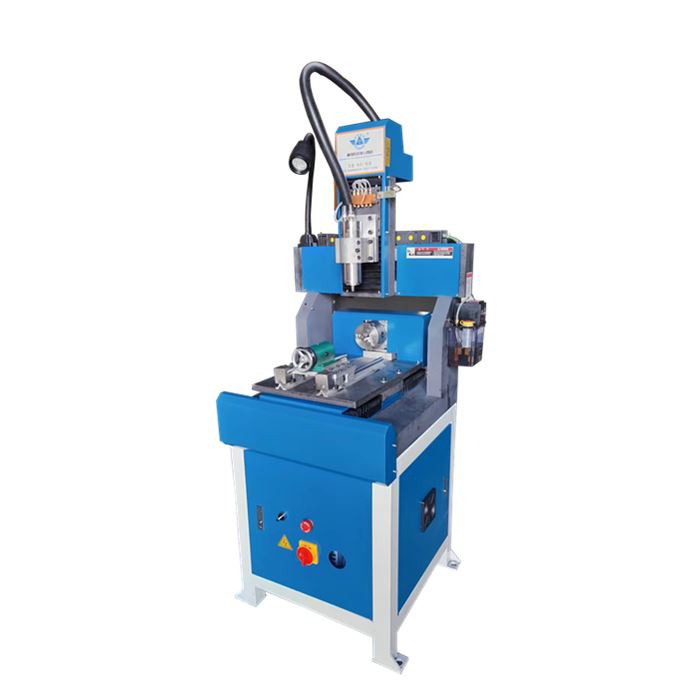

Rotary Engraving Machine

Rotary engraving machine is a specialized machine used in the engraving and cutting industry. The machine has various unique features and advantages that make it suitable for specific applications.

Rotary diameter: 100mm
2.2kw water cooled spindle motor
DSP control system
Leadshine hybrid servo motors and drivers

Contact Now E-Mail Telephone WhatsApp

Product Details

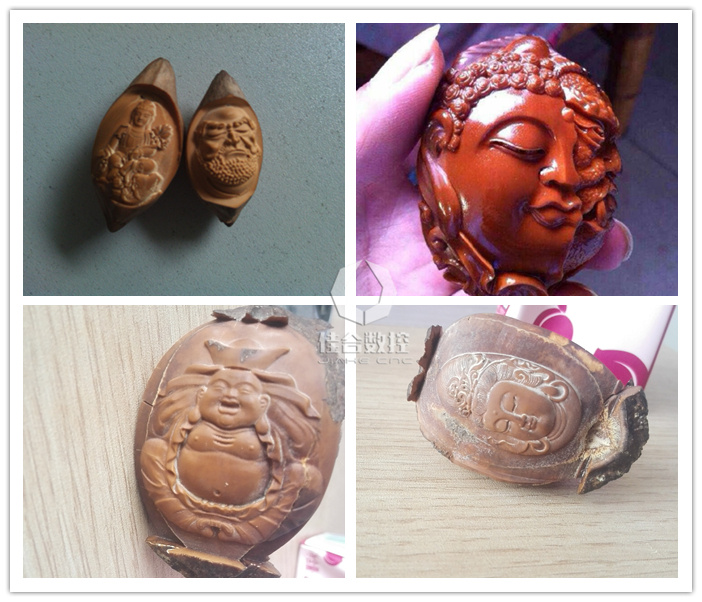

Rotary engraving machine is suitable for various industries, including construction, automotive, jewelry, and textile. The machine is ideal for engraving and cutting cylindrical objects such as pipes, rods, and bottles.

Features of rotary engraving machine:

1. 360-degree rotation: This machine can rotate 360 degrees, making it suitable for engraving and cutting cylindrical objects and materials.

2. Versatility: The machine can engrave different materials, including wood, metal, plastic, and glass, making it suitable for various applications.

3. High productivity: The machine can engrave and cut materials at high speed, making it ideal for large volume production.

Rotary Engraving Machine

Technical parameters of rotary engraving machine:

Machine body	Cast iron

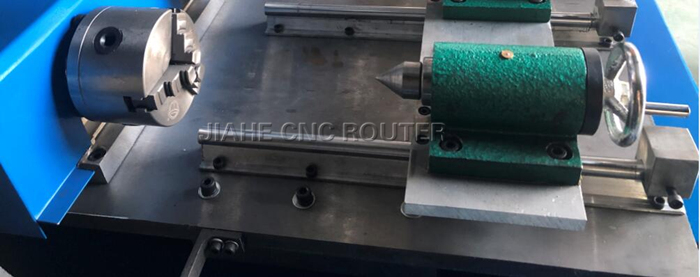

Rotary diameter	100mm
Rotary length	200mm
X Y Z rail	Taiwan HIWIN/PMI linear square guide rail
X Y Z transmission	Taiwan TBI High precision ball screw

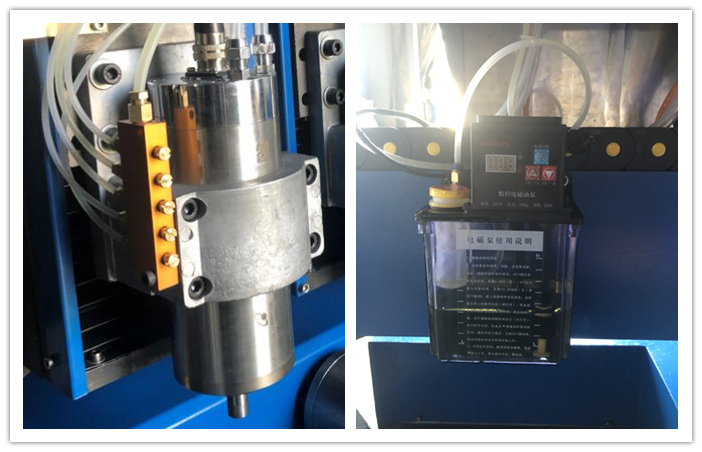

Spindle	2.2kw 24000rpm water cooled spindle motor
Frequency Inverter	2.2KW inverter
Driving Motor	Hybrid servo motor
Motor driver	Hybrid servo driver
Auto Lubrication system	With
Max. speed	15m/min
Max. working speed	6-8m/min
Voltage	AC 220V/ 50-60HZ
Collets	ER20 3.175-12.7mm
Machine precision	0.02mm
Repeat reposition accuracy	0.01mm
Command	G code
Software	Artcam

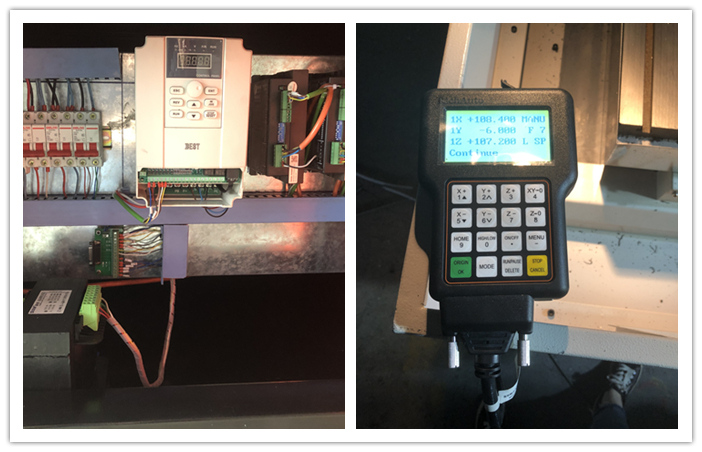

Control system	DSP control system
