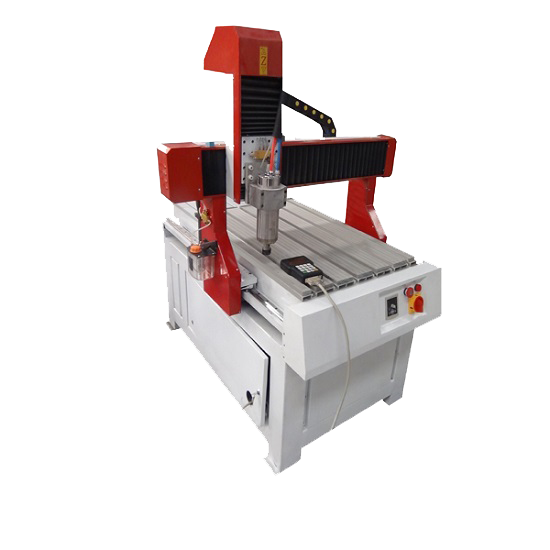

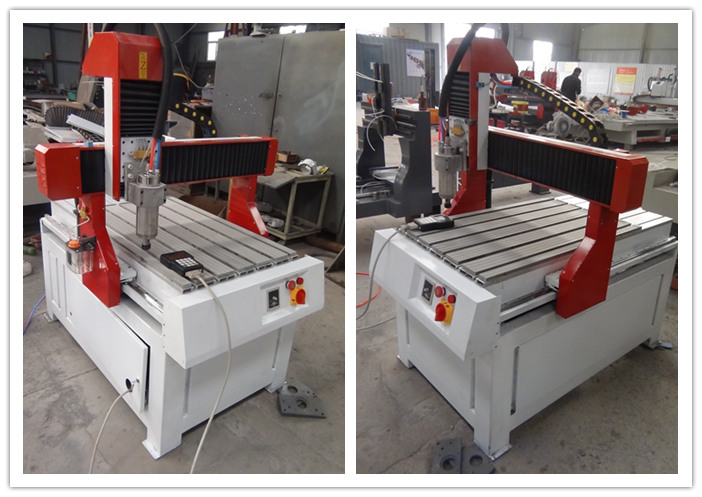

Small CNC Machine For Wood
Small CNC machine for wood is a highly powerful machine that offers numerous benefits to carpenters, DIYers, and woodworkers alike. Its ability to work with a variety of materials make it the perfect tool for creating intricate designs, patterns, and shapes on a range of different wooden products.
Model: JK-6090
Spindle: 2.2kw water cooled
Motor: stepper
Control system: DSP
Small CNC machine for wood comes equipped with a powerful 2.2kW water-cooled spindle motor and DSP control system, allowing for precise and efficient carving. The machine can accommodate a wide variety of materials, including solid wood, MDF, PVC, acrylic, and more.
Technical parameters of Small CNC machine for wood:
1 | X,Y,Z Working Area | 600x900x200mm |
2 | Table Size | 600X900mm |
3 | X,Y,Z Traveling Accuracy | ±0.03/200mm |
4 | X,Y,Z repositioning Accuracy | ±0.02mm |
5 | Table Surface | Aluminum |
6 | Frame | cast iron |
7 | X, Z Structure | Ball Screw |
8 | Y Structure | Hiwin Rail Linear Bearings or Ball Screw |
9 | Max. power Consumption | 0.8Kw |
10 | Max.Rapid Travel Rate | 8000mm/min |
11 | Max.Working Speed | 6000mm/min |
12 | Spindle Power Motor | 1.5Kw water cooling spindle |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Stepper system |
15 | Working Voltage | AC220V/50/60Hz/AC380V 50HZ |
16 | Command Language | G code |
17 | Operating System | DSP System |
18 | Software Compatibility | Type3/ARTCAM/UCANCAM/ARTCUT ect software |
19 | Running Environment | Temperature: 045 Relative humidity: 30%75% |
20 | Packing Size | 1350 x 1050 x 950mm |
21 | Net Weight | 230KG |
22 | Gross Weight | 270KG |
Application Scope:
Small CNC machine for wood is ideal for a variety of industries, including woodworking, furniture manufacturing, and advertising. It is great for carving intricate designs on wooden products, such as doors, cabinets, and chairs, as well as creating custom signs and logos for businesses.
Application Materials:
Small CNC machine for wood can work with a multitude of materials, including solid wood, MDF, PVC, acrylic, and more. This makes it the perfect tool for a wide variety of woodworking and advertising applications.
