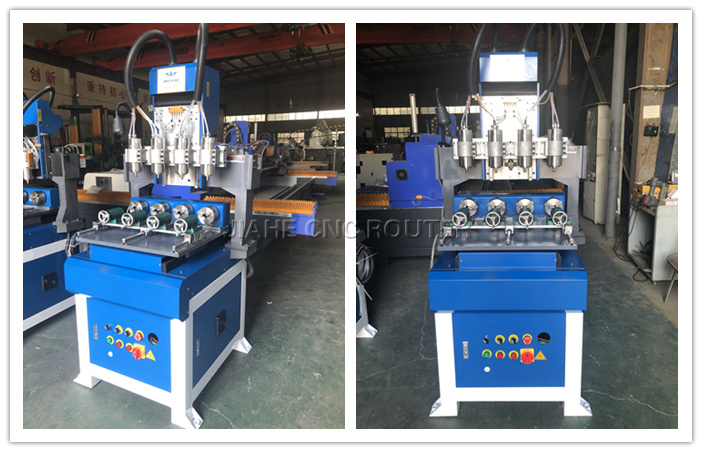

Small 4 Axis CNC Router

Small 4 axis CNC router is a precision cutting and engraving tool that is ideal for various domestic and industrial applications.

Working size: D100mm*L200mm
Spindle: 2.2kw*4 water cooled
Control system: Richauto DSP
Motor: Hybrid servo motors and drivers

Contact Now E-Mail Telephone WhatsApp

Product Details

Small 4 axis CNC router is a high-precision, versatile cutting and engraving tool that is suitable for various industrial applications. Its compact design, ease of use, and fast processing speeds make it a must-have tool for any craftsman or hobbyist looking to create intricate designs on various materials.

Small 4 Axis CNC Router

Technical parameters of small 4 axis CNC router:

Machine body	Cast iron

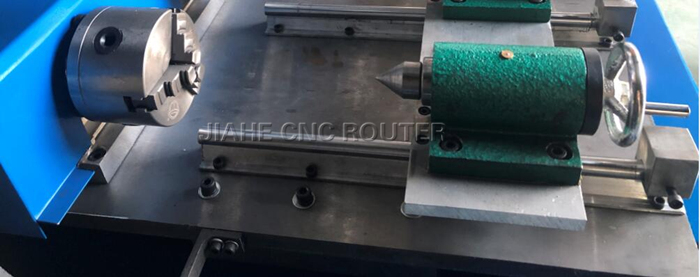

Rotary diameter	100mm
Rotary length	200mm
X Y Z rail	Taiwan HIWIN/PMI linear square guide rail
X Y Z transmission	Taiwan TBI High precision ball screw

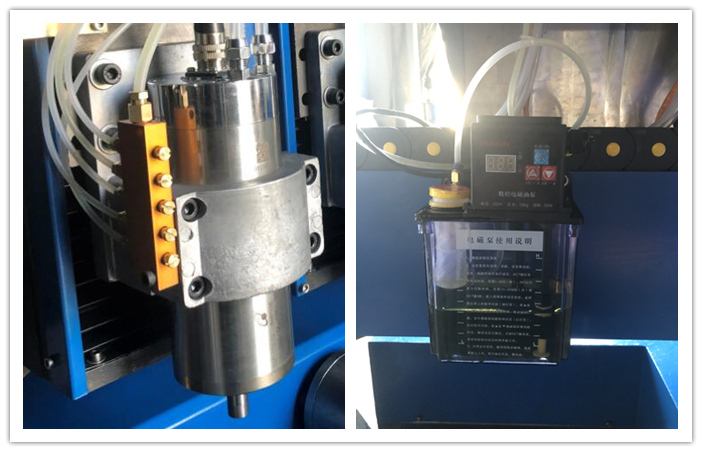

Spindle	2.2kw*4 24000rpm water cooled spindle motor
Frequency Inverter	2.2KW*4 inverter
Driving Motor	Hybrid servo motor
Motor driver	Hybrid servo driver
Auto Lubrication system	With
Max. speed	15m/min
Max. working speed	6-8m/min
Voltage	AC 220V/ 50-60HZ
Collets	ER20 3.175-12.7mm
Machine precision	0.02mm
Repeat reposition accuracy	0.01mm
Command	G code
Software	Artcam

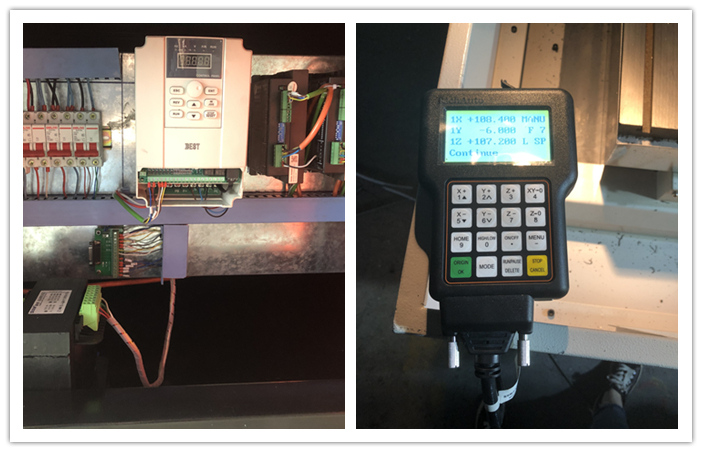

Control system	DSP control system
