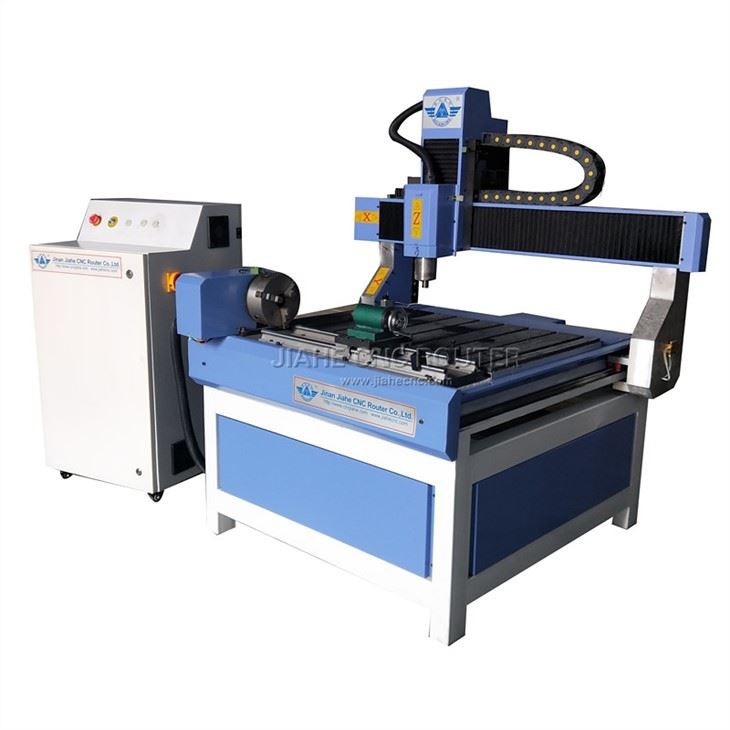

4 Axis CNC Router For Wood Carving
4 axis CNC router for wood carving is efficient in carving intricate designs into wood. It can carve a range of materials, including woods, plastics, and soft metals.
Model : JK-6090
Working size : 600*900mm
control system : Ncstudio
Motor : stepper
driver : stepper
Spindle : 2.2kw
4 axis CNC router for wood carving is ideal for individuals or businesses involved in the woodworking industry. The machine with working area 2 feet by 3 feet, which can be used for small carvings like decorations, phone cases, and small statue designs.
Features of 4 axis CNC router for wood carving:
1. Computer control the machine, with NC studio 4 axis controlling system.
2. High rigidity and stability with steel machine body.
3. High- quality motor, drive and inverter make the mini cnc router work well.
4. Taiwan Hinwin square rail, life longer.
Parameters of 4 axis CNC router for wood carving:
| Description | Parameter | Remarks |
| X,Y,Z working area | 600*900*200mm | Z optional |
| X,Y,Z Repositioning accuracy | ±0.05mm | |
| X,Y,Z Traveling accuracy | ±0.03/200mm | |
| Max rapid traveling speed | 8000mm/min | |
| Max working speed | 6000mm/min | according to the material |
| Working voltage | 220V/50/60Hz | |
| X,Y,Z Structure | Ball Screw 2510; Taiwan HIWIN guide rail | |
| Machine body | Cast iron | |
| Motor | Stepper system | Servo motor(optional) |
| Drive | Leadshine 860 | |
| Inverter | 2.2kw | |
| Spindle | Water-cooling | |
| Spindle power | 2.2kw | |
| Spindle speed | 6000-24000RPM | |
| Operating system | Ncstudio system | DSP system |
| Table surface | Aluminum T slot | |
| Fixing method | By clamps | |
| Command language | G code | |
| Computer interface | USB | |
| Flash memory | 128M(U disk) | |
| Collet | ER11 | |
| X,Y Resolution | 0.02mm | |
| Software compatibility | Type3/Artcam/Artcut/Ucancam/JDpaint etc | |
| Running environment | 0~45 centigrade | |
| Relative humidity | 30%~75% | |
| Rotary | Diameter 150mm,processing length 400mm | |

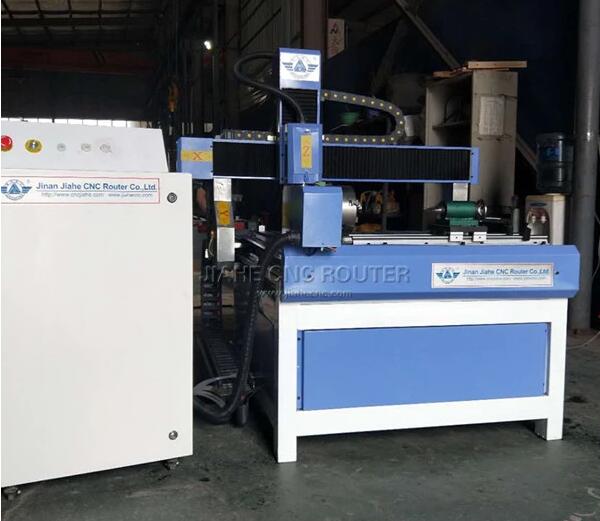

Pictures of 4 axis CNC router for wood carving:
Engraving samples:
4 axis CNC router for wood carving has a wide range of application, such as advertising field, seal field, packing field, pane making field,
decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry
field. It is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wood sheet, scagliola, PCB ect

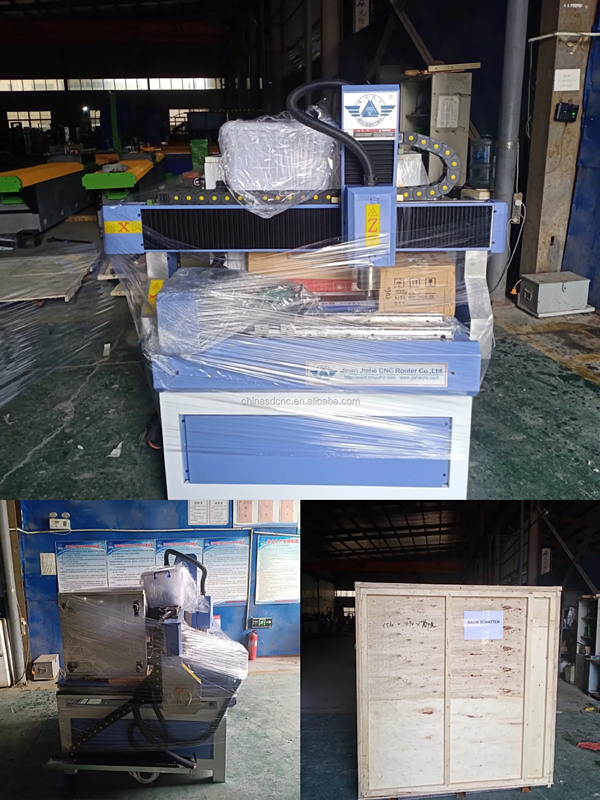

Machine package:
