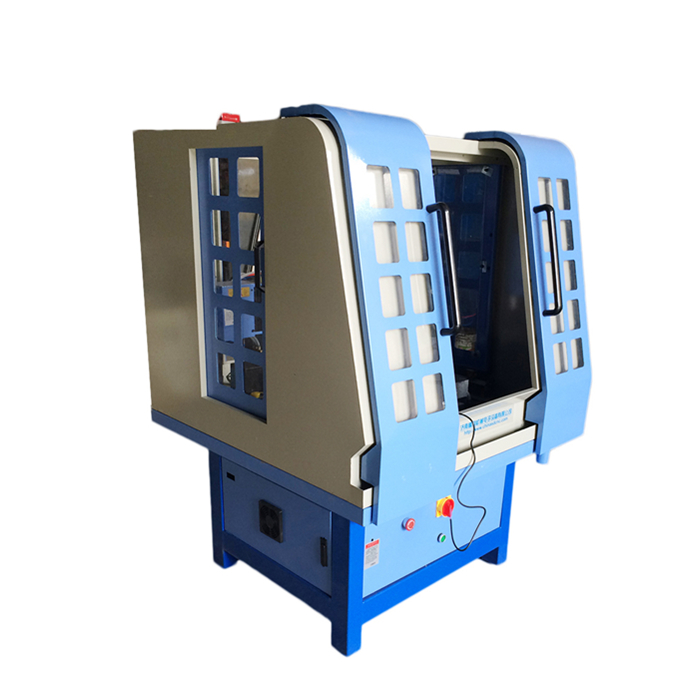

Mini CNC Metal Engraving Machine
The mini CNC metal engraving machine is widely used in a variety of industries. It has many advantages, such as easy and simple operation, high precision, low cost and good finish quality.
Model: JK-4040
Working size: 400×400×170mm
Spindle: 3.2kw 24000rpm
Control system: DSP
Motor: stepper
Mini CNC metal engraving machine is widely used in the engraving and cutting of advertisement signs, industrial mold signs, decoration products, and product prototypes. In addition, it can also engrave non-metallic materials, such as wood, plastic, stone, etc. It is an ideal tool for developing product design.
Technical parameters:
Model | JK-4040 |
Machine body | Cast iron |
Working area(XYZ axis) | 400*400*170mm |
Table size | 400*400mm |
X Y Z rail | Taiwan HIWIN/PMI linear square guide rail |
X Y Z transmission | Taiwan TBI High precision ball screw |
Spindle | 3.2kw 24000rpm water cooled spindle motor |
Frequency Inverter | 3.7KW inverter |
Driving Motor | Stepper motor |
Motor driver | Stepper driver |
Auto Lubrication system | With |
Max. speed | 15m/min |
Max. working speed | 6-8m/min |
Voltage | AC 220V/ 50-60HZ |
Collets | ER20 3.175-12.7mm |
Machine precision | 0.02mm |
Repeat reposition accuracy | 0.01mm |
Command | G code |
Software | Artcam |
Control system | DSP control system |

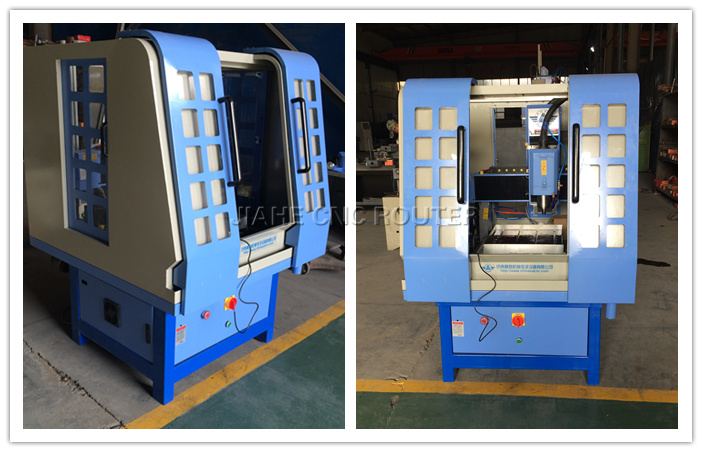

Mini CNC metal engraving machine photos:
Main parts show:

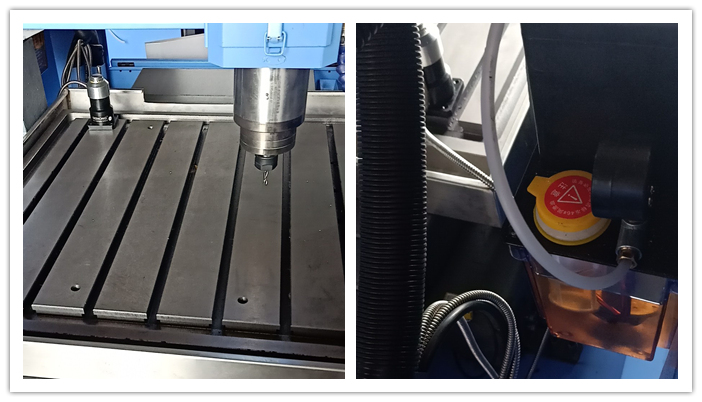

Casting iron table Auto lubrication system

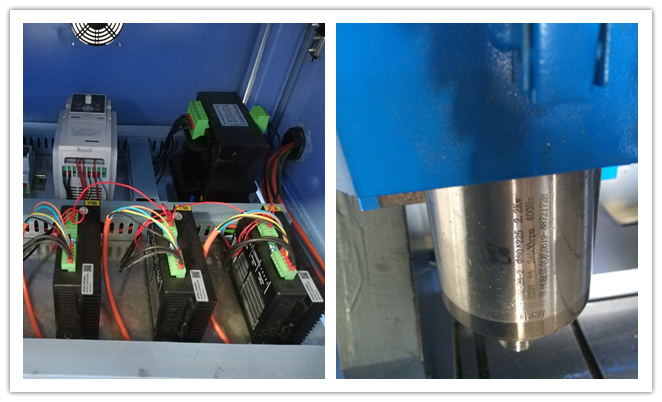

Leadshine stepper drivers 3.2kw water cooled spindle

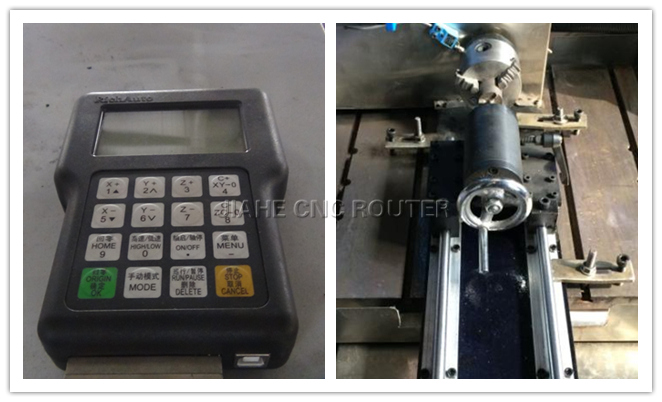

DSP control system Rotary(optional)

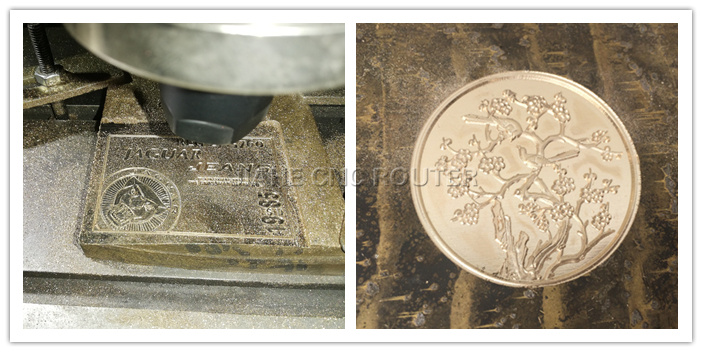

Mini cnc metal engraving machine is suitable for engraving letter and designs on all types of metal, as an example, iron,steel,copper,aluminum, gold, etc.
