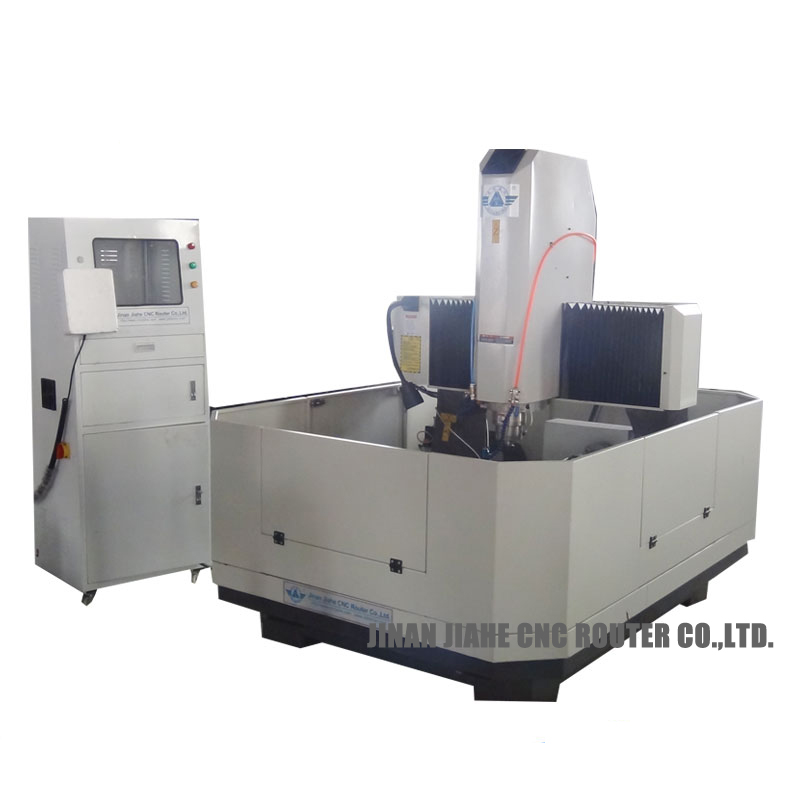

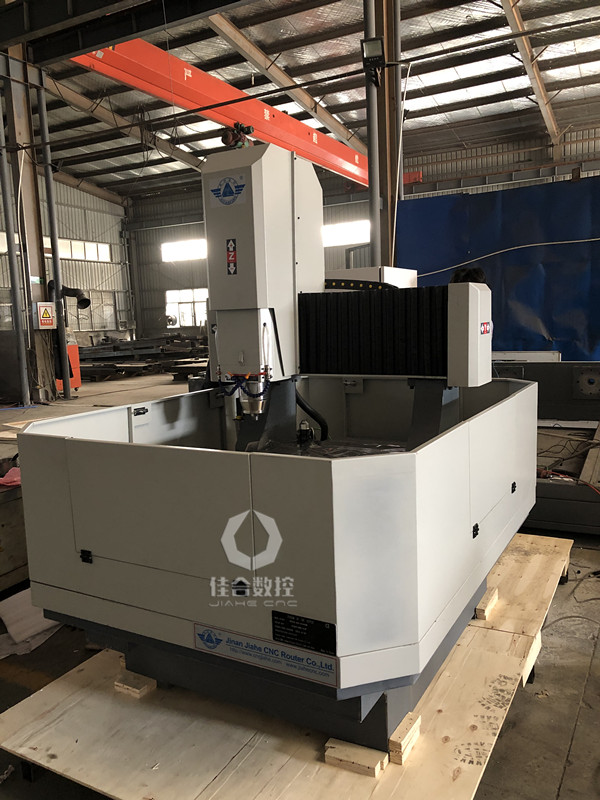

CNC Mould And Die Making Machine
CNC mould and die making machine is mainly used for engraving of metal moulds and non-moulds.
Model: JK-6060
Working size: 600×600mm
Spindle: 5.5kw water cooled
Motor: servo
Control system: Weihong
CNC mould and die making machine is a high precision computer-controlled metal engraving and milling machine that is widely used in metal products, moulds and non-moulds engraving processing.
Advantages of CNC mould and die making machine:

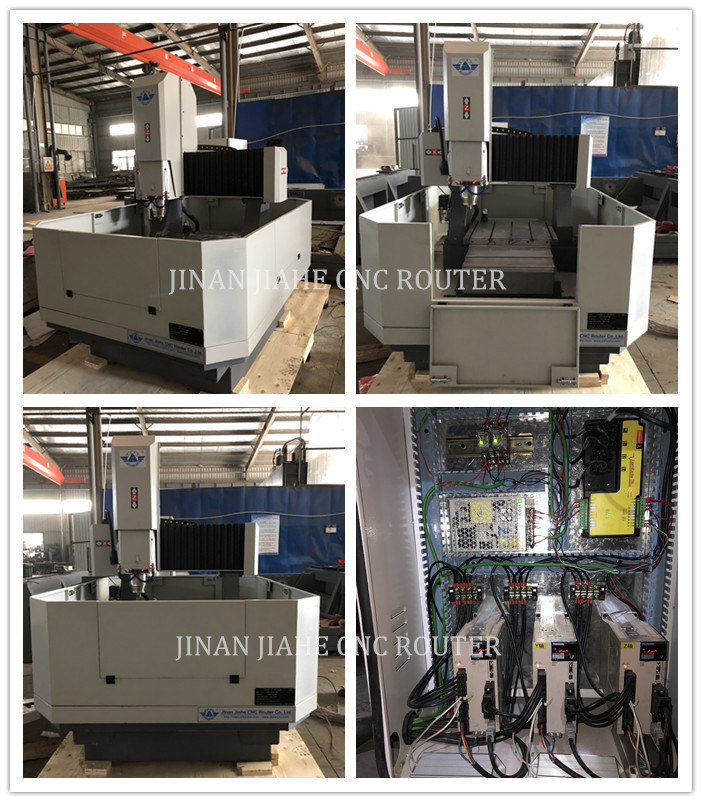

(1).The machine consists of a mechanical part, electrical part and control part. The various components are fixedly connected to form the framework of the machine. The mechanical part adopts a casting iron frame structure.
(2). CNC mould and die making machine is equipped with high precision spindle motor, which has strong power, low noise and low vibration, and can ensure high efficiency and stable cutting accuracy.
Technical parameters:
Traveling size | X Working Area | 600mm |
| Y Working Area | 600mm | |
| Z Working Area | 300mm | |
Accuracy | Working Accuracy | ±0.05mm |
| Repositioning Resolution | ±0.05 mm | |
Table | Surface | Cast iron table |
Transmission | X/Y Axis | Taiwan HIWIN square guide |
| Z Axis | Ball screw | |
Structure | Lathe Structure | whole cast heavy duty |
Speed | Rapid Travel Rate | 15000mm/min |
| Working Speed | 8000mm/min | |
Spindle | Spindle Power | 5.5KW metal milling spindle |
| Spindle Speed | 9000-18000rpm | |
Inverter | 5.5KW | |
Working | Drive motor | JAPAN YASKAWA Servo motor |
Command Language | G code(optional:HPGL) | |
Working Voltage | AC220/50HZ | |
Operating System | Taiwan syntec system | |
Compatible Software | ARTCAM | |
Weight | Gross weight | 1500kg |
| Net weight | 1400kg | |
package | 1. Protective film package and fumigation-free wooden case. | |

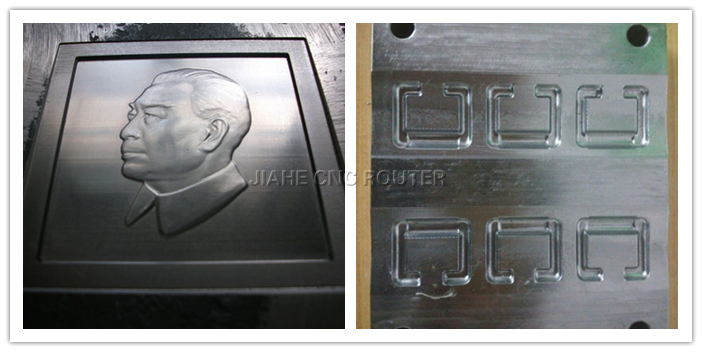

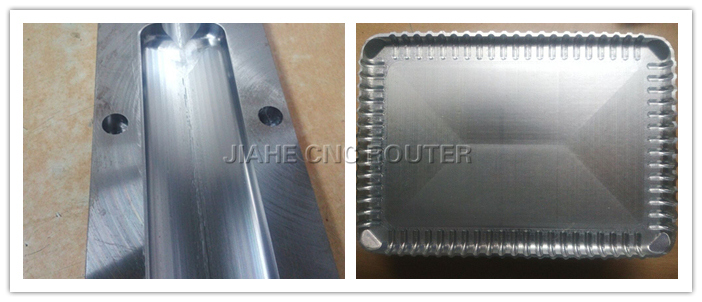

Usage: CNC mould and die making machine is mainly used in mould engraving processing, such as mechanical accessories, hardware tools, etc. It is also suitable for the engraving processing of non-metallic materials such as stone, marble, glass and copper.
