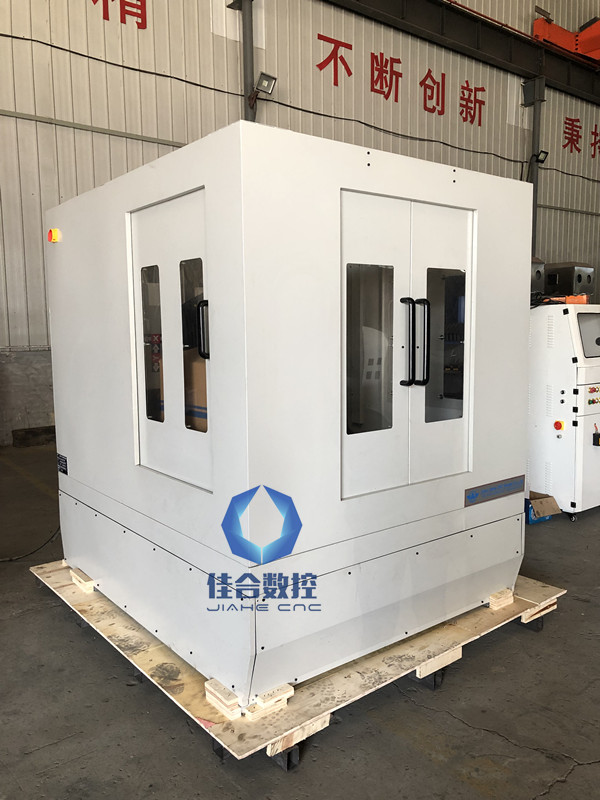

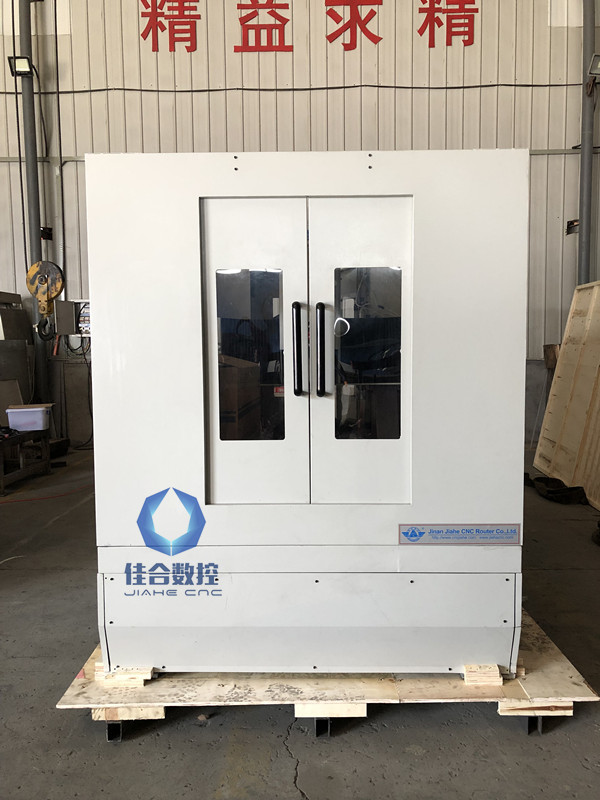

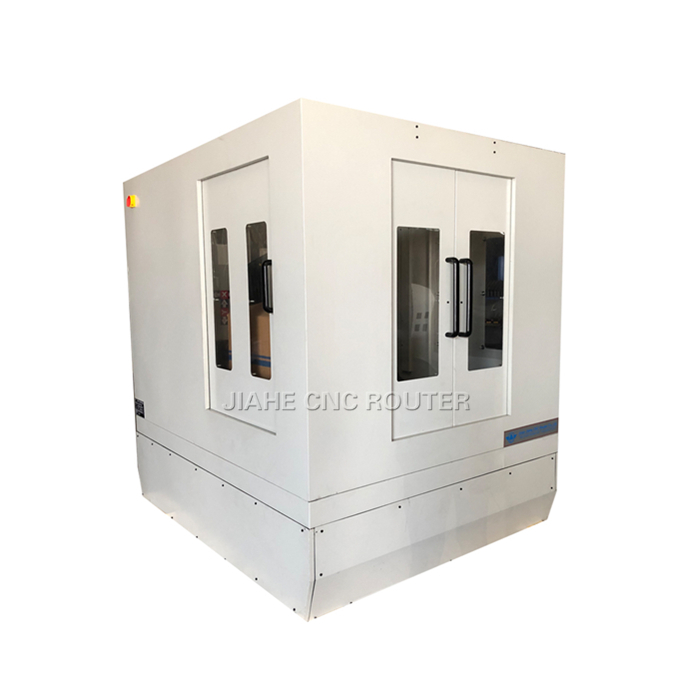

Professional Metal Engraving Milling Machine

Professional metal engraving milling machine is a newly developed mold special engraving machine with a special tool change mechanism design, high-speed engraving efficiency and high precision positioning accuracy.

Model: JK-6060

Working size: 600×600mm

Spindle: 5.5kw water cooled

Tools changing way: automatic

Motor: servo

Contact Now E-Mail Telephone WhatsApp

Product Details

Metal engraving milling machine allows the use of different tools to complete all kinds of special machining requirements. The machine is supplied with servo motors and high precision ball screws to ensure high precision milling.

Metal Engraving Milling Machine

Technical parameters of metal engraving milling machine:

Model	JK-6060
Machine body	Cast iron
Working area(XYZ axis)	600600300mm
Actual working size	600*500mm
Moving type	Table moving
X Y Z rail	Taiwan 25mm linear square guide rail
X Y Z transmission	Taiwan TBI High precision ball screw
Spindle	6.5kw 24000rpm water cooled ATC spindle
Inverter	7.5KW inverter
Motor/Driver	Japan Panasonic 1kw servo motors and drivers
Auto Lubrication system	Yes
Max. speed	20m/min
Max. working speed	15m/min
Voltage	AC 380V 50HZ-60HZ
Collets	BT30
Repeat reposition accuracy	0.01mm
Command	G code
Software	Artcam
Control system	Weihong NK280 controlling system
Tool change	Linear type with 4 tools
Rotary	Diameter 200mm(optional)

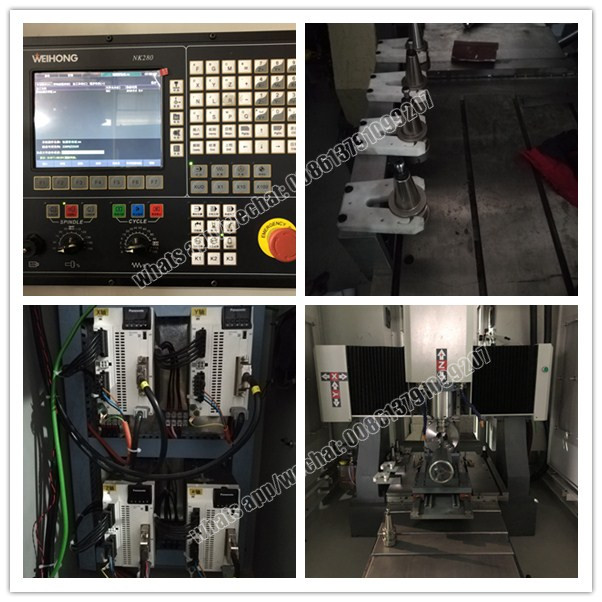

Main parts of metal engraving milling machine:

Metal Engraving Milling Machine

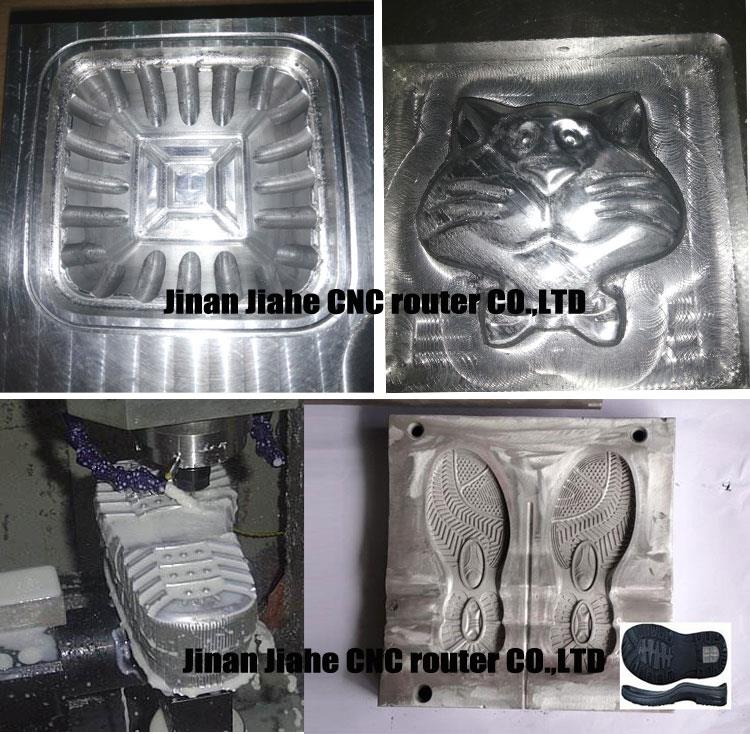

Application scope of metal engraving milling machine: automobile, motorcycle, aerospace, machine tool manufacturing, agricultural machinery manufacturing, mold manufacturing, etc.

Metal Engraving Milling Machine
