5 Axis Jewelry Milling Machine

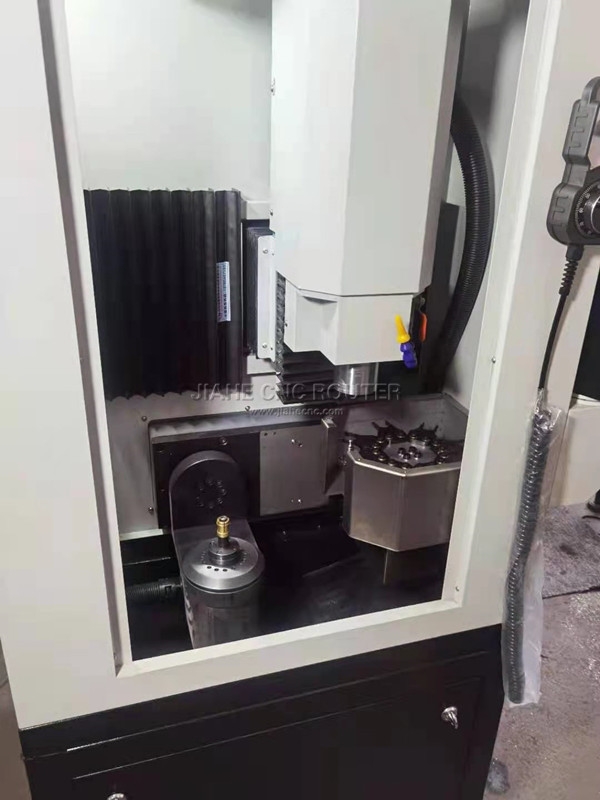

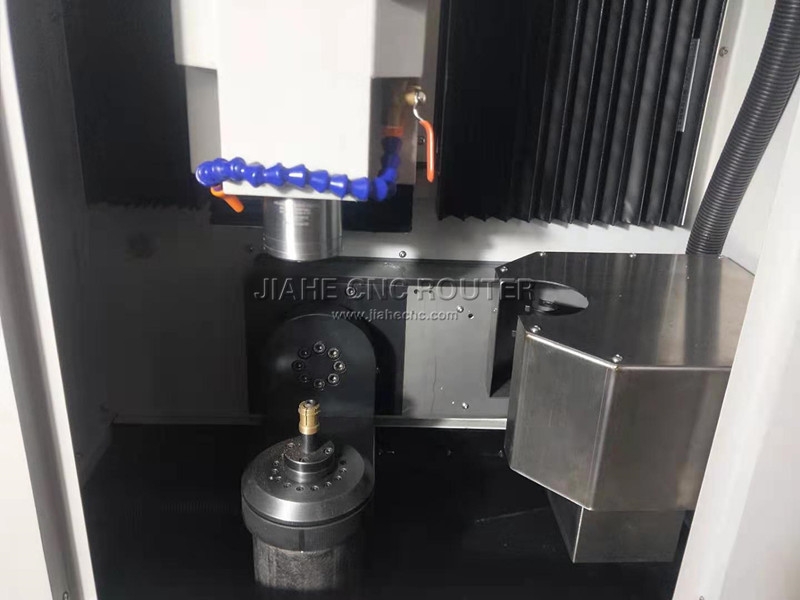

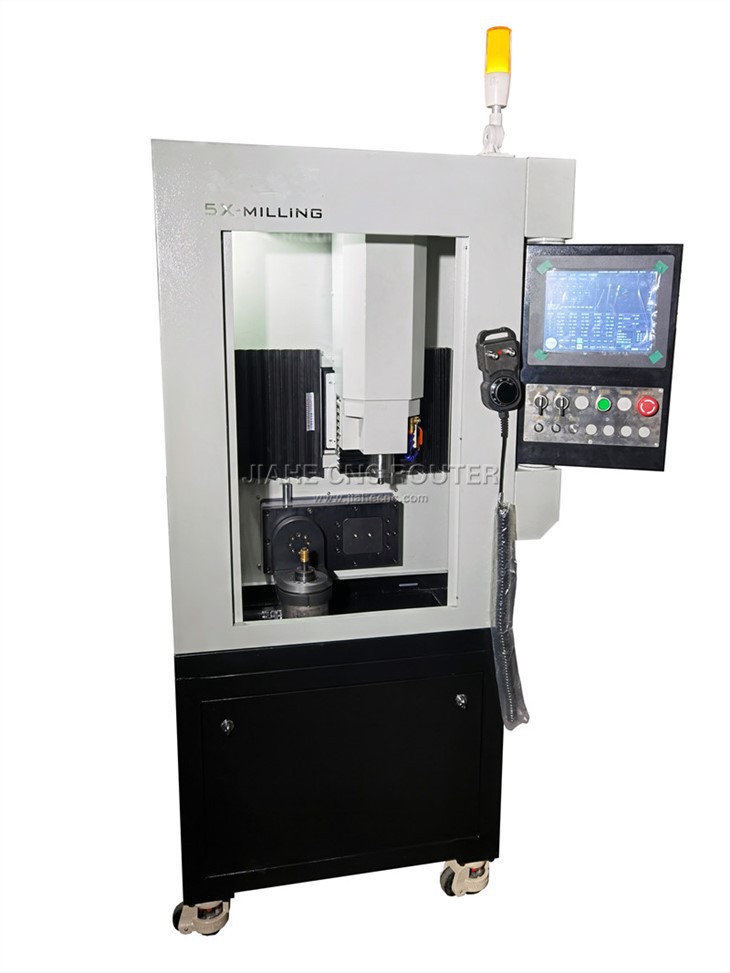

5 axis jewelry milling machine is a versatile machine with advanced features and capabilities. It is widely used in the jewelry manufacturing industry for carving intricate and beautiful designs on various materials.
Travelling size(XYZ axis): 250*120*150mm
Spindle: 1.5kw 60000rpm
Tool change: Pneumatic tool change
Tool magazine type : Telescopic inline/circle(optional)
5 axis jewelry milling machine is suitable for a wide range of manufacturing industries and can work on various materials. It can be applied for jewelry manufacturing, dental industry, aerospace industry, arts and crafts.
Features of 5 axis jewelry milling machine:
1. Five-axis technology: The machine uses five-axis technology to allow for carving in multiple directions for added flexibility.
2. High spindle speed: The machine has a high spindle speed, which results in smooth and detailed carvings.
3. High precision, high accuracy: The machine's positioning accuracy and repeatability are high, ensuring a consistent quality of work.
4. Dust collection system: The machine has a built-in dust collection system that captures dust and debris during the carving process.
Technical parameters of 5 axis jewelry milling machine:
Chuck | Structure | No working table,Pneumatic tightening structure |
Chuck size | Customize any diameter size as to custmer’s request,10MM-100MM | |
Max. Load capacity | 1KG | |
Material | Die steel finishing | |
Travel parameters | X axis | 250mm |
Y axis | 120mm | |
Z axis | 150mm | |
B axis | -110°-0° | |
A axis | 360° | |
Work space size | Diameter 120mmx Height 200mm | |
Spindle passing height | Distance from spindle nose to worktable 240mm | |
Spindle | Type | Frequency electric spindle |
Speed | Max.60000r/min | |
Power | 1.5kw | |
Frequency | 2000hz | |
Tool change type | Pneumatic tool change | |
Spindle taper | Diameter 6mm/4mm Straight hole(choose 1 of 2) | |
Tool specifications | Variable diameter cutter，6-4，6-3，6-1 etc. | |
Running speed | Linear cutting feed | 3000mm/min |
Linear rapid feed | 5000mm/min | |
Rotary cutting feed | 3000°/min | |
Rotary rapid feed | 5000°/min | |
Tool library | Tool magazine type | Telescopic inline tool magazine |
Tool magazine capacity | 10 | |
Tool change time | 10 seconds | |
Automatic tool setting | Automatic tool setting after tool change | |
Max.tool length | 50mm | |
Max.tool diameter | 6mm | |
Motor | X axis motor | 100w servo motor |
Y axis motor | 100w servo motor | |
Z axis motor | 100w servo motor(with brake) | |
B axis motor | 100w servo motor | |
C axis motor | 100w servo motor | |
Dimensions | Basic model | 700Wx750Tx1250H |
Folded with panel | 900Wx750Tx1250H | |
Expanded with panel | 1150Wx750Tx1250H | |
Weight | Basic model | 260kg |
Panel weight | 20kg | |
Base weight | 70kg | |
Weight of base and table | 110kg |
5 axis jewelry milling machine can work on various materials, including:
1. Metals, such as gold, silver, platinum, and stainless steel.
2. Gemstones, such as diamonds, rubies, emeralds, and sapphires.
3. Plastics and other synthetic materials.
