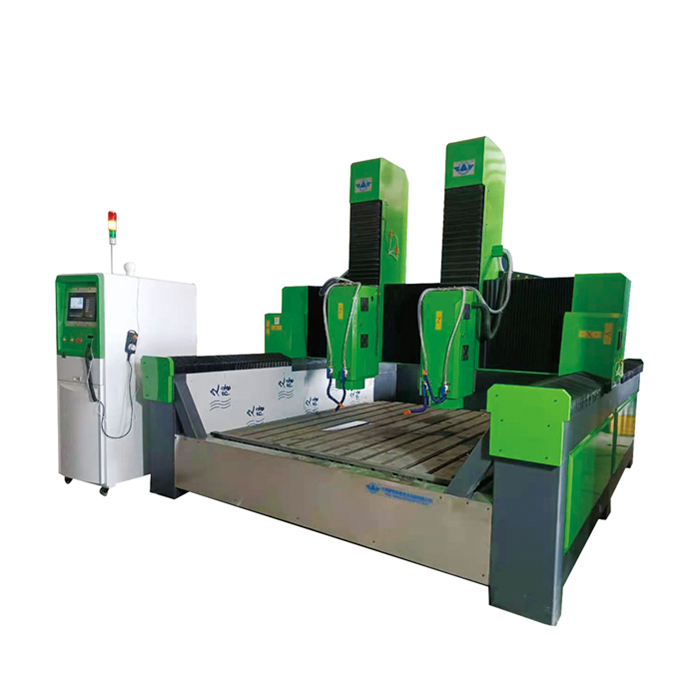

CNC Stone Milling Machine

Model: JK-1525
Working size: 1500*2500mm
Function: milling and carving
Spindle: 5.5kw*2

Transportation: LCL or FCL by sea from Qingdao port

Service: 7×24 hours technical support

Contact Now E-Mail Telephone WhatsApp

Product Details

Double head JK-1525 CNC Stone Milling Machine can be used for milling and carving marble and granite.

Technical parameters:

Technical parameters		JK-1525
Working size	X-axis	1500mm
	Y-axis	2500mm
	Z-axis	800mm（feeding height 500mm）
Table	Size	1500*2500mm
Table	Material	Aluminum profile + hard ABS board
Gantry		8mm thick integral square steel is formed at one time, with higher precision
Body		Steel structure tempering treatment + anti-corrosion three-time spray painting + stainless steel water retaining + heavy-duty trapezoidal leg two-protection welding technology
Dustproof and waterproof		Exclusive design, stainless steel L-shaped + U-shaped design, efficient dustproof and waterproof
Guide rail		30mm Taiwan square guide rail (Y-axis double guide rail)
Precision	Working precision	0.5mm
	Repeatability	0.1mm
Transmission	X, Y, Z structure	XY axis rack drive, Z axis adopts 2510 lead screw Taiwan original nut
Speed	Max.travelling speed	30000mm/min
Speed	Max.working speed	15000mm/min
Spindle	Power	Special motor for drilling + 5.5KW high-speed spindle
Spindle	Speed	24000r/min
Lubrication system	Guide screw lubrication	Fully automatic oil supply system
Electrical circuit		National standard super soft drag chain anti-aging cable
Tubes		Anti-aging water pipes and oil pipes
Cooling	Tool cooling system	Circulating water return design
Motors and drivers		1.5KW/6NM
Voltage		AC380V
Command		G code, F/S command compatible
Control system		Weihong control

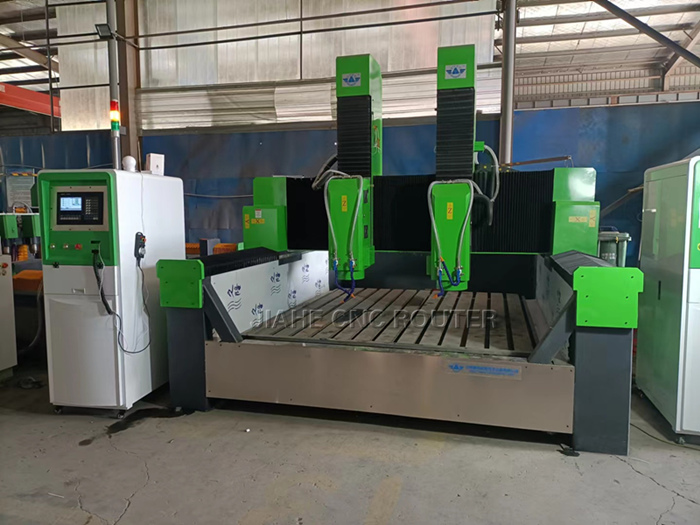

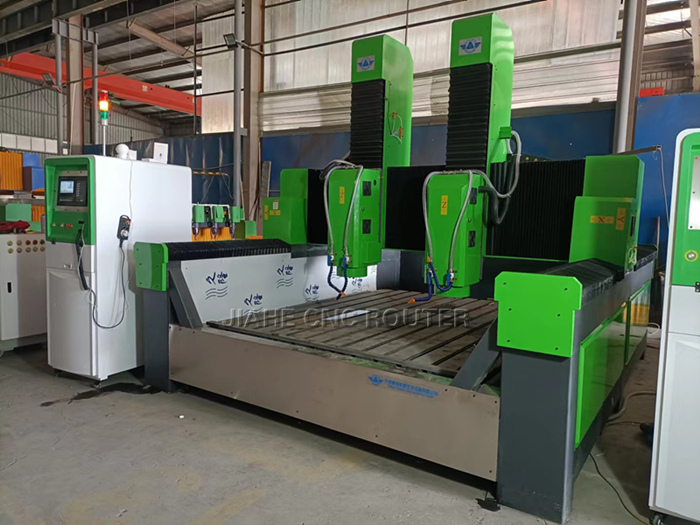

CNC Stone Milling Machine pictures:

CNC Stone Milling Machine

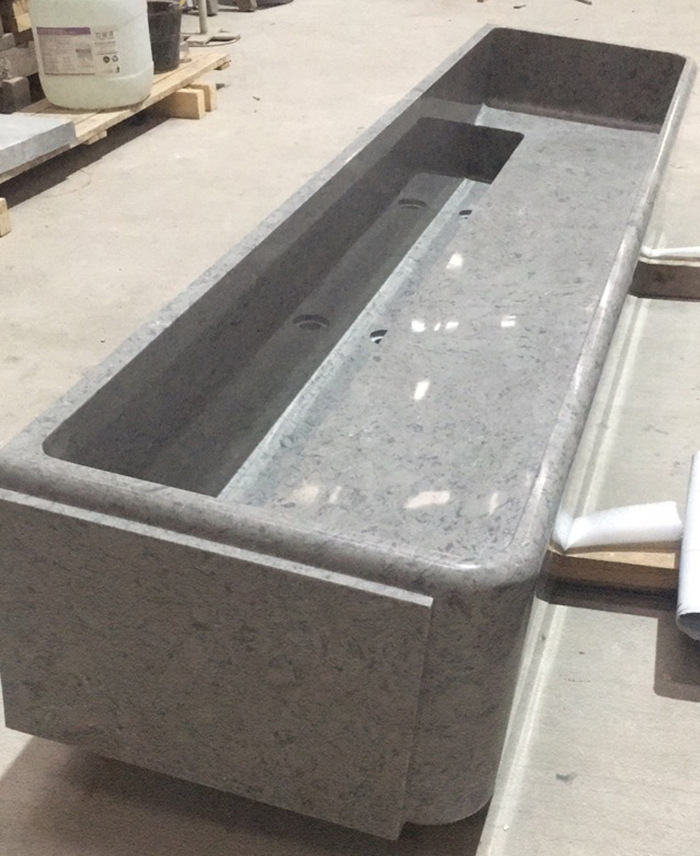

Application of CNC Stone Milling Machine:

This machine has each milling and carving capabilities. Numerous styles and characters can be carved on all styles of stones inclusive of granite, marble, white marble and bluestone. And it is very appropriate for bath tub processing.

CNC Stone Milling Machine
