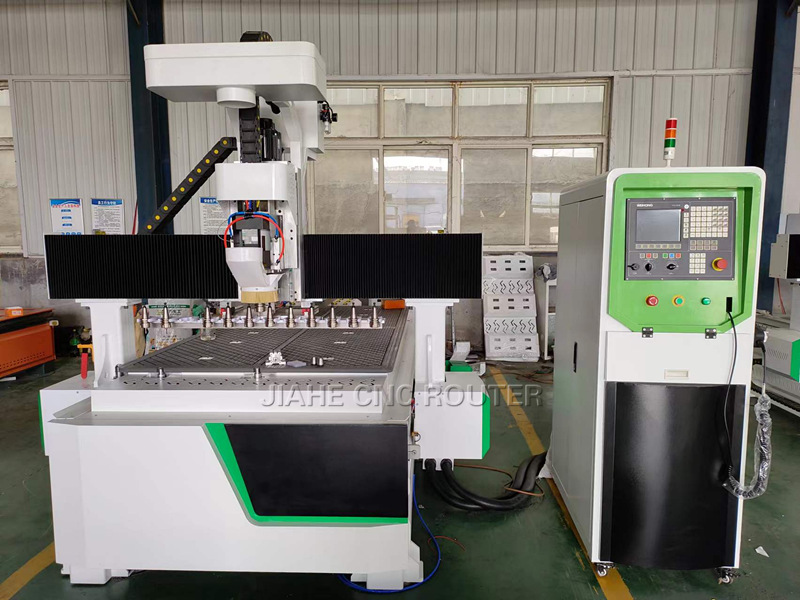

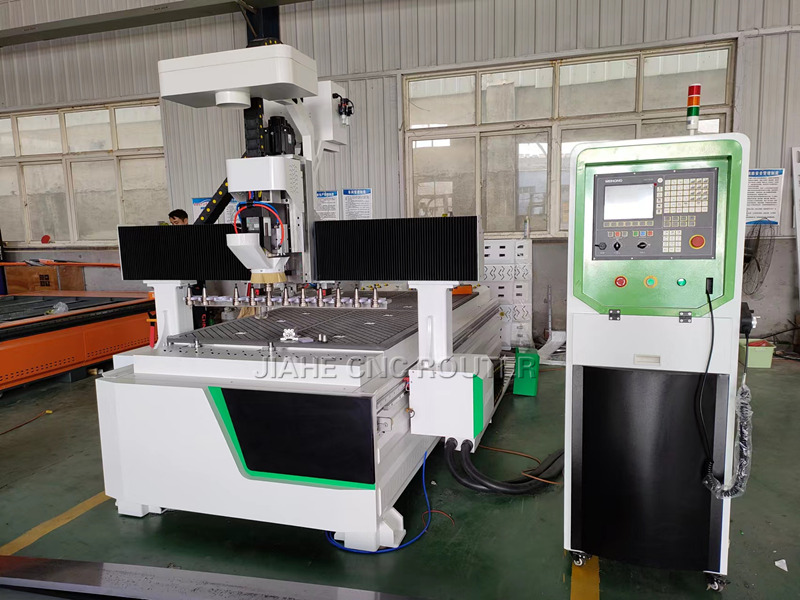

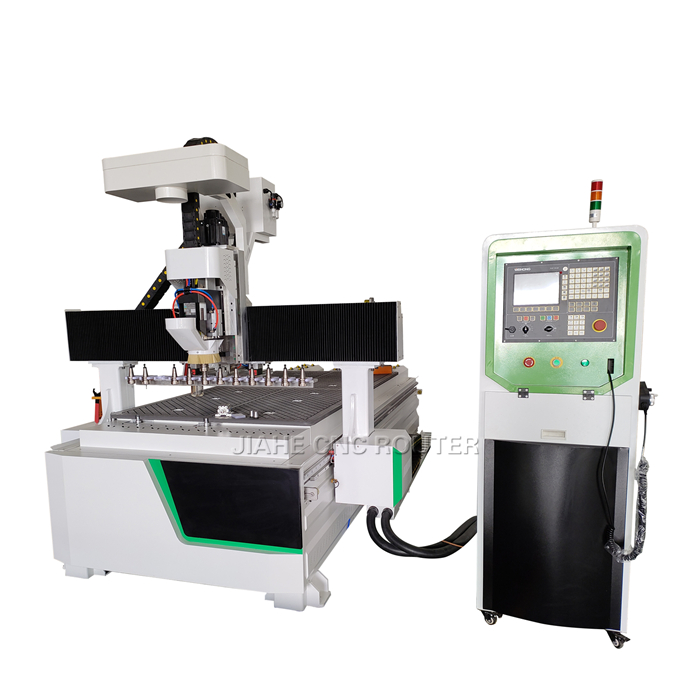

CNC Wood Engraving Machine With Automatic Tool Changer
CNC wood engraving machine with automatic tool changer is a high-tech machine designed for professionals in the woodworking industry. Equipped with automatic tool changing function, this CNC wood engraving machine can complete various types of wood carving tasks with high precision and efficiency.
Model: JK-1325ATC
Working size: 1300×2500×300mm
Motor: servo
Control system: Taiwan LNC
CNC wood engraving machine with automatic tool changer is perfect for a variety of industries, including furniture making, decoration, crafts, advertising, and more. It can handle a variety of materials, such as wood, MDF, acrylic, and PVC.
Advantages of CNC wood engraving machine:
1. Automatic Tool Changing Function: This CNC wood engraving machine has an automatic tool changing function, which can store and automatically change up to 12 different carving tools, allowing for a seamless and hassle-free carving process.
2. High Precision: With a high-speed spindle motor and advanced motion control technology, our CNC wood engraving machine can ensure extremely precise carving results, taking woodworking to a new level.
3. Ultimate Efficiency: This machine is designed with a large working area, ensuring maximum efficiency in carving larger objects. It is also fast, allowing you to complete tasks quickly and efficiently.
4. Easy to Use: This CNC wood engraving machine is user-friendly and easy to operate, making it an ideal choice for professionals and beginners alike.
Technical parameters of CNC wood engraving machine:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x250mm |
2 | Table Size | 1350*2600mm |
3 | X,Y,Z Traveling Accurate | ±0.03/300mm |
4 | Table type | Vacuum table(6 zone) |
5 | Lathe Structure | Thick steel Welded construction |
6 | Guide rails | Taiwan PMI square guide rails for x y z axis |
7 | X, Y Structure | Taiwan rack and pinion transmission |
8 | Z Structure | Taiwan TBI ball screw transmission |
9 | Spindle motor | 9KW air cooled spindle with linear tool changer |
10 | Max.Speed | 0-30000mm/min |
11 | Max. Working Speed | 0-25000mm/min |
12 | Frequency Inverter | Taiwan Delta inverter |
13 | Spindle Speed | 18000-24000RPM |
14 | Motor | Leadshine Servo motors 1.5kw |
15 | Driver | Leadshine servo drivers |
16 | Working Voltage | 380V three phase |
17 | Command | G Code, *uoo, *mmg, *plt |
18 | Operating System | Taiwan LNC control system MW2200 |
19 | Tool changer | 12pcs changing tools |
20 | Lubrication system | Self lubrication system |
21 | Tool sensor | Z axis tool sensor |
22 | Limit switches | Limit switches at all ends of X and Y table |
23 | Vacuum pump | 7.5kw |
24 | Dust collector | New style dust collector |
25 | Packing Size | 3200*2280*2100mm |
26 | Net Weight | 1300KG |
27 | Gross Weight | 1500KG |

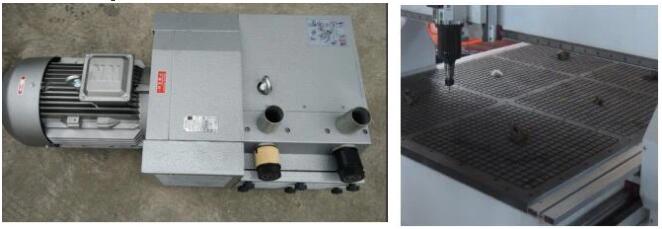

7.5kw vacuum pump Vacuum table

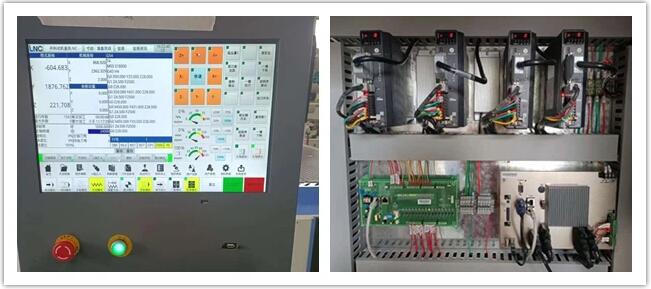

LNC control system Servo drivers
Linear tool changer Tool sensor
Application and Materials of CNC wood engraving machine:
CNC wood engraving machines can be used in various industries, including:
- Furniture manufacturing
- Advertising industry
- Decoration industry
- Arts and crafts industry
CNC wood engraving machines can be used to work with a variety of materials, such as:
- Wood
- Plastic materials
- Metal
- Artificial stone
- Acrylic
- PVC and many other materials
Our CNC wood engraving machine with automatic tool changer is a powerful and reliable machine that will revolutionize your woodworking and carving tasks. It is easy to use, efficient, precise, and can handle a variety of materials, making it ideal for a wide range of applications. Do not hesitate to buy this machine, and start creating your masterpiece today!
