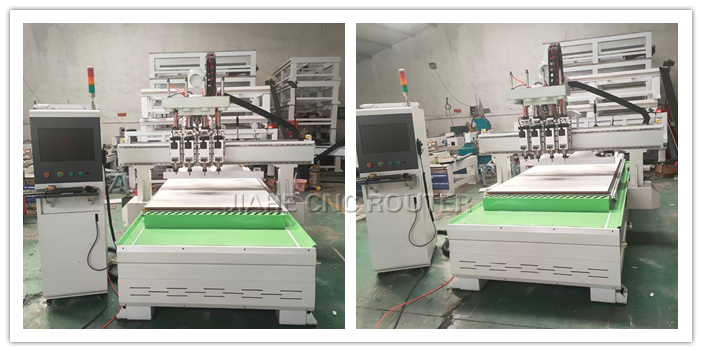

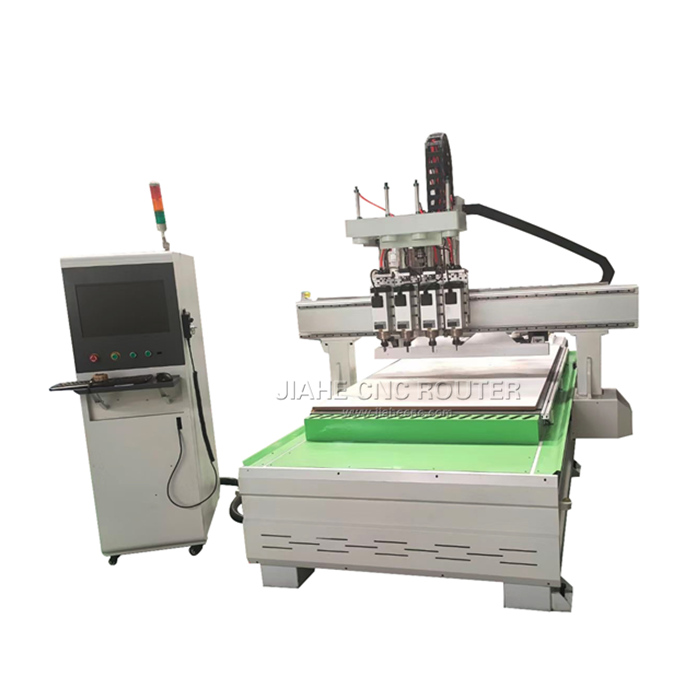

3D Wood Engraving Machine

3D wood engraving machine is a new and innovative machine designed to provide more accurate and efficient woodworking services. The machine is built using high-quality materials that ensure durability and performance. The machine is easy to operate and comes with pre-installed software that makes it easier to use.

Model: JK-1325W
Work size: 1300*2500*200mm
Spindle: 3.5kw air cooled*4
Motor: servo motor

Contact Now E-Mail Telephone WhatsApp

Product Details

3D wood engraving machine is designed with speed and precision in mind. The machine can work on both soft and hard materials and is capable of producing a wide range of designs. The machine also comes with a powerful air-cooled spindle motor that ensures faster and smoother cutting.

Technical parameters of 3D wood engraving machine:

Model	JK-1325W
Machine body	Whole Cast Iron
Table	Vacuum working table with T-slot fixture
X Y Z rail	PMI/HIWIN linear square guide rail
X Y transmission	ball screw
Z transmission	High precision ball screw
Spindle	3.5KW air cooling spindle *4
Spindle speed	18000rpm
Inverter	Fuling inverter
Motor	Servo motor
Driver	Servo driver
Transformer	Yes
Lubrication	Yes
Max. speed	30m/min
Max. working speed	20m/min
Voltage	AC 220V 50HZ or AC380V
Collets	ER25 3.175-20mm
Repeat reposition accuracy	0.025mm
Max. cutting thickness	<=20mm
Command	G code
Software	Artcam
Control system	Nc Studio
Dust collector	With

3D Wood Engraving Machine

Applicable Fields:

3D wood engraving machine is suitable for a wide range of applications in various industries. The machine is ideal for furniture making, decoration, and craft projects. It is also suitable for the production of signs and 3D sculptures, enabling you to create complex designs with ease.

Suitable Materials:

3D wood engraving machine can work with a range of materials, including wood, plastics, composites, and even metal. This allows you to create intricate and complex designs with ease.

3D Wood Engraving Machine
