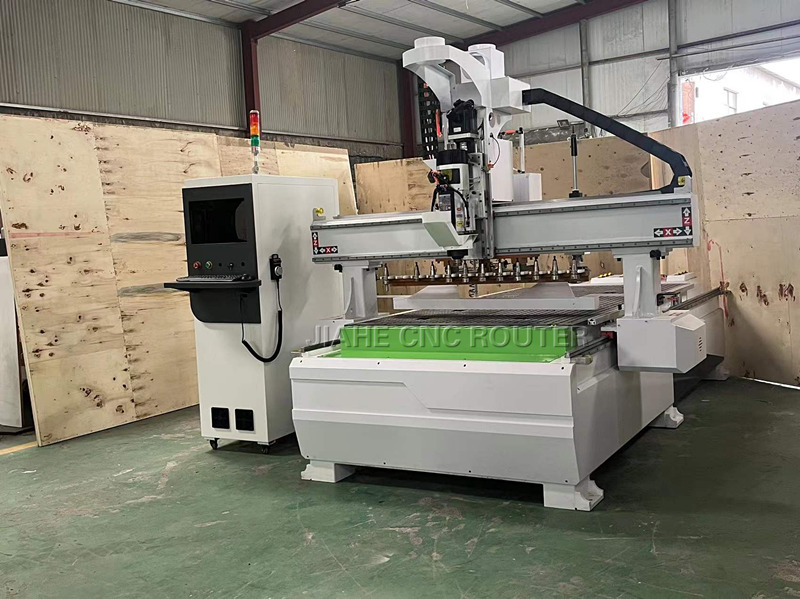

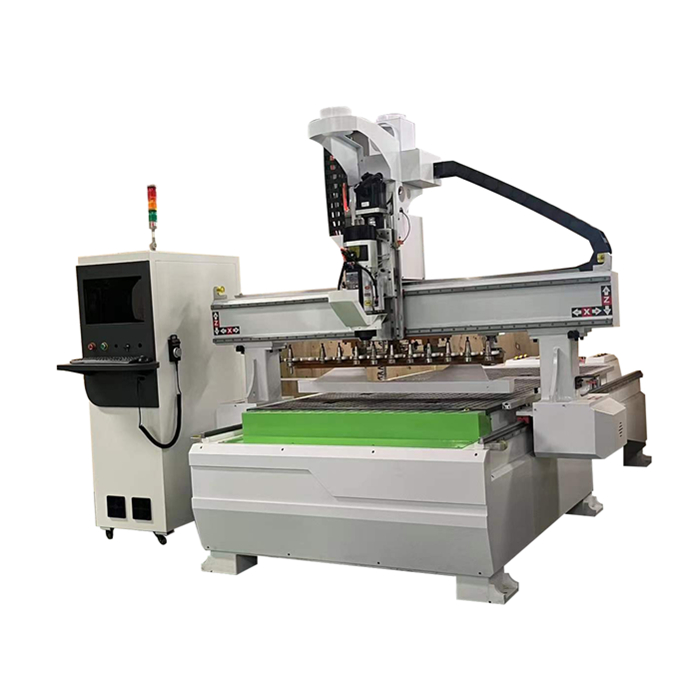

ATC CNC Wood Carving Machinne
ATC CNC wood carving machine is a revolutionary product that has transformed the woodworking industry. This machine is designed to help woodworkers to quickly and effectively carve wood with precision and accuracy.
Model: JK-1325(8ft×4ft)
Working size: 1.3m×2.5m(8ft×4ft)
Spindle: 9kw ATC
Motor: servo
ATC CNC wood carving machine is suitable for different industries, such as furniture manufacturing, home decoration, woodworking workshops, and art studios. It is also used by carpenters, artisans, and designers who require precision and speed in their woodworking projects. The machine can be used to create a range of products, from intricate carvings and sculptures to large-scale wooden structures.
Machine advantages:
ATC CNC wood carving machine adopts an advanced technology that allows woodworkers to achieve high precision on their carving work. The machine is equipped with a high-performance motor that ensures fast and effective cutting and carving of wood. It also comes with a computer-controlled system that enables it to work efficiently and smoothly. The machine is easy to operate and requires minimal maintenance.
Technical parameters of ATC CNC wood carving machine:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x250mm |
2 | Table Size | 1350*2600mm |
3 | X,Y,Z Traveling Accurate | ±0.03/300mm |
4 | Table type | Vacuum table(6 zone) |
5 | Lathe Structure | Thick steel Welded construction |
6 | Guide rails | Taiwan PMI square guide rails for x y z axis |
7 | X, Y Structure | Taiwan rack and pinion transmission |
8 | Z Structure | Taiwan TBI ball screw transmission |
9 | Spindle motor | 9KW air cooled spindle with linear tool changer |
10 | Max.Speed | 0-30000mm/min |
11 | Max. Working Speed | 0-25000mm/min |
12 | Frequency Inverter | Taiwan Delta inverter |
13 | Spindle Speed | 18000-24000RPM |
14 | Motor | Leadshine Servo motors 1.5kw |
15 | Driver | Leadshine servo drivers |
16 | Working Voltage | 380V three phase |
17 | Command | G Code, *uoo, *mmg, *plt |
18 | Operating System | Taiwan LNC control system MW2200 |
19 | Tool changer | 12pcs changing tools |
20 | Lubrication system | Self lubrication system |
21 | Tool sensor | Z axis tool sensor |
22 | Limit switches | Limit switches at all ends of X and Y table |
23 | Vacuum pump | 7.5kw |
24 | Dust collector | New style dust collector |
25 | Packing Size | 3200*2280*2100mm |
26 | Net Weight | 1300KG |
27 | Gross Weight | 1500KG |

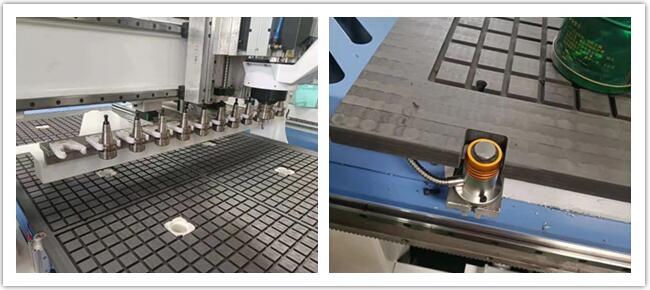

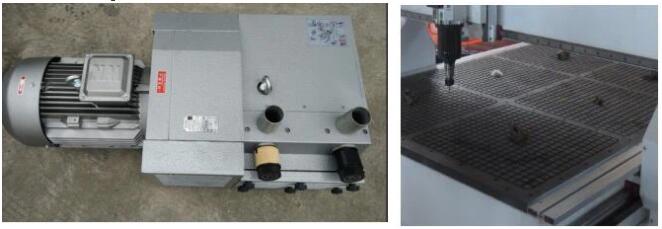

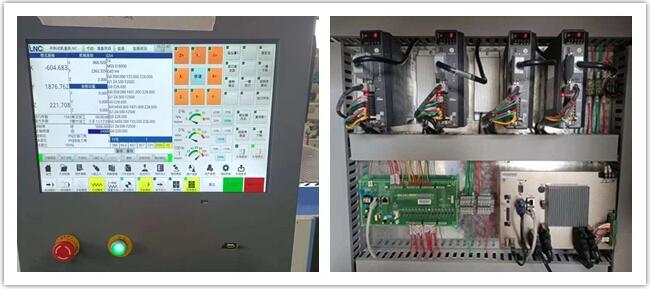

Parts show of ATC CNC wood carving machine:
Suitable Scope:
ATC CNC wood carving machine is widely used in different sectors of the woodworking industry, including furniture manufacturing, construction, and art. It is ideal for carving different types of woods, such as oak, mahogany, walnut, and cherry, among others. The machine can also be used for cutting, drilling, and engraving of different materials, including plastic, acrylic, and foam.
