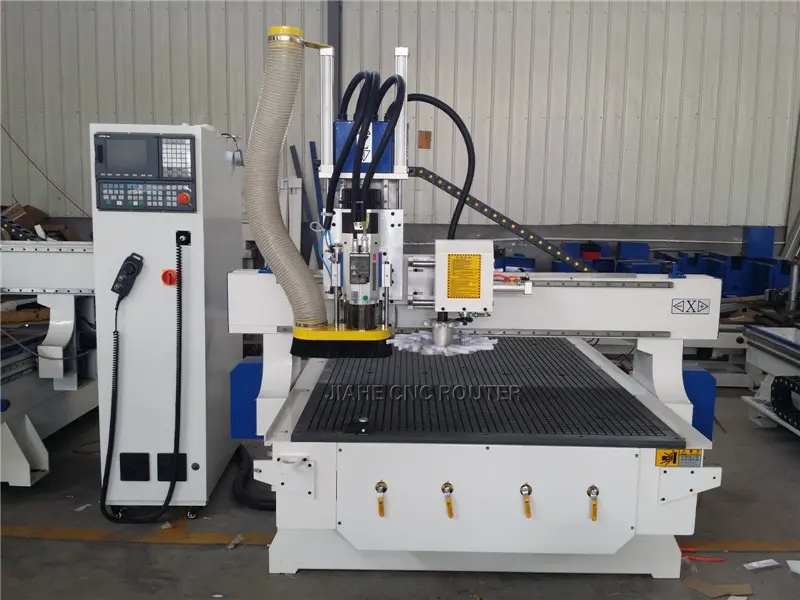

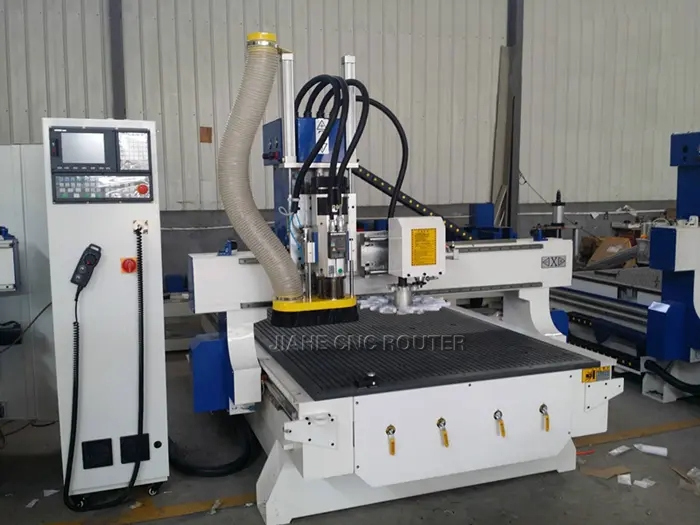

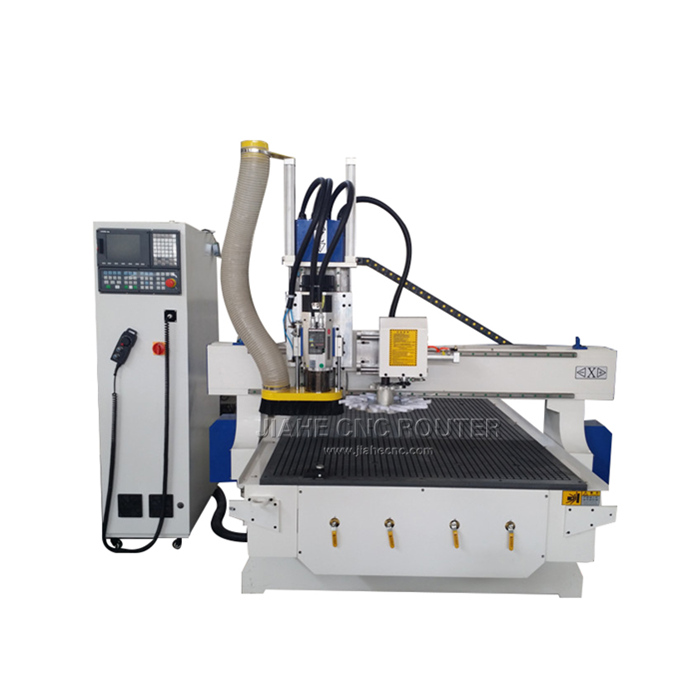

Wood Guitar Carving Machine
Wood guitar carving machine is a powerful and versatile tool that has become a popular choice among guitar manufacturers and enthusiasts worldwide. This machine offers a range of benefits that make it an ideal investment for those looking to create high-quality, precision-crafted guitars.
Model: JK-1325ATC
Working area (X*Y*Z): 1300*2500*300 mm
Spindle power: Italy HSD 9KW
Working voltage : AC380V
Motor: servo motors
Control system: Taiwan Syntec control system
Wood guitar carving machine is a heavy-duty piece of equipment that is capable of carving, routing, and shaping guitars made from various wood. It has a high-speed spindle motor and a precision linear guide rail system that ensures accurate and consistent control over the cutting process. The machine is operated using a user-friendly computer numerical control (CNC) system, which allows for easy programming and operation.

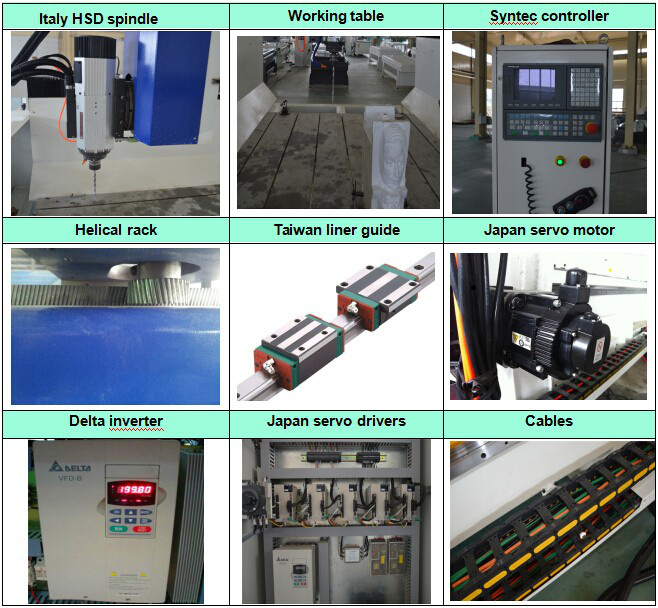

Main specification of wood guitar carving machine:

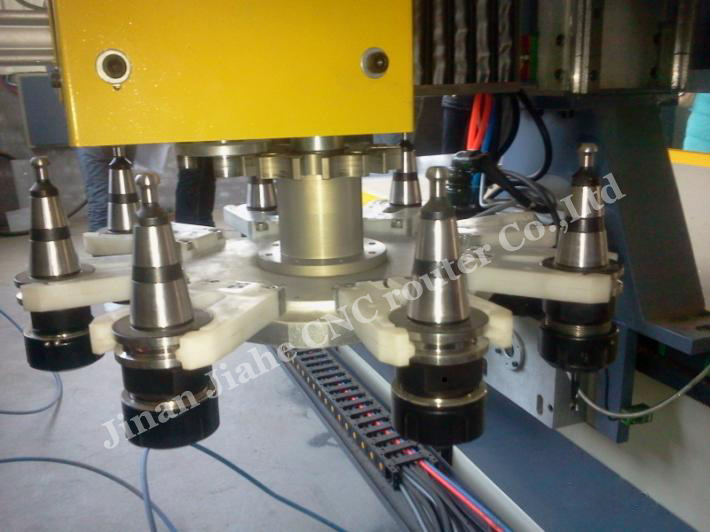

ATC System with 10 Pcs Tools Library
Taiwan Syntec Controller
Taiwan Delta InverterJapan Panasonic Servo Motor
Hiwin 3.0 Linear Rail
Big Power 7.5kw vacuum table
Germany Schneider Electronic Spare Parts
Italian 9.0KW HSD Air Cooling ATC Spindle
Technical parameters of wood guitar carving machine:
Model | JK-1325W ATC | |
Item | Description | Parameter |
1 | X, Y, Z working area | 1300*2500*200mm |
2 | Table size | 2165*3700mm |
3 | Resolution | ±0.03/300mm |
4 | Repeatability | ± 0.05mm |
5 | Lathe structure | Steel tube frame |
6 | X structure | Rack pinion, linear rails |
7 | Y structure | Rack pinion, linear rails |
8 | Z structure | Ball screw, linear rails |
9 | Max. consume power | 12kw |
10 | Max. rapid | 0-50000mm/min |
11 | Max. working speed | 0-30000mm/min |
12 | Spindle power motor | 9kw italian HSD spindle with ATC, ISO30(ER32) |
13 | Spindle speed | 0-24000RPM |
14 | Working mode | Japan panasonic servo system |
15 | Working voltage | 3 phase AC380V/50HZ/60Hz |
16 | Command code | G code(*uoo,*mmg) |
17 | Operating system | taiwan syntec system |
18 | Interface | USB |
19 | System Memory | 256M (or pendrive) |
20 | Collet | ISO30(ER32) |
21 | X, Y working delicacy | <0.02mm |
22 | Software | Type3/JD paint software |
23 | Running circumstance | Temperature: 0°C~45°C |
| 24 | Packing size | 3880*2300*1800mm |
25 | Net weight | 1700KG |
26 | Gross weight | 1900KG |
27 | Vacuum table | T slot vacuum table |
28 | Vacuum pump | 7.5kw 250cbm/h |
29 | Dust collection | 3kw 3P380V double bags |
Suitable work:

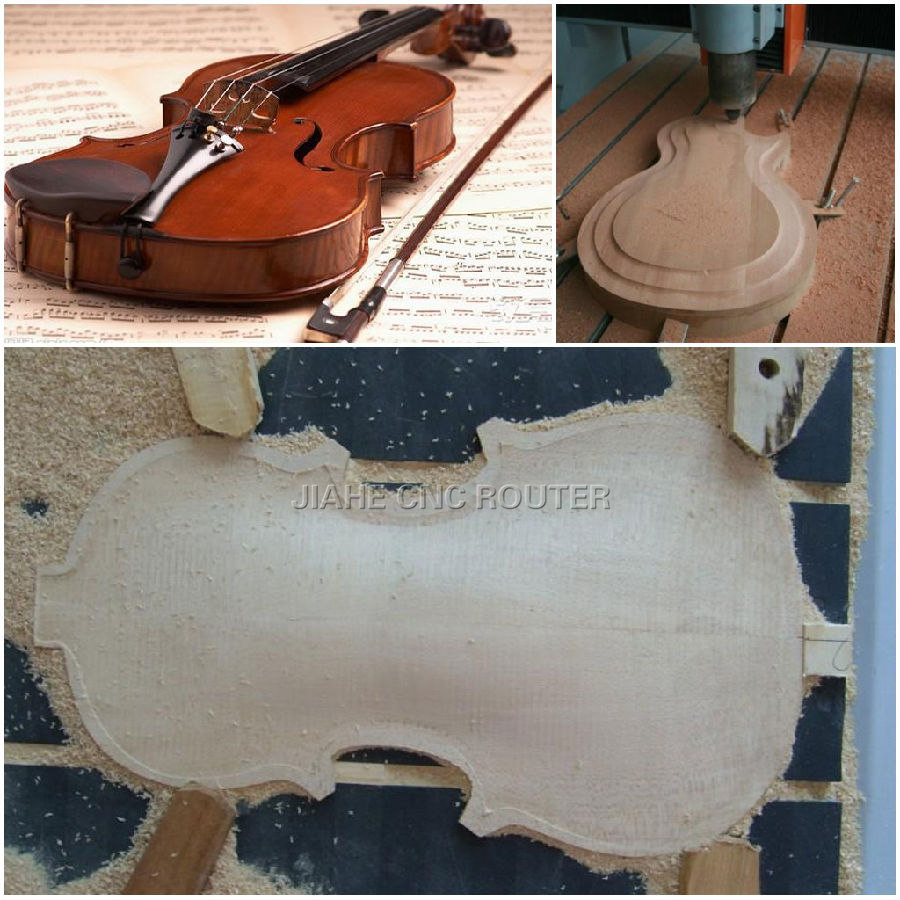

Wood guitar carving machine is suitable for a range of users, from amateur guitar makers to professional manufacturers. It can be used to create a variety of guitar styles, including classical, acoustic, and electric guitars. This machine is also suitable for other industries that require precision cutting and shaping, such as the furniture and jewelry industries.
Suitable materials:
The machine can work with a variety of materials, including different types of wood and plastic. It can also handle metal materials such as aluminum and brass. The range of materials the machine can work with is what makes it a versatile tool that can be used in various industries.
Our service
1) 15 months free wanranty under normal use
2) first class engineers give 24hours service on Internet and Telephone, free instructions and problem solving.
3) Free training to make sure you master the operating of cnc machine.
More information, please feel free to contact with us:
Jessie Zhang/What's app: 0086 13791099207/ Email: jiahecnc03@jiahecnc.com
Different wood carving machine we can offer:
Small size one: JK-6090W(600*900mm), JK-1313W(1300*1300mm)
Big size: JK-1325W(1300*2500mm), JK-1530W(1500*300mm),JK-1825W(1800*2500mm),JK-2030W(2000*3000mm), JK-2040W(2000*4000mm)
