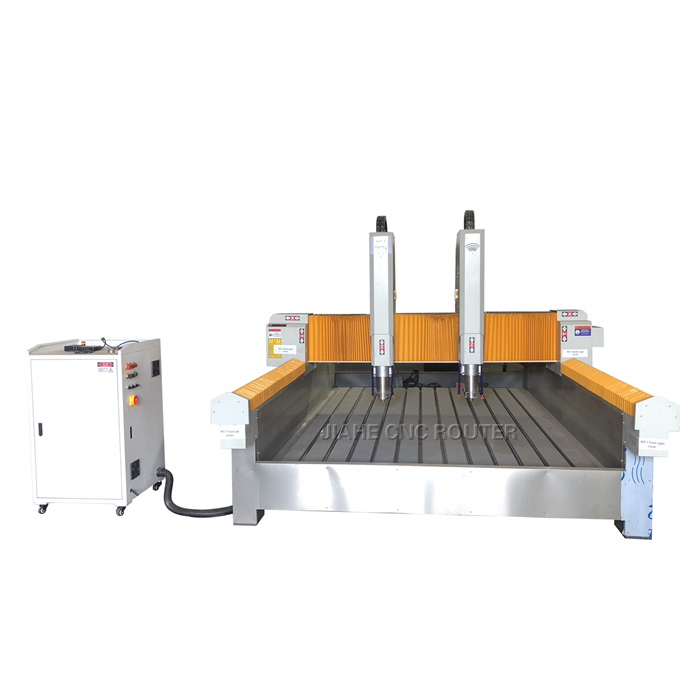

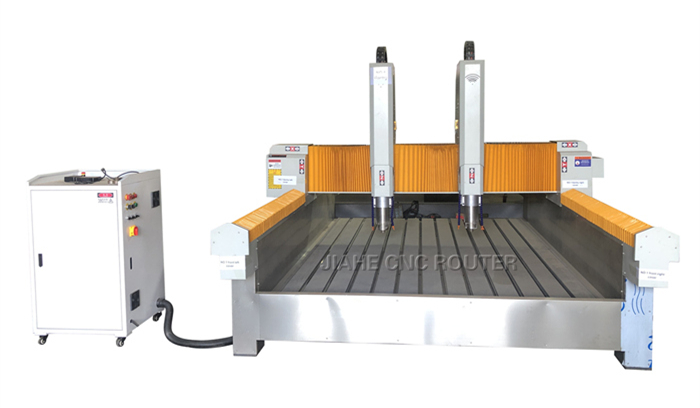

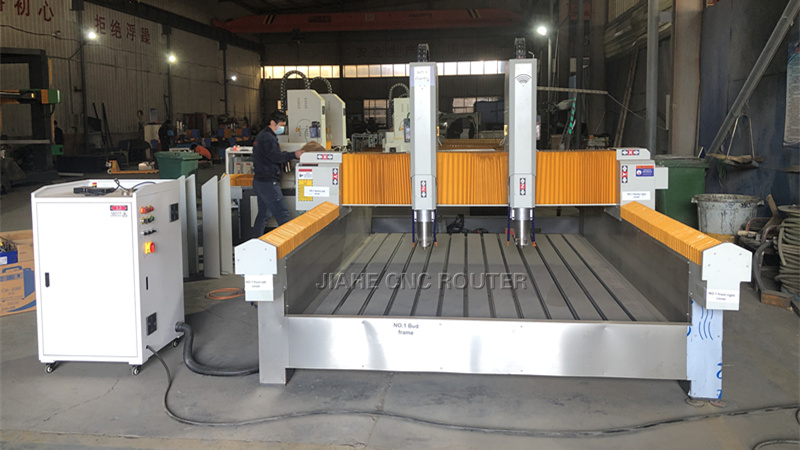

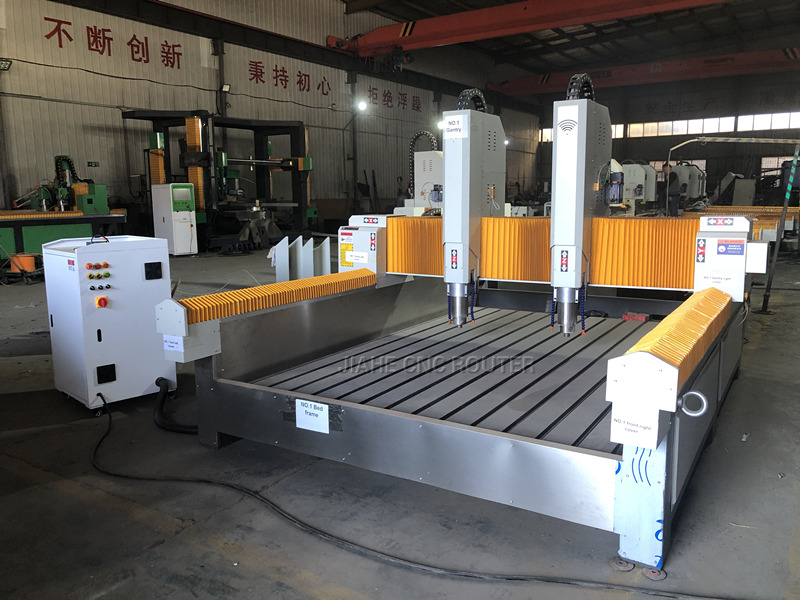

CNC Marble Engraving Machine
CNC marble engraving machine is a cutting-edge technological advancement in the field of stone carving. It is a type of CNC router specially designed to carve intricate designs and patterns on stones like marble, granite, and other similar materials.
Model: JK2030-2
Working size: 2000×3000×450mm
1.5kw servo motors and drivers
7.5kw water cooled spindle*2pcs
NK105G3 DSP controller
CNC marble engraving machine is ideal for use in a wide range of industries, including architecture, construction, interior design, and art. It is suitable for carving a variety of stones, including marble, granite, limestone, sandstone, and other similar materials. It is also used to create various decorative objects, such as fireplaces, fountains, sculptures, and other ornamental items.
Product Details:
CNC marble engraving machine is equipped with a high-speed spindle motor that allows for precise and intricate carvings. It has an advanced control system that enables the operator to input complex designs and patterns into the software, which the machine executes with great precision. The machine is easy to operate, making it a suitable choice for beginners and professionals alike.
Product Advantage:
One of the key advantages of CNC marble engraving machine is its ability to produce high-quality carvings in a short amount of time. It is capable of producing intricate designs and patterns that would be difficult to achieve by hand, which saves time and labor costs. The machine is also highly accurate, ensuring that the final product is of high quality and meets the desired specifications.
Technical parameters of CNC marble engraving machine:
NO. | Description | Parameter |
1 | Name | JK2030-2 double heads stone cnc |
2 | X,Y,Z Working Area | 2000x3000x450mm |
3 | Table Size | 2000*3000mm |
4 | Table type | Aluminum t-slot and PVC table |
5 | Machine Structure | large square tube thickened steel, double-layer platform structure |
6 | X, Y Structure | Helical rack pinions,30mm Hiwin linear square guide rails |
7 | Z Structure | Ball Screw 2510, 30mm Hiwin linear square guide rails |
8 | Water bed | 1.2mm ss stray |
9 | Max.Speed | 0-20000mm/min |
10 | Max. Working Speed | 0-10000mm/min |
11 | Spindle Power Motor | 7.5kw water cooled spindle*2pcs |
12 | Spindle Speed | 0-24000RPM |
13 | Motor and driver | China servo motors 1.5kw and drivers, z axis break motor |
14 | Working Voltage | 380V,3PH |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | NK105G3 controlling system |
17 | Lubrication system | Automatic oil lubrication system |
18 | Tools size | 3.175mm-16mm |
19 | Collet | ER32 |
20 | Software | Artcam software |
21 | Running Circumstance | Temperature: 0℃～45℃ |
23 | Packing Size | 4200*2250*2230mm |
24 | Net Weight | 2200KG |
25 | Gross Weight | 2300KG |

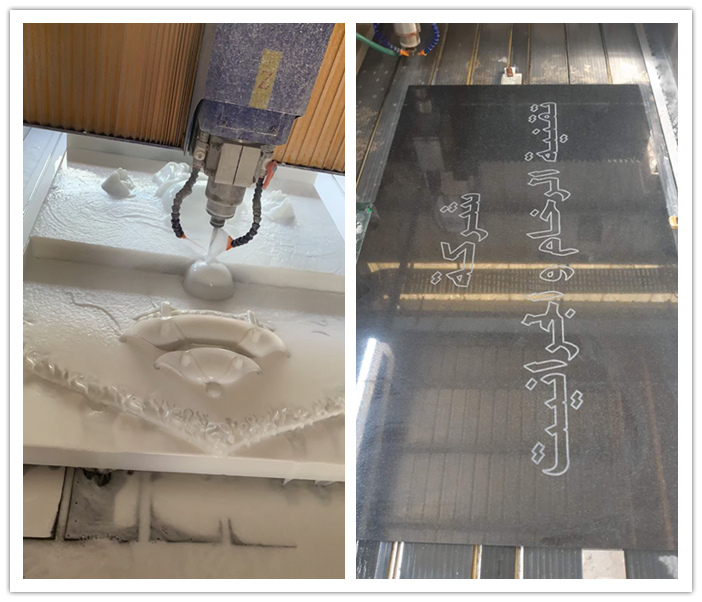

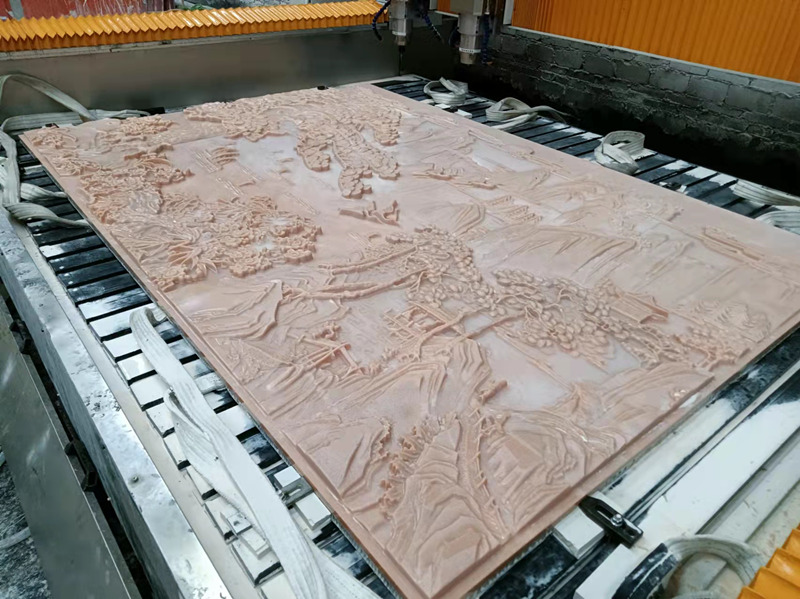

Application Material:
CNC marble engraving machine is capable of carving a variety of materials, including marble, granite, limestone, sandstone, and other similar materials. These materials are commonly used in architecture and construction for countertops, flooring, cladding, and other decorative elements. The machine is also suitable for carving other materials, such as wood, plastic, and metal, making it a versatile choice for professionals in different fields.
Overall, CNC marble engraving machine is a highly advanced piece of technology that offers numerous advantages over traditional stone carving techniques. Its ability to produce high-quality carvings quickly and accurately makes it an attractive choice for professionals in various industries. With its user-friendly interface and versatility, CNC marble engraving machine is a valuable machine for anyone looking to create intricate designs and patterns on stone and other materials.
