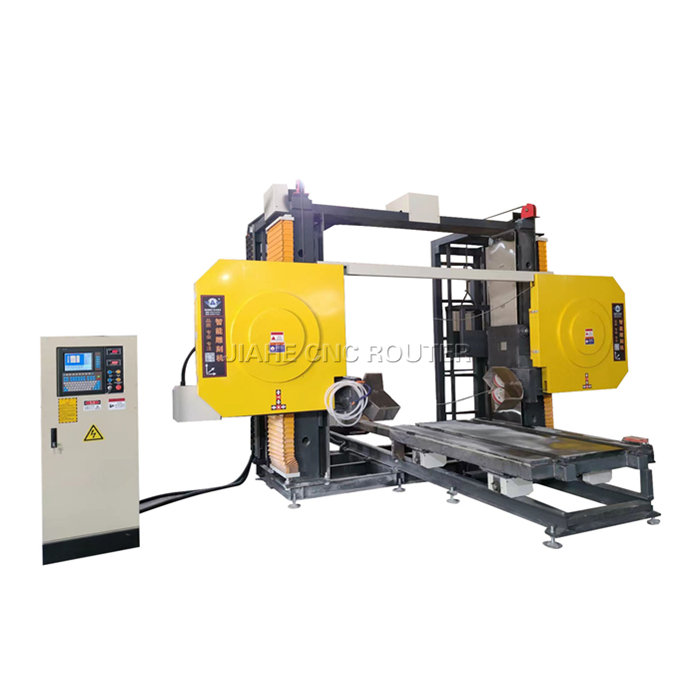

Wire Saw CNC Machine For Stone Cutting
Wire saw CNC machine for stone cutting is equipped with a high-quality wire saw, which can cut through various types of stone materials quickly and accurately.
Model: JK-2500L
Max.cutting length: 2500mm
Applicattion: use for cutting marble, granite

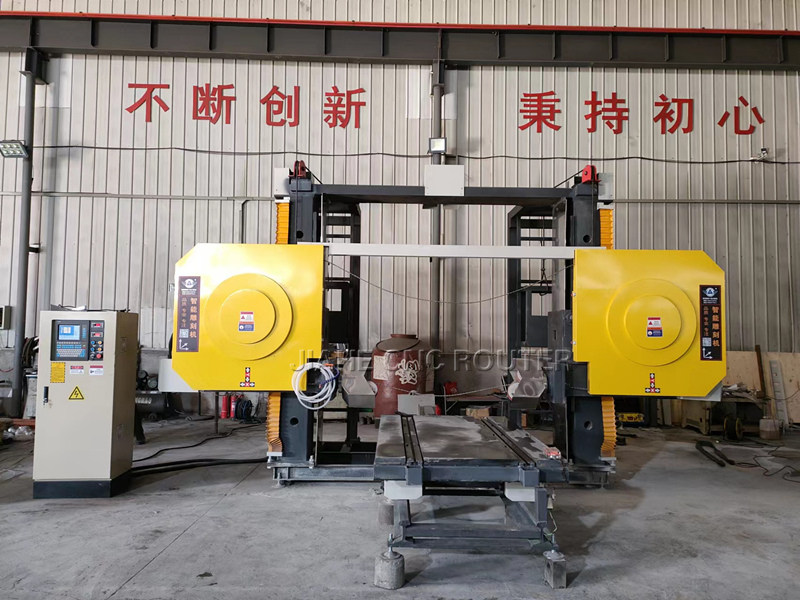

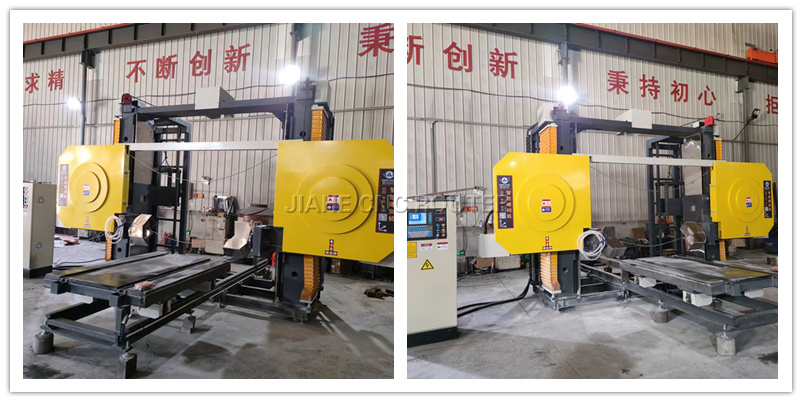

Wire saw CNC machine for stone cutting consists of a strong and stable base, a cutting platform, a wire saw assembly, and a control system. The machine can cut stone slabs into desired sizes and shapes.
Features of CNC machine for stone cutting:
High cutting speed: The wire saw cutting machine is equipped with a powerful motor and a high-quality wire saw, ensuring fast cutting speed.
Precise cutting control: The machine allows for precise control over the cutting parameters, such as wire tension and speed, allowing operators to achieve accurate cutting results.
Easy maintenance: The machine is designed with easy access to components, making routine maintenance and repair work convenient and time-saving.
Technical parameters of CNC machine for stone cutting:
Model No. | JK-2500L |
Quantity of wire cutter | 1 piece |
Max.cutting length（mm） | 2500 |
Diameter of wire cutter（mm） | ∮6.6-11(Optional） |
Linear cutting speed（m/s） | 0-40 |
Tension（kg） | 250 |
Cooling water quantity（L/min） | 4 |
Main motor power（KW） | 7.5 |
Total power（KW） | 11 |
Voltage/frequency（V/Hz） | 380/50 |
Applications and Materials:
CNC machine stone cutting is widely used in the stone industry for various applications, including:

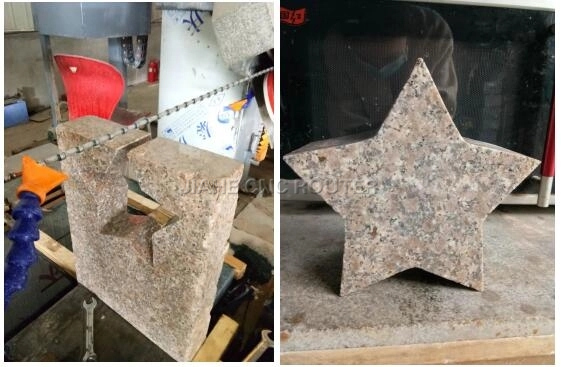

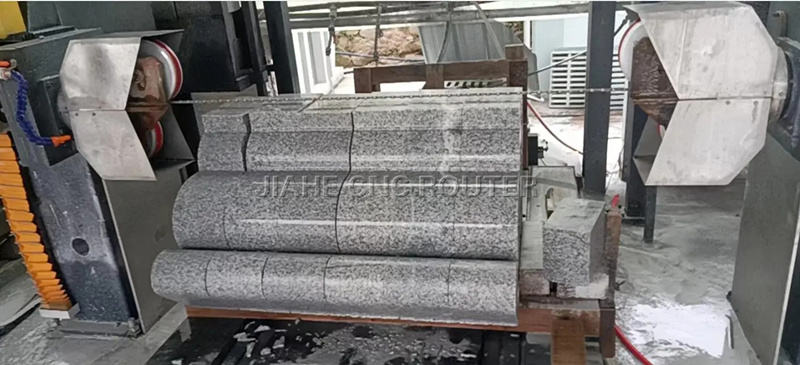

Slab cutting: The machine can cut stone slabs into desired sizes and shapes.
Architectural shaping: It is suitable for shaping stone materials for architectural purposes, such as columns, pillars, and sculptures.
Stone mining: It is used for extracting large stone blocks from quarries.
Stone processing: The machine can be used for processing different types of stone materials, including granite, marble, limestone, sandstone, and more.
