CNC Marble Stone Cutting Machine

CNC marble stone cutting machine is advanced processing machine that offers several advantages for the stone industry.

Model:JK-2030SG
Working size: 2000*3000*500mm
Motor: Servo
Control system: Weihong/DSP

Contact Now E-Mail Telephone WhatsApp
Product Details

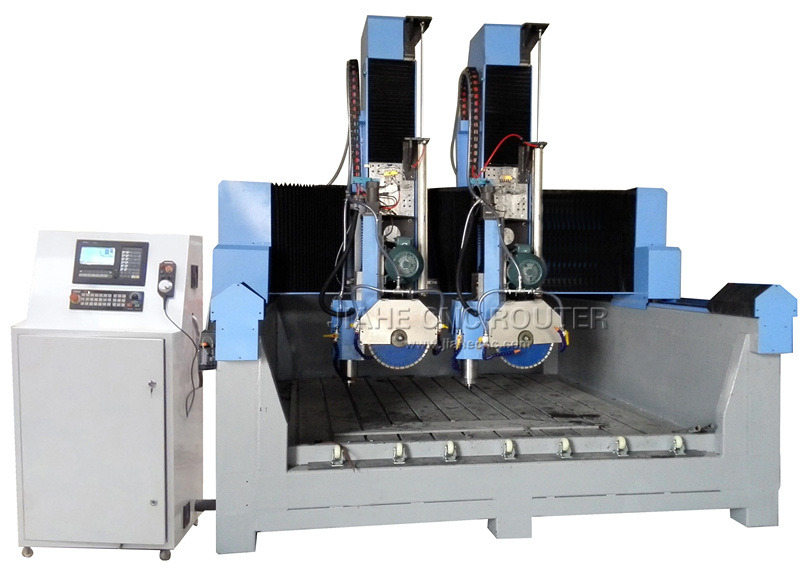

CNC marble stone cutting machine with working size 2000*3000*500mm, which can precisely cut and engrave different types of natural stones, for example, marble, granite, and other natural stones, transforming them into exquisite artworks, furniture pieces, and decorative items.

CNC Marble Stone Cutting Machine

Advantages of CNC marble stone cutting machine:

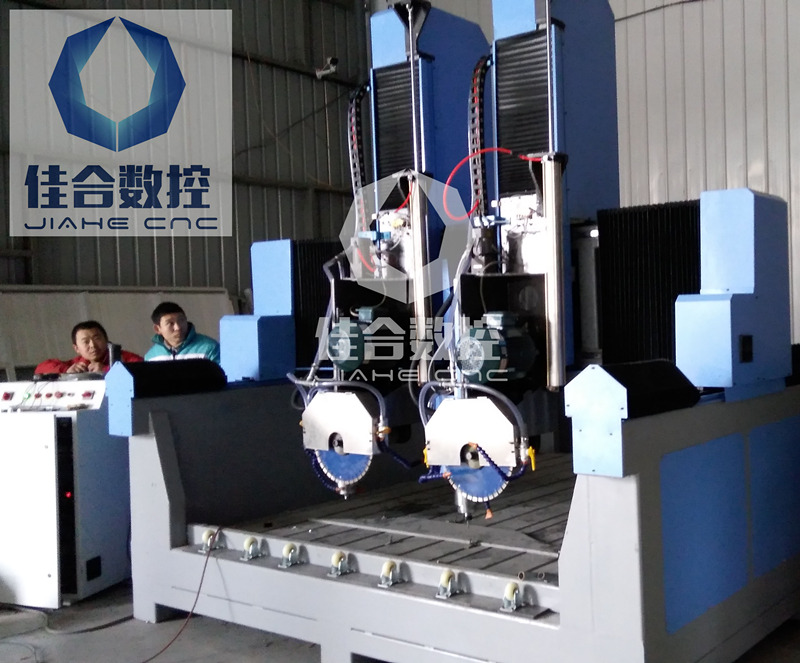

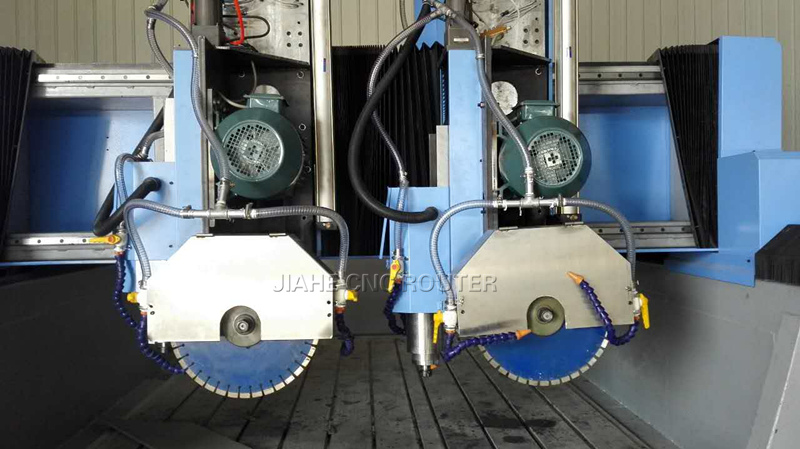

- Time-saving: stone carving cutting machine has both spindles and blades, which can perform complex cutting and carving operations in a fraction of the time that it would take a human operator, reducing production time and increasing output.

- Cost-effective: CNC marble stone cutting machine can replace multiple manual laborers, reducing labor costs and increasing productivity.

- Consistency: the machine can produce identical copies of the same design or pattern, ensuring consistency in the finished product, especially in the case of mass production.

CNC Marble Stone Cutting Machine

Technical parameters of CNC marble stone cutting machine:

Specification name

JK-2030SG

Axis
traveling
area

X axis traveling area

1000mm*2

Y axis traveling area

3000mm

Z axis traveling area

500mm

Table size

2100*3100mm

Structure

Table surface

aluminum alloy+ABS

X/Y/Z axis

X/Y rack& gears, Z ball screw

Guide rails

PMI/HIWIN square linear rails made in Taiwan

Speed

Max. running speed

30000mm/min

Max. working speed

18000mm/min

Accuracy

Motion Positioning Accuracy

0.05mm

Repositioning Accuracy

0.05mm

Spindle

Power

Water cooled 5.5kw*2

Speed

0-24000rpm

Driving mode

Servo

Software movement environment

Windows98/2000/XP

Working voltage

AC380V/50HZ

Dictate Formate

G code, *.u00, *.mmg, *.plt

Software

Powermill software

Control system

Weihong/DSP control system

Packing size

3550*2250*1990mm

Net weight/ Gross Weight

2300kg/2600kg

CNC Marble Stone Cutting Machine


CNC marble stone cutting machine has various applications, including:

- Architectural features: CNC marble stone cutting machine can produce stone columns, balustrades, stairs, and other ornamental elements for architectural projects.

- Art works: the machine can create sculptures, decorative tiles, and other artworks from natural stones.

CNC Marble Stone Cutting Machine
