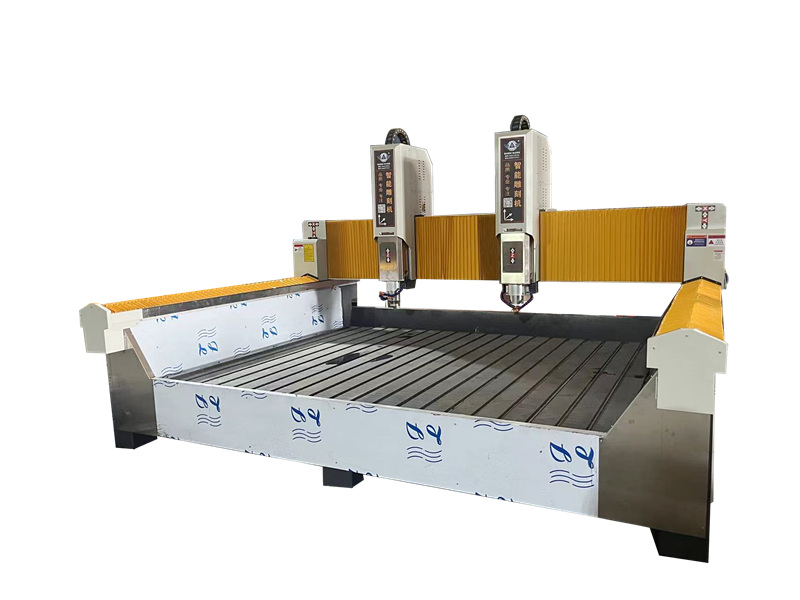

Granite Stone Engraving Machine
Granite stone engraving machine is a type of powerful industrial equipment that is widely used in the stone processing industry. It is an indispensable tool for processing large volumes of granite and other similar materials.
Model: JK-2520
Working size: 2500×2000×400mm
1.5kw servo motors and drivers
7.5kw water cooled spindle*2pcs
DSP control system
Granite stone engraving machine JK-2520 is suitable for the stone processing industry, including stone engraving and carving. The machine can work with various types of stones, including granite, marble, and limestone.
Advantages of granite stone engraving machine:
- Heavy-duty design that can withstand high-stress operations.
- High-speed processing capabilities that save time and increase productivity.
- With a powerful spindle motor, it can easily carve through tough and dense materials like granite.
- It can produce intricate designs and patterns with high accuracy and precision.
Technical paramters of granite stone engraving machine:
NO. | Description | Parameter |
1 | Name | JK-2520 double heads stone cnc |
2 | X,Y,Z Working Area | 2500x2000x400mm |
3 | Table Size | 2500x2000mm |
4 | Table type | Aluminum t-slot and PVC table |
5 | Machine Structure | large square tube thickened steel, double-layer platform structure |
6 | X, Y Structure | Helical rack pinions,30mm Hiwin linear square guide rails |
7 | Z Structure | Ball Screw 2510, 30mm Hiwin linear square guide rails |
8 | Water bed | stainless steel |
9 | Max.Speed | 0-20000mm/min |
10 | Max. Working Speed | 0-10000mm/min |
11 | Spindle Power Motor | 7.5kw water cooled spindle*2pcs |
12 | Spindle Speed | 0-24000RPM |
13 | Motor and driver | China servo motors 1.5kw and drivers, z axis break motor |
14 | Working Voltage | 380V,3PH |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | DSP controlling system |
17 | Lubrication system | Automatic oil lubrication system |
18 | Tools size | 3.175mm-16mm |
19 | Collet | ER32 |
20 | Software | Artcam software |
21 | Running Circumstance | Temperature: 0℃～45℃ |
23 | Packing Size | 3700*2250*2230mm |
24 | Net Weight | 2200KG |
25 | Gross Weight | 2300KG |
Parts show of granite stone engraving machine:

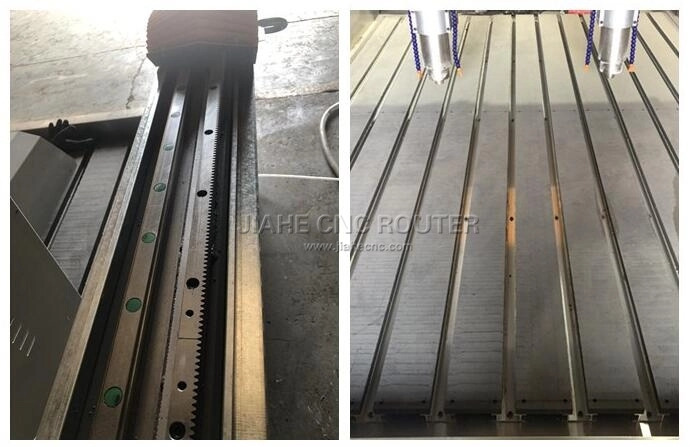

30mm linear rails Aluminum T-slot table

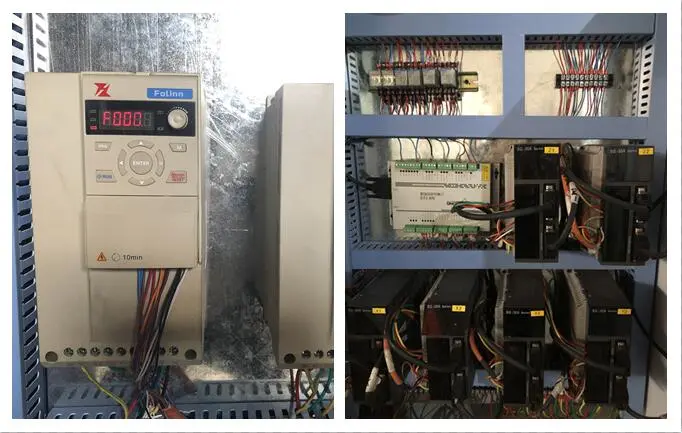

Fuling inverter NK105 board & servo drivers
Samples of granite stone engraving machine:

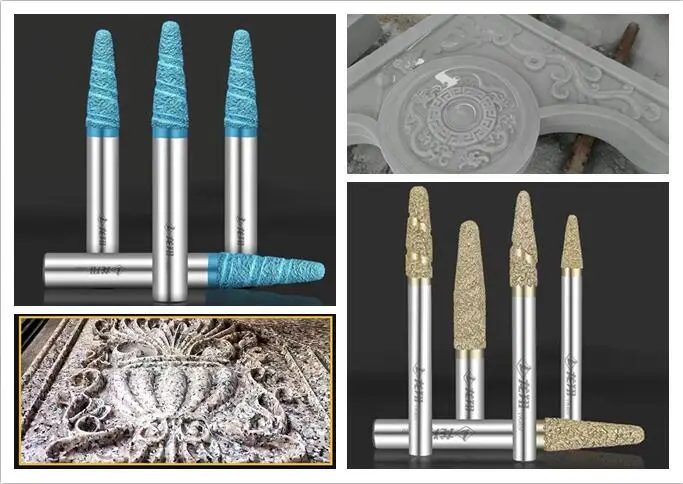

Different tools are selected on stone cnc machine for marble granite and quartz
Tools for engraving granite Tools for engraving marble

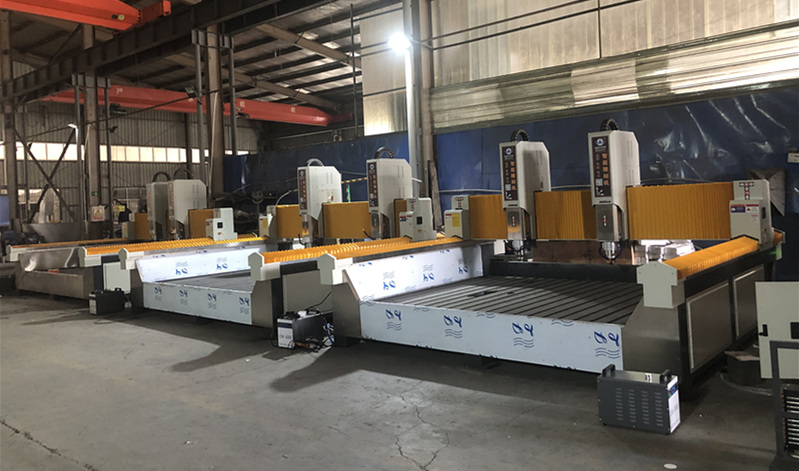

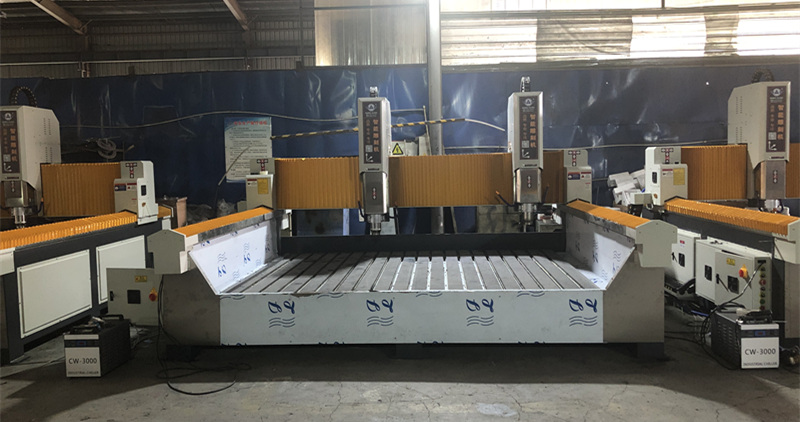

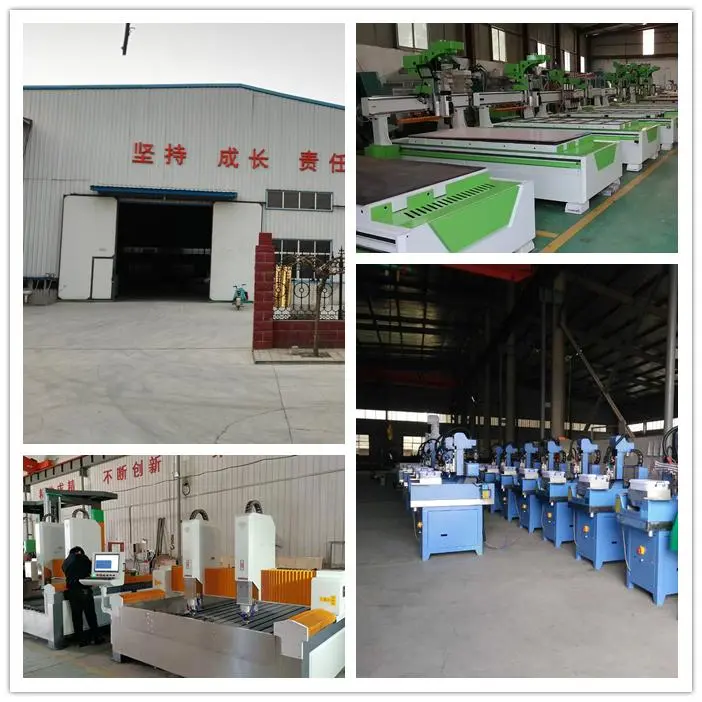

Factory show
