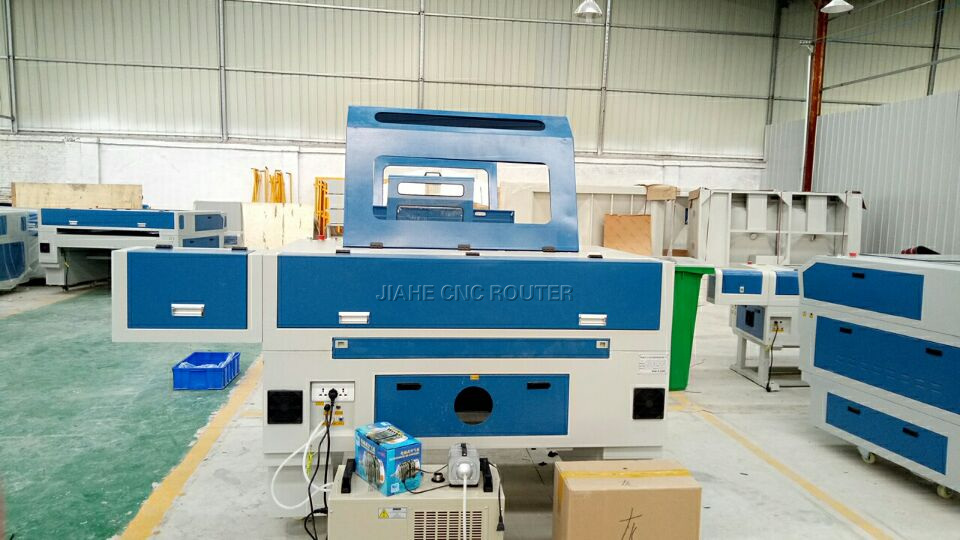

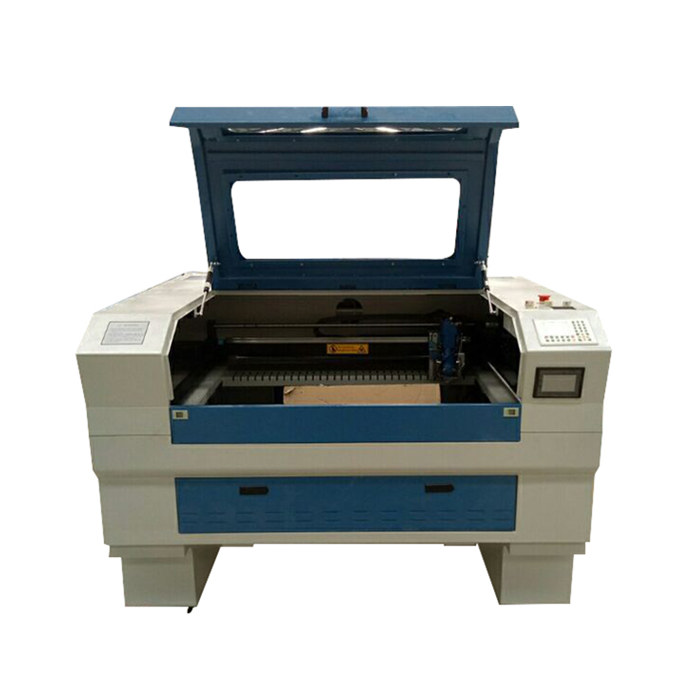

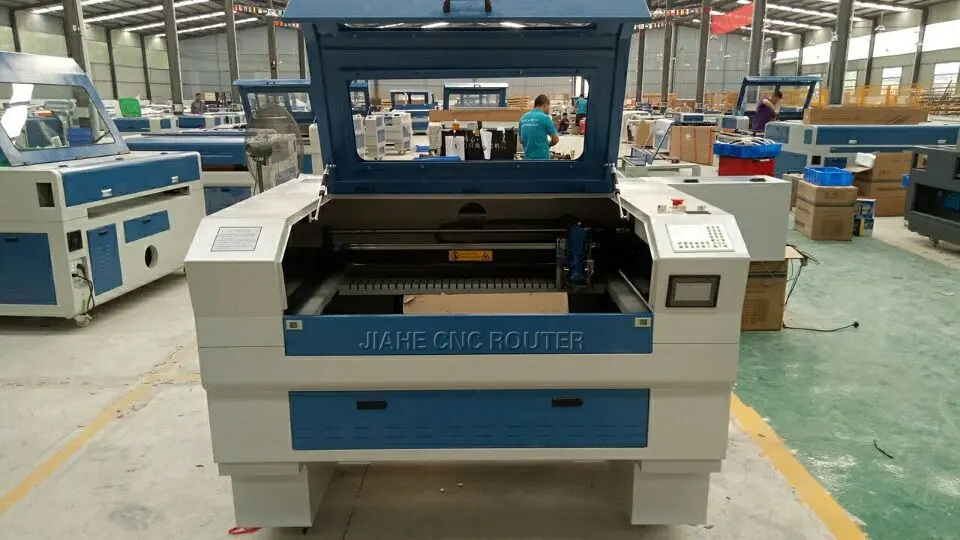

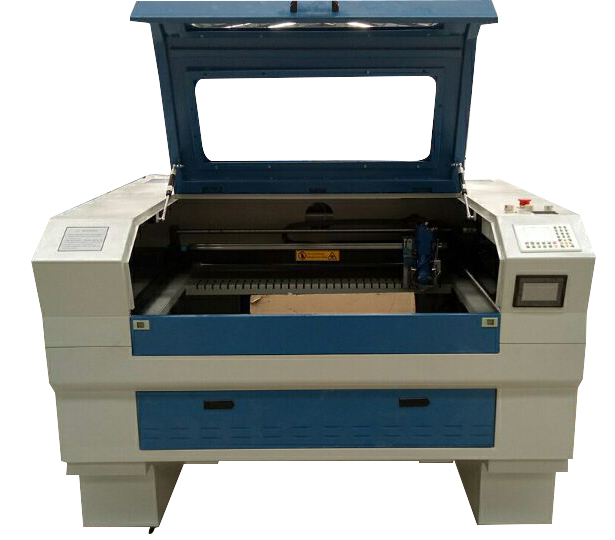

Mixed Laser Cutting Machine
Mixed laser cutting machine can cut both metallic and non-metallic materials, thereby giving users more scope for creating designs.
Model: JK-1390
Working size: 1300mm x 900mm
Laser power: 130w Reci
Mixed laser cutting machine with a working area of 1300mm x 900mm can cut a variety of materials including metal, acrylic, wood, MDF, leather, fabric, and many more. So, it is widely used in industries like advertising, decoration, metal processing, IT, and handicrafts.
Technical parameters of mixed laser cutting machine:
1 | Working area | 1300mm x 900mm |
2 | Laser power | 130W RECI |
3 | Engraving speed | 0-64000mm/min |
4 | Cutting Speed | 0-36000mm/min |
5 | Preposition accuracy | ±0.1mm |
6 | Cutting Platform | Blade or Honeycomb table |
7 | Driving system | Stepper motors |
8 | Cooling mode | Circulating-water cooling and protection system |
9 | Minimum letter size | English Letter: 1.0mm×1.0mm |
10 | Power Supply | AC220V 50HZ |
11 | Dictate format | BMP,HPGL,PLT,DST,DXP,AL |
12 | Compatible Software | CorelDraw ,AutoCAD transmit directly |
13 | Operating Temperature | 5°C-40°C |
14 | N.W/G.W | 400kg/450kg |
15 | Packing dimension | 1950*1450*1350mm |
Parts and accessories of mixed laser cutting machine:

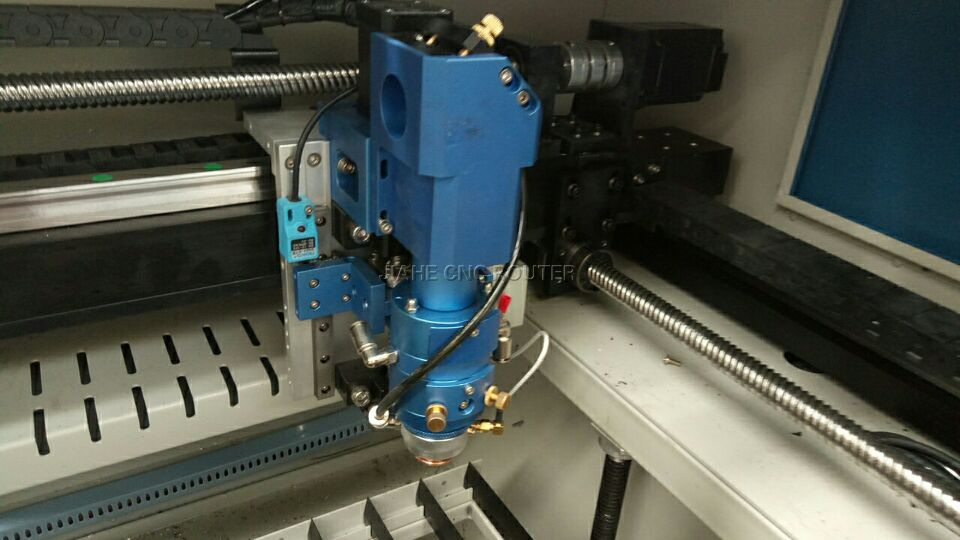

Special laser head for metal cutting.

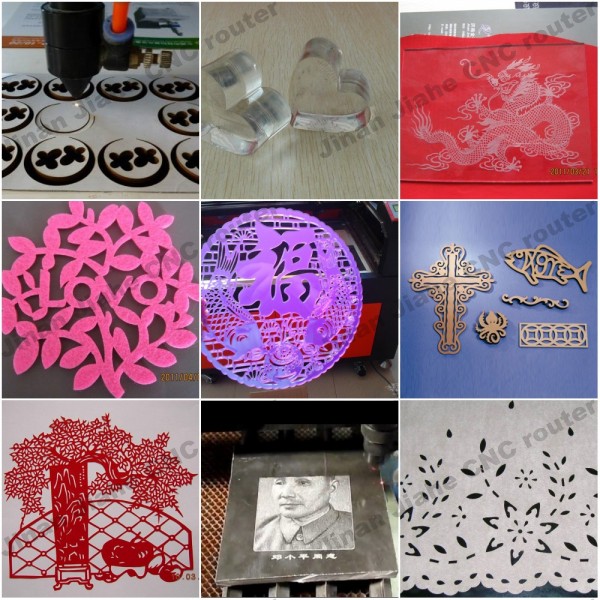

Mixed laser cutting machine is designed to cut a wide range of materials. Some of the common materials that can be cut using this machine include;
1. Metal materials - Metals such as stainless steel, mild steel, and aluminum plates.
2. Non-metallic materials - Non-metallic materials like acrylic, MDF, leather, fabric, and paper.
3. Cords - Various cords such as fiber fabric, nylon, and polyester.
4. Plastics - Plastics like PVC, ABS, and POM.
