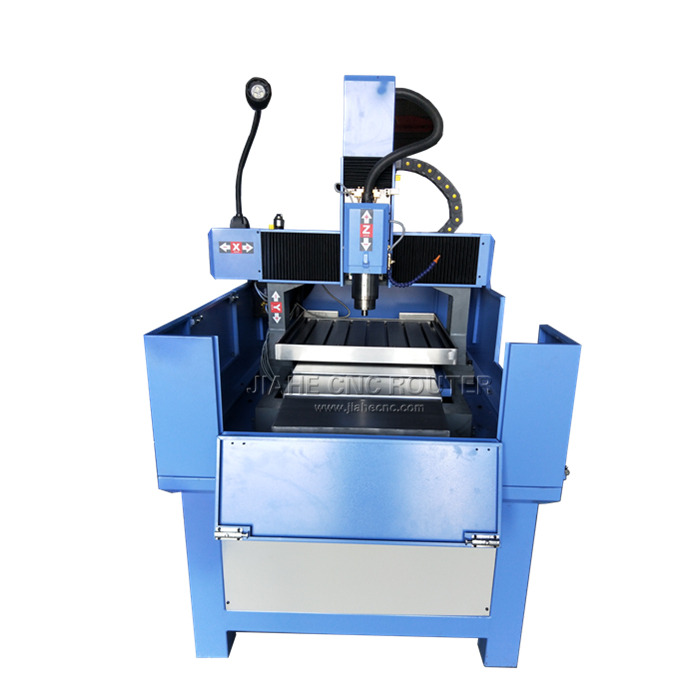

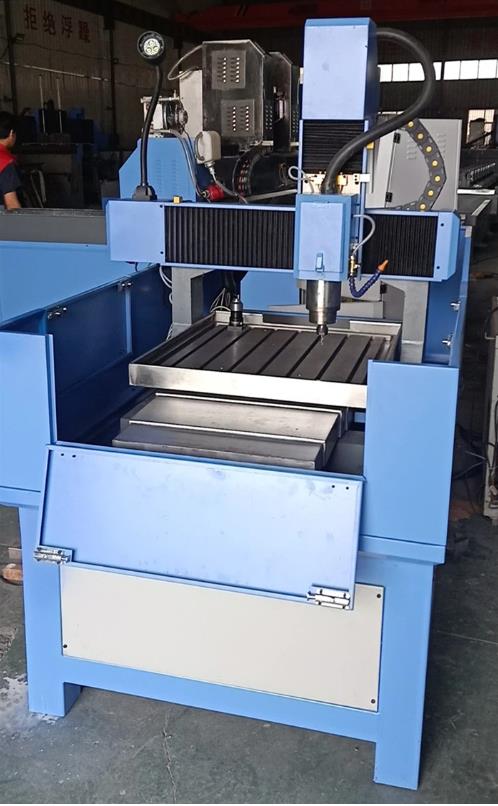

6060 CNC Engraver For Metal

6060 CNC engraver for metal is a highly efficient machine that makes it possible to efficiently complete engraving tasks. It features a unique combination of high precision and speed, with a high-speed spindle motor and a maximum spindle speed that reaches up to 24,000 RPM to ensure quick and accurate engraving.

Contact Now E-Mail Telephone WhatsApp

Product Details

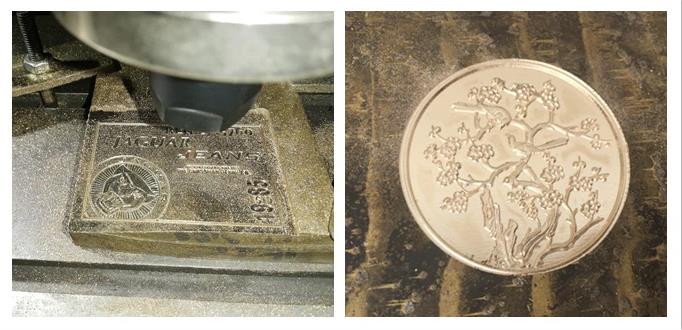

CNC engraver for metal is a great tool for accurately and quickly engraving a variety of materials. It is mainly used for producing text, graphics, logos, or 3D reliefs on metal material or any surface. The metal CNC engraver is designed with cutting/engraving technology that ensures precision accuracy and high speed when it comes to metal engraving.

Technical parameters:

Machine body	Cast iron
Working area(XYZ axis)	600600200mm
Moving type	Table moving
X Y Z rail	Taiwan HIWIN/PMI 20mm linear square guide rail
X Y Z transmission	Taiwan High precision TBI 20mm ball screw
Spindle	3.2kw AC380V/AC220V water cooled spindle
Spindle speed	24000rpm
Inverter	3.7KW Fuling inverter
Motor	Servo motor(option: stepper motor)
Driver	Servo driver(option: stepper driver)
Auto Lubrication system	With
Electrical protection filters	With
Max. speed	15m/min
Max. working speed	8m/min
Voltage	AC380V three phase or AC220V
Collets	ER20 3.175-12.7mm
Repeat reposition accuracy	0.01mm
Cover	X Y Z cover
Y axis	TELESCOPICA PROTECTION STAINLESS METAL
Command	G code
Software	Artcam/ Ucancam
Control system	DSP wireless remote control

Main parts of CNC engraver for metal:

6060 CNC Engraver For Metal

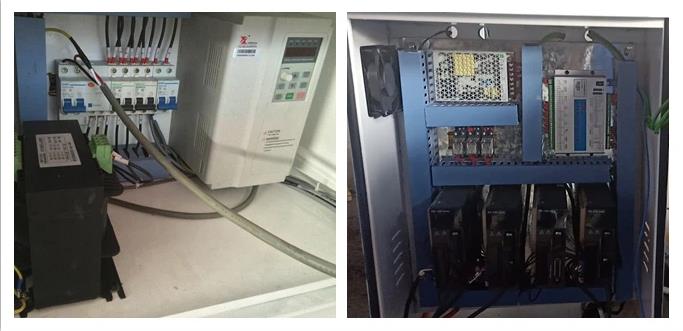

Fuling inverter Servo drivers

6060 CNC Engraver For Metal

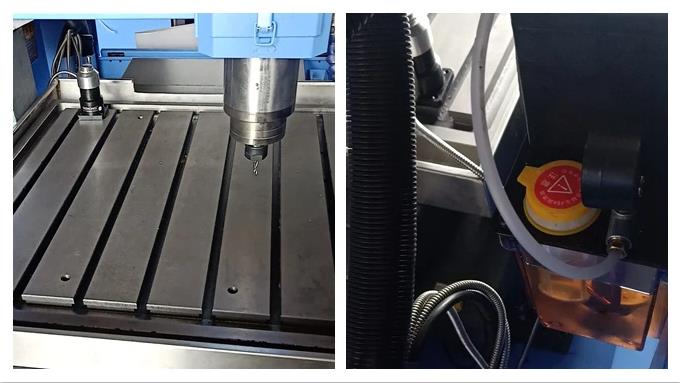

Casting iron working table Automatic lubrication pump

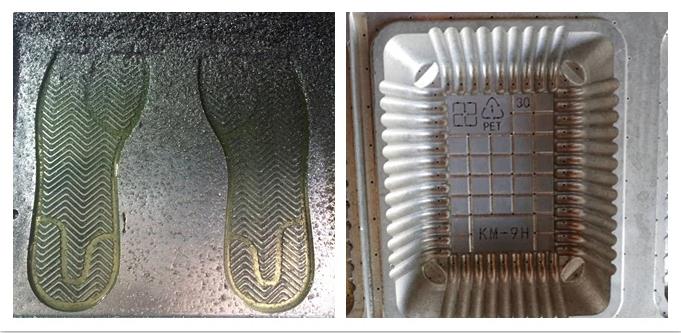

The 6060 CNC engraver for metal is a multi-functional metal engraving CNC router that is suitable for engraving, milling and cutting soft metals like aluminum and copper, as well as harder metals like stainless steel, carbon steel and alloy steel.
