3D CNC Metal Engraving Machine

3D CNC metal engraving machine is specially designed for small industrial production and home use. It is small in size, easy to operate. It is the best choice for starting a small business.

Model: JK-3030

Working size: 300×300mm

Spindle: 1.5kw water cooling

Contact Now E-Mail Telephone WhatsApp

Product Details

3D CNC metal engraving machine is suitable for use with a wide range of materials, including aluminum, steel, brass, and gold. Its target industries include jewelry making, industrial design, automotive manufacturing, and metalworking.

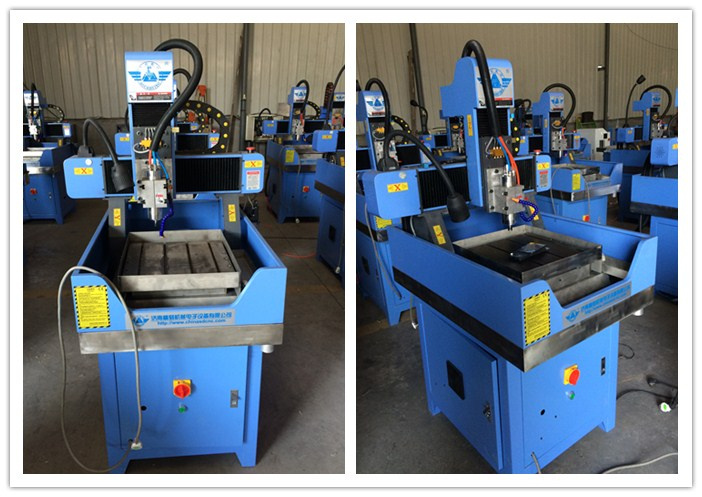

3D CNC Metal Engraving Machine

Features of 3D CNC metal engraving machine:

(1). The advantages of 3D CNC metal engraving machine are their high accuracy and efficiency, as well as their ability to create complex geometries and patterns that would be impossible to achieve by hand.

(2). Adopting advanced DSP digital control system with large liquid crystal display and graphical interface, it is easy to learn, operate and understand.

(3). Equipped with special 3D engraving software, it can directly read the design drawing of 3D art model and realize 3D engraving.

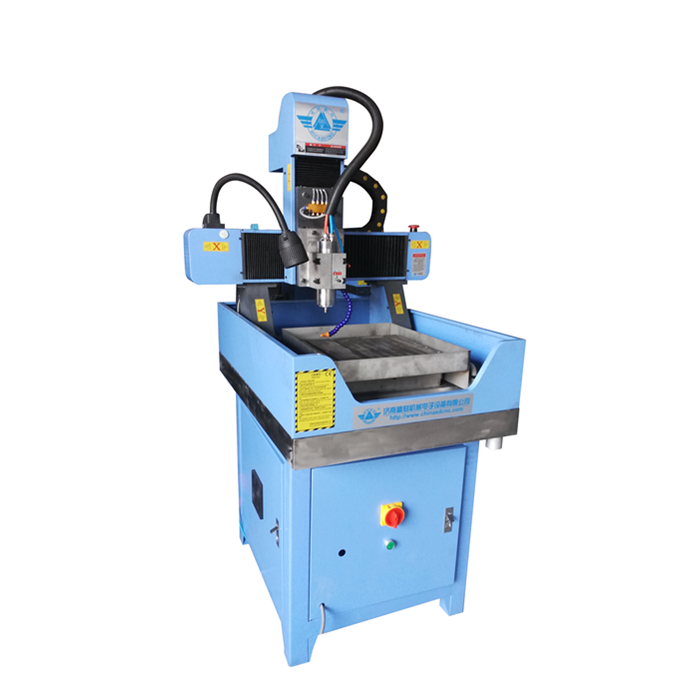

3D CNC Metal Engraving Machine

Technical parameters of 3D CNC metal engraving machine:

Product name	JK-3030
Machine body	Whole cast iron
Work dimensions(XYZ axis)	300300180mm
XYZ axis guide	HIWIN linear guide rail
XYZ transmission	TBI high precision ball screw
Body dimensions	110014001400mm
Max.speed	10m/min
Working speed	6-8m/min
Repeating accuracy	0.01mm
Software	Artcut/Type3/Artcam
Power source	AC220V/50HZ
Motor	Stepper motor/servo
Driver	Stepper driver/servo
Spindle	1.5KW water cooling
Spindle speed	0-24000rpm
Blade diameter	ER16 3.175mm-6mm
Control system	DSP
Command	HPGL,G code,u00*,mmg,plt
N.W	300kg
G.W	400kg

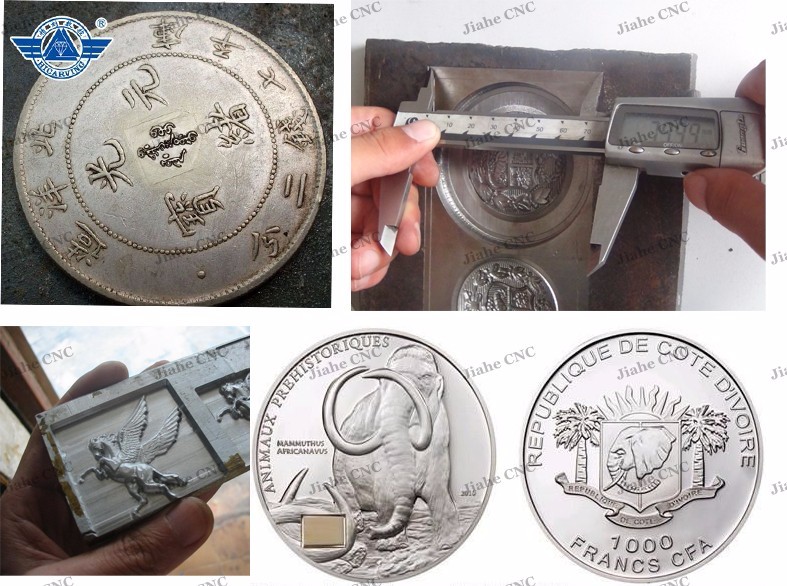

3D CNC Metal Engraving Machine

3D CNC metal engraving machine is indispensable tool for anyone who wants to achieve precision metalwork and create high-quality metal objects. Its applications include the creation of decorative metal objects, jewelry, automotive parts, and industrial components.

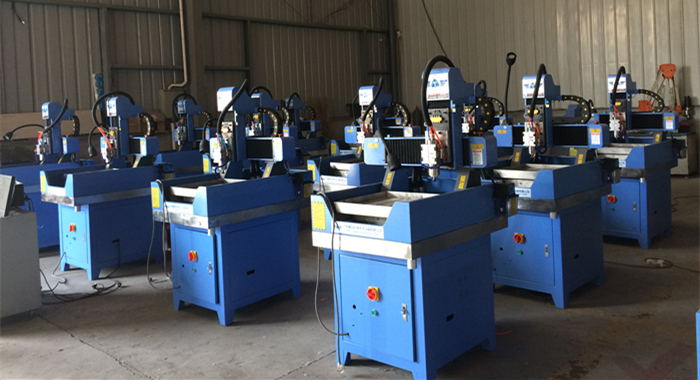

3D CNC Metal Engraving Machine
