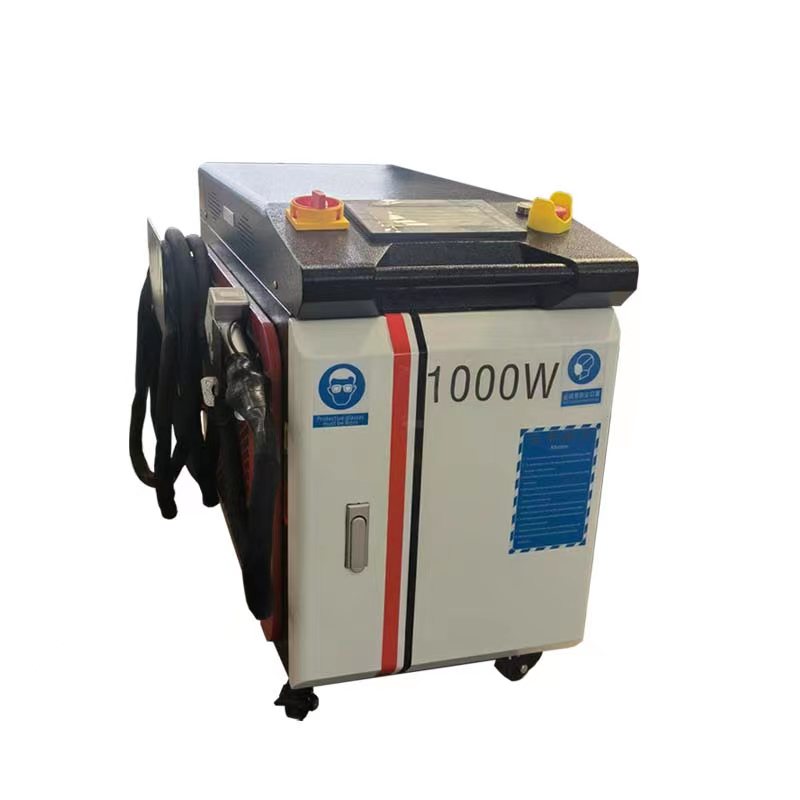

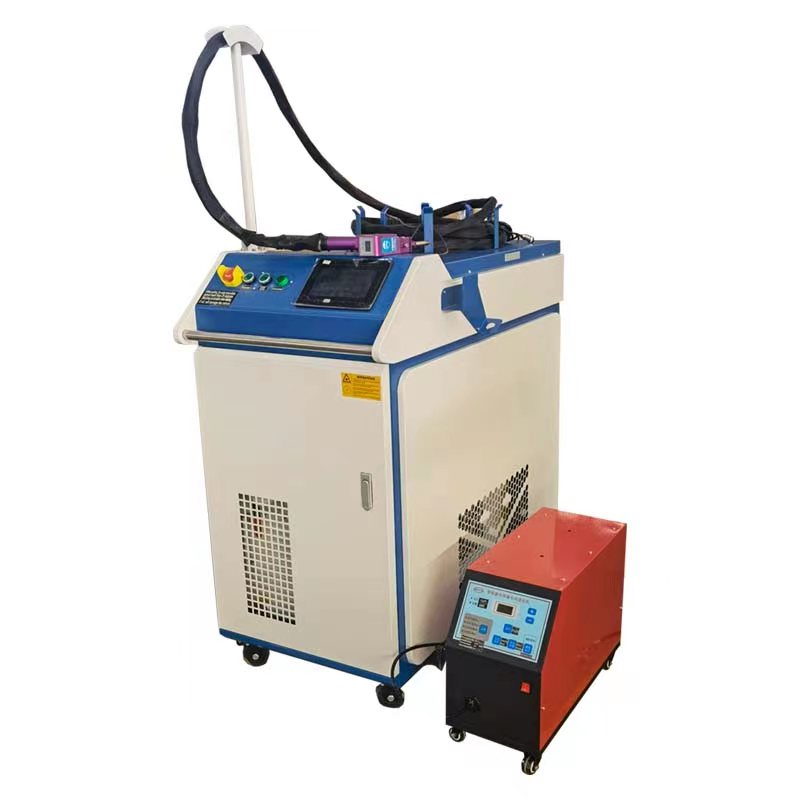

Handheld Laser Welding Machine

Handheld laser welding machine is convenient and flexible operation for spot welding, butt welding, overlay welding, sealing welding, and other welding methods.

Power: 1000w/1500w/2000w/3000w

Laser souce: Raycus / Max / JPT

Contact Now E-Mail Telephone WhatsApp

Product Details

Handheld laser welding machine can be suitable for jewelry welding and cutting,kitchenware manufacturing, automobile parts welding, mold manufacturing and repair, electronic products welding etc.

Handheld Laser Welding Machine

Advantages of handheld laser welding machine:

The machine is highly versatile, allowing it to weld a range of materials, including aluminum, stainless steel, and even copper.
The machine is extremely easy to use, requiring minimal training to operate. It is also much faster than traditional welding methods, allowing for increased productivity and cost savings.
The handheld design of the machine makes it highly portable and convenient, allowing for welding in hard-to-reach areas.

Overall, the handheld laser welding machine is a highly efficient and effective welding tool that provides numerous benefits over traditional welding methods.

Handheld Laser Welding Machine

Technical parameters of handheld laser welding machine:

Model	JK-HW-1000	JK-HW-1500	JK-HW-2000	JK-HW-3000
Laser Power	1000watt	1500watt	2000watt	3000watt
Laser Source	Fiber Laser Manufactured by Raycus / Max / JPT
Wavelength(nm)	1064 - 1080
Laser Mode	Continues / Pulsed
Beam Quality	M2<1.2	M2<1.2	M2<1.5	M2<1.5
Length of Fiber	5-10m (customized)
Interface	QBH
Welding Width	0.2-5mm (adjustable)
Laser Preview	Integrated Red Light Preview
Cooling	Integrated Water Chiller
Language	English
Power Supply	AC 220V, 50Hz/60Hz		AC 380V, 50Hz/60Hz
Security System	TSS - Trip Security System Available
Parameter Setting	Touch Panel
Welding Materials	Carbon Steel, Stainless Steel, Aluminum, Brass, Alloy etc.
Welding Speed	0-120mm/s (adjustable)
