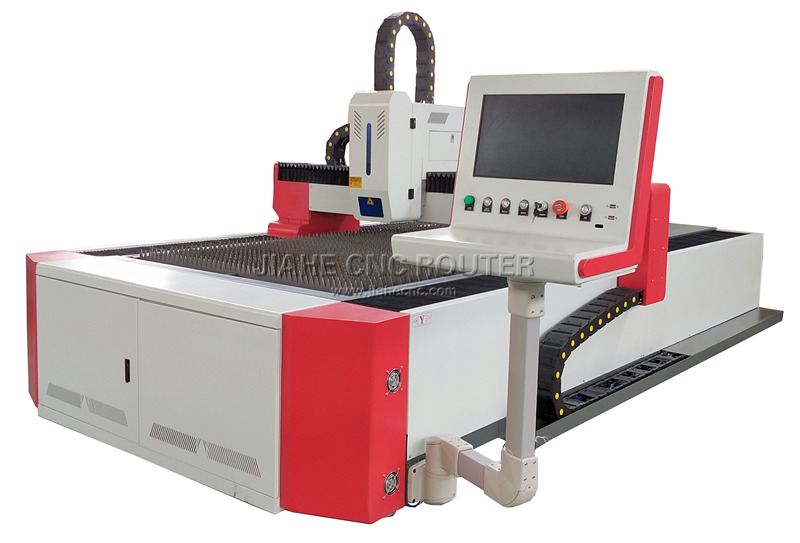

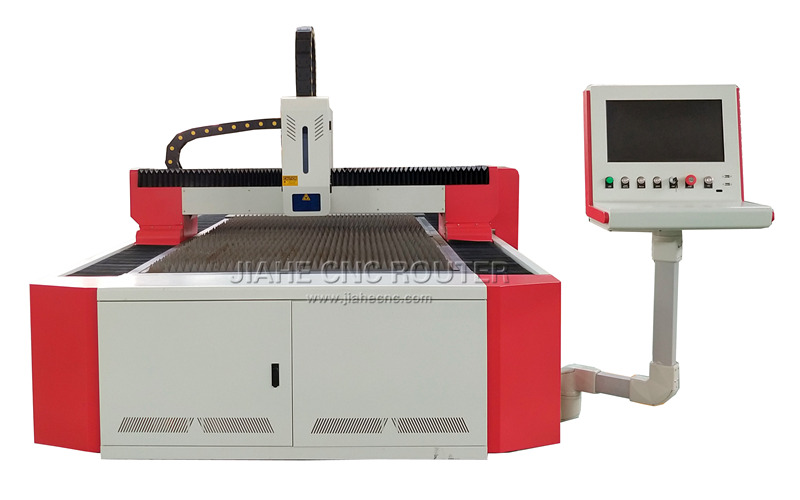

Metal Laser Cutting Machine
Metal laser cutting machine consists of a high-powered laser beam, a precision cutting head, and a control system. It can cut through a variety of metals, including steel, titanium, aluminum, and copper.
Model: JK-1530FL
Working size: 1500×3000mm
Power: 1000w
Metal laser cutting machine is suitable for a wide range of applications and industries. It can be used in manufacturing, engineering, automotive, aerospace, and many other fields. It is particularly useful in the production of small, intricate parts and components that require high levels of precision and accuracy.
Technical parameters of metal laser cutting machine:
Model | JK-1530 |
Working area | 1500×3000mm |
Fiber laser source | 1KW IPG |
laser head | America II-VI |
Y axis transmission system | TAIWAN TBI ball screw |
X Y axis servo motor | Japan YASKAWA (X: 750W Y:850W) |
Liner guide | Taiwan HIWIN (X:20MM Y:30MM) |
Software and control system | CypCut |
Towline | Germany IGUS |
Lens and mirror | America II-VI |
Water chiller | LW27 |
Positioning accuracy | ±0.05mm/m |
Positioning speed | 20m/min |
Power supply | 380V±10%/20A |
Weight | 3000kg |
Metal laser cutting machine 1000w test:
Material | Thickness(mm) | Speed(mm/s) | Gas Pressure(MPa) | Gas | Cutting Height |
Stainless Steel | 0.5 | >400 | 1 | N2 | 0.6 |
1 | 280~350 | >1.1 | N2 | 0.6 | |
2 | 90~120 | >1.5 | N2 | 0.6 | |
3 | 35~50 | >2.0 | N2 | 0.6 | |
4 | 15~25 | >2.0 | N2 | 0.6 | |
5 | 10~15 | >2.0 | N2 | 0.6 | |
Carbon Steel | 1 | 250~300 | 1 | O2 | 1 |
2 | 85~100 | 0.5~0.8 | O2 | 1 | |
3 | 58~70 | 0.25~0.4 | O2 | 1 | |
4 | 38~45 | 0.15~0.2 | O2 | 1 | |
5 | 28~35 | 0.15~0.2 | O2 | 1 | |
6 | 20~30 | 0.10~0.15 | O2 | 1 | |
8 | 15~18 | 0.10~0.15 | O2 | 1 | |
10 | 10~12 | 0.10~0.15 | O2 | 1 | |
Aluminium | 1 | 80-100 | 1 | O2 | 1 |
2 | 50-80 | 0.6~0.8 | O2 | 1 | |
3 | 30-50 | 0.25~0.4 | O2 | 1 |

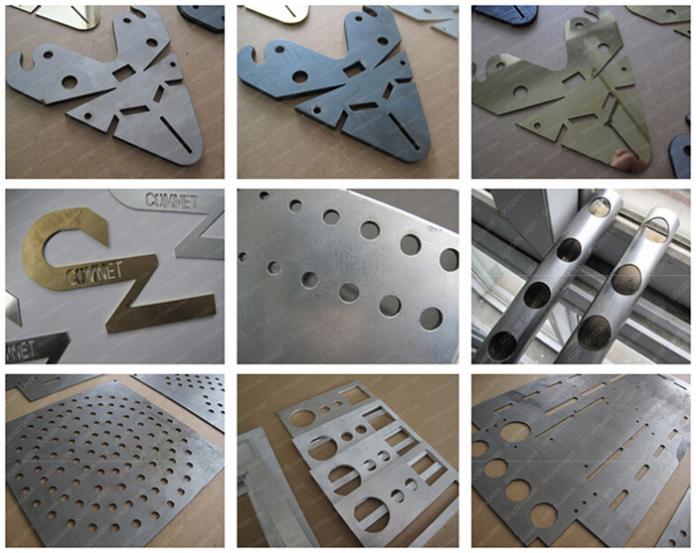

Metal laser cutting machine is compatible with a wide range of materials, including stainless steel, carbon steel, aluminum, copper, and titanium.
In conclusion, metal laser cutting machines offer superior performance, flexibility, and cost-effectiveness compared to older systems. They can be utilized in manufacturing industries that process different materials and offer a high degree of precision and output speed. Thanks to their reliability and flexibility, metal laser cutting machines are now considered a go-to choice for businesses that require accurate and efficient cutting machines.
