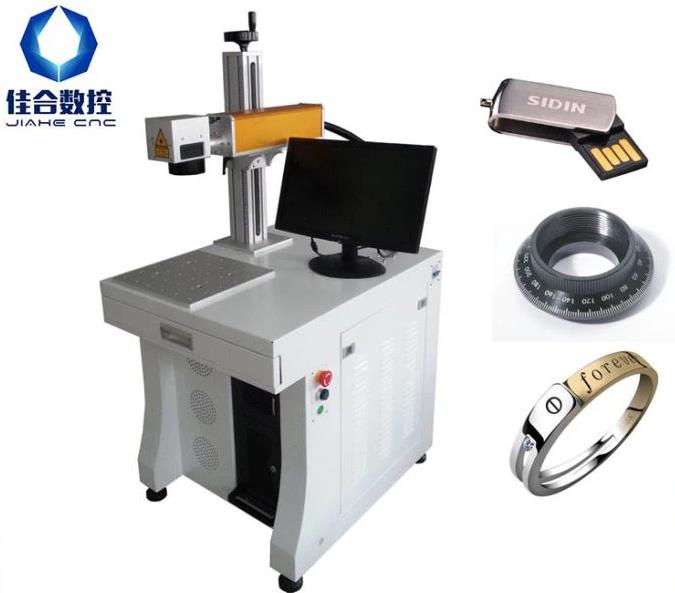

Fiber Laser Marking Machine

Fiber laser marking machine uses a laser beam to create permanent marks on the surface of different materials. The machine can achieve high-speed and high-accuracy marking by using a fiber laser and advanced optical scanners. The laser beam generated by the machine is of high quality and can produce marks with a resolution of 0.001mm. The machine comes with advanced software that allows for customization of marking content, including, text, images, and logos.

Parameters for fiber laser marking machine:

Laser power: 10W/20W/30W/50W

Laser Wavelength:1057-1070nm

Light beam quality: <2

Repeating precision: ±0.002

Marking range: 110*110mm/205*205mm

Marking depth: 0 ~1mm

Marking speed: 7000mm/s

Minimum character: 0.15mm

Minimum line width: 0.01mm

Repeating frequency: 20KHz~30KHz

Marking content: Graphics, text, bar codes, two-dimensional code, date, batch number, serial number

Graphic format supported: bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

working voltage: 220V±10%/50Hz/4A

Size: 570mm*270mm*200mm

Weight :60kg

Control interface: standard USB port

Working environment:Clean and dust free or dust less

Laser module life:100000~200000 hours

Features of fiber laser marking machine:

1. High-Performance Fiber Laser Source: The fiber laser marking machine uses high-performance fiber laser sources, which offers high laser beam quality, fast heat dissipation, and long life.

2. Advanced Optical Scanner: The optical scanner allows for high-speed and accurate marking of the material.

3. Easy to operate: The fiber laser marking machine is easy to operate, and its advanced software allows for customization of marking content.

4. Safe and Reliable: The fiber laser marking machine is designed with safety features that protect the user and the machine.

Advantages of fiber laser marking machine:

1. High Speed and Precision: Fiber lasers offer high-speed marking and can produce precise markings on materials.

2. Longevity: Fiber lasers have a lifespan of up to 100,000 hours, which makes them durable and cost-effective.

3. Low Maintenance: Fiber lasers require minimal maintenance, which reduces the operating costs of the machine.

4. Versatility: Fiber laser marking machines can mark on a wide range of materials such as metals, plastics, ceramics, and more.

Application Industries and Materials:

Fiber laser marking machine is widely used in several industries, including electronics manufacturing, medical devices, automotive, aerospace, and more. They can mark on a wide range of materials, including metals, plastics, ceramics, and more.
