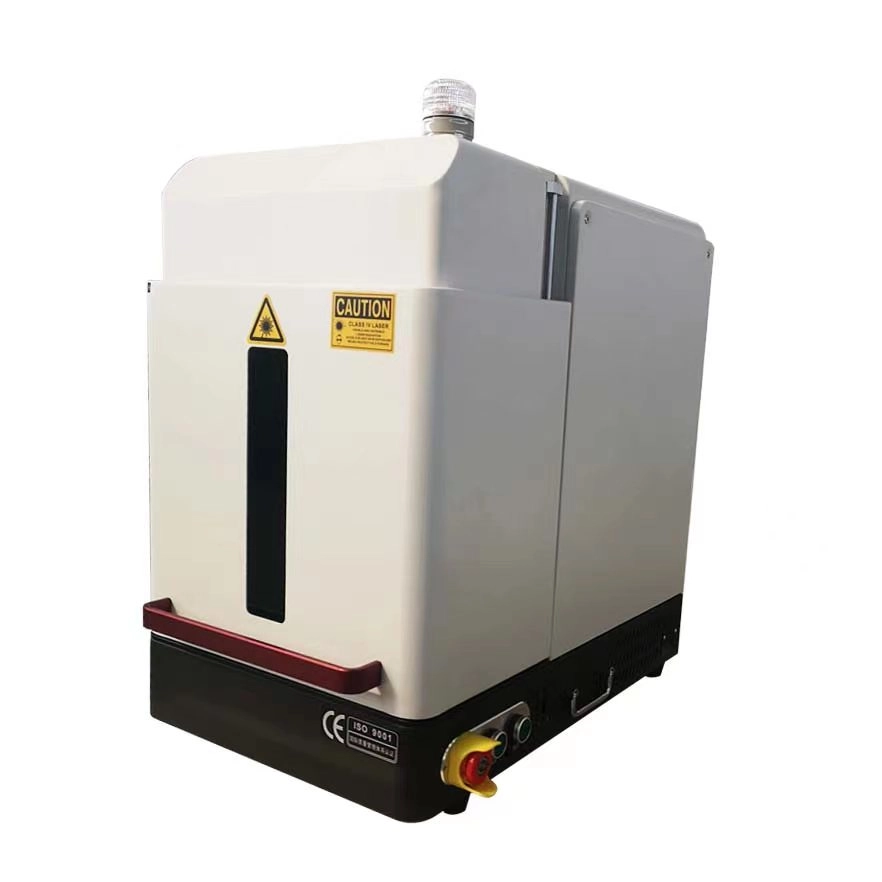

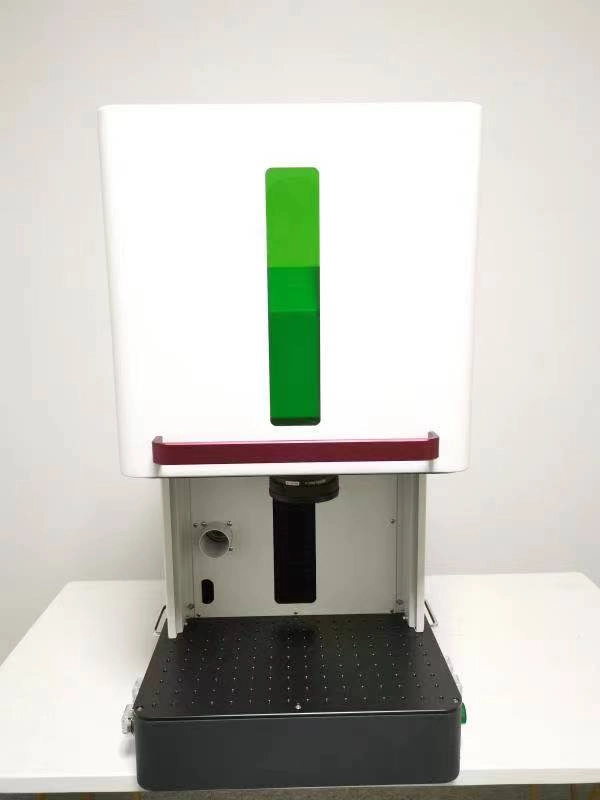

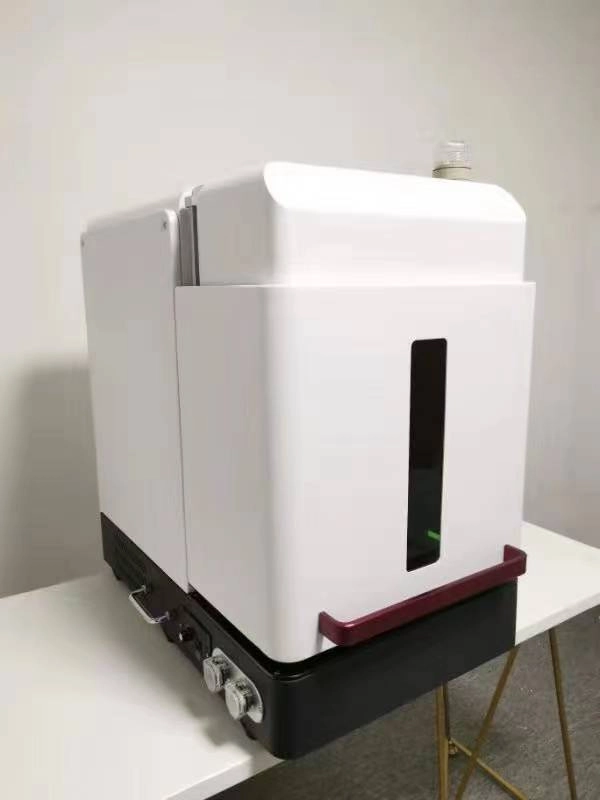

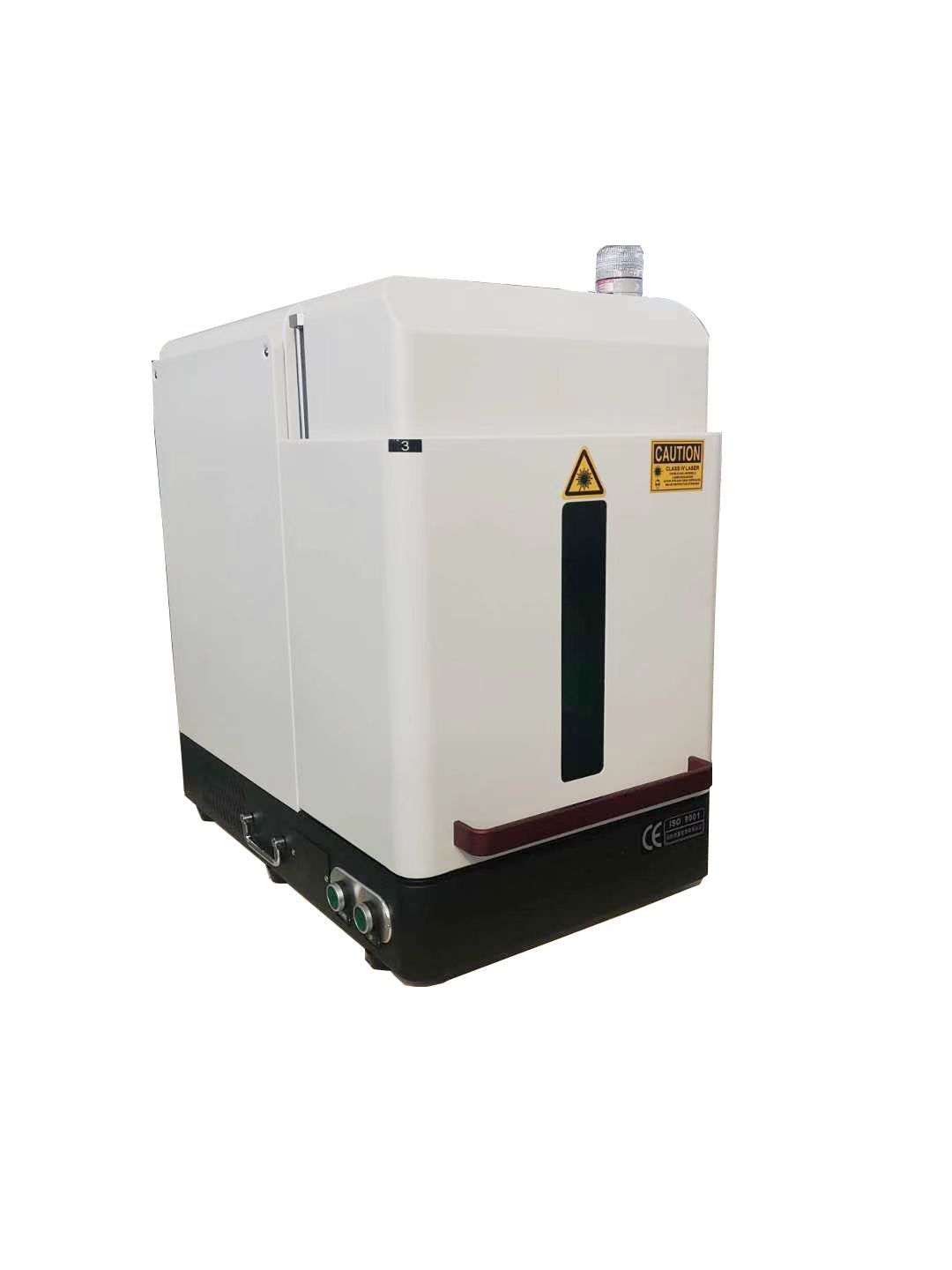

50w Fiber Laser Marking Machine
50w fiber laser marking machine is a highly advanced and versatile machine that has a wide range of applications across various industries. It is capable of producing high-quality markings, including text, logos, barcodes, and QR codes on a variety of materials.
Model: JK-FLM50
Power: 50w
Laser source: Raycus/JPT
Software: Ezcad
50w fiber laser marking machine is an advanced equipment widely used in industrial marking field. It utilizes fiber laser beam to mark on various materials with high precision and speed, such as stainless steel, carbon steel, aluminum, copper, brass and gold.
Features of 50w fiber laser marking machine:
1. High efficiency and high speed marking with no consumables required
2. Permanent marking, resistant to abrasion and corrosion
3. Non-contact marking process, no damage to the material surface
4. Wide range of applications on various materials, shapes and sizes
5. Easy to operate, simple maintenance
Technical parameters of 50w fiber laser marking machine:
| Laser power | 50W(optional RAYCUS/JPT) |
| Working area | 100*100mm/150*150mm/175*175mm/200*200mm/300*300mm |
| Life-span of Fiber Laser Module | 100 000hours |
| Marking speed | ≤8000mm/S |
| Software | EZCAD |
| Cooling Way | Air cooling |
| Min Line Width | 0.017mm |
| Min Character | 0.15mmx0.15mm |
| Wavelength | 1064nm |

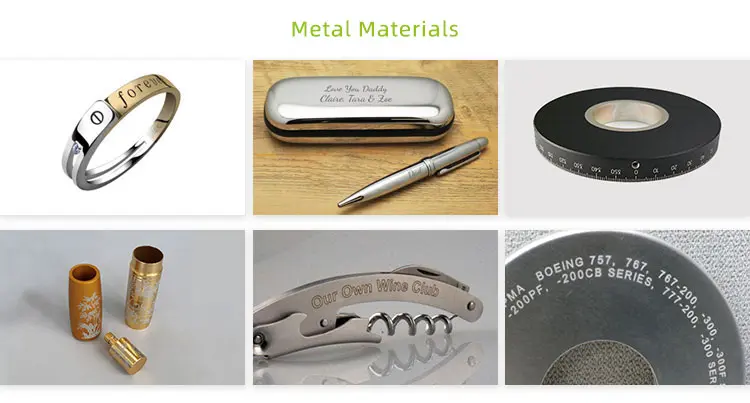

Applications of 50w fiber laser marking machine::
1. Electronic industry – PCB marking, IC chips, computer parts, mobile phone parts, etc.
2. Medical industry – medical devices, surgical instruments, implants, etc.
3. Aerospace and aviation industry – aircraft parts, engines, etc.
4. Automotive industry – car parts, engine blocks, gear parts, etc.
5. Jewelry industry – gold, silver, platinum, diamond marking, etc.
Packing of 50w fiber laser marking machine:
