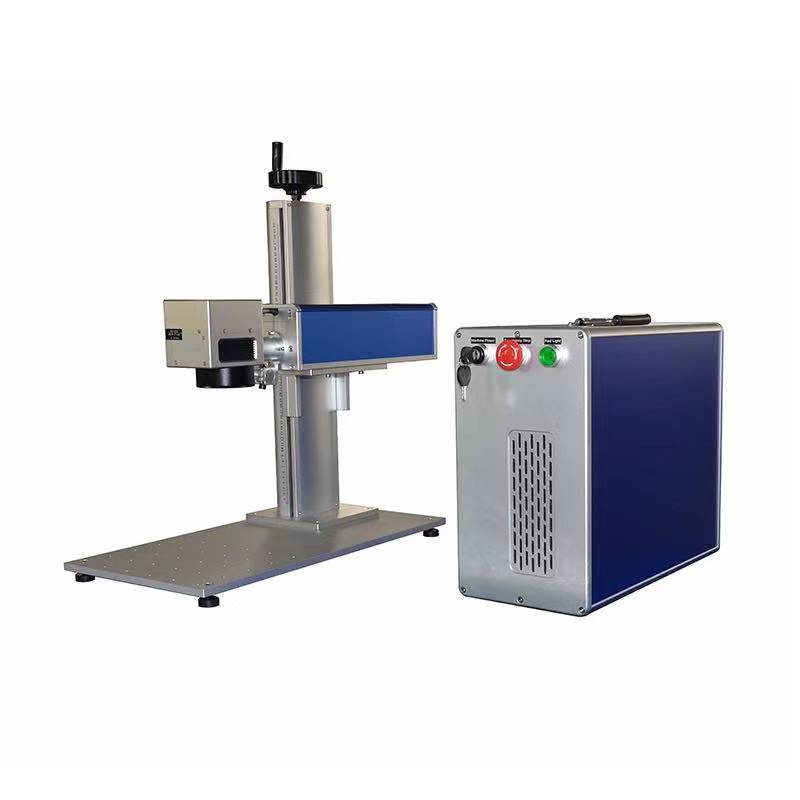

Desktop Laser Marking Machine

Desktop laser marking machine is suitable for various non-metallic materials and can be used in many industries for different processing operations.

Laser power: 10W/30W/60W optional

Control system: EZCAD

Contact Now E-Mail Telephone WhatsApp

Product Details

Desktop laser marking machine is suitable for marking various non-metallic materials such as paper, plastic, leather, glass, ceramics, etc. The machine has lower energy consumption and maintenance costs, which can greatly increase production efficiency and reduce costs.

Desktop Laser Marking Machine

Technical parameters of desktop laser marking machine:

Model	JK-CLM10	JK-CLM30	JK-CLM60
Power	10W	30W	60W
Wavelength	9.3um~10.6um
Minimum Line Width	0.1mm
Total Power	<500W	<500W	<2000W
Beam Quality	<1.3M2	<1.5M2	<1.5M2
Spot Diameter	0.03mm
Frequency	1-50KHz	1-50KHz	1-80KHz
Power Adjustment Range	10-100%
Engraving Speed	≤7000mm/s
Cooling Method	Air cooling
Operating Environment	10℃~35℃ ( No condensation)
Electricity Demand	220V / 50Hz (110V/60Hz)
Equipment Size	6008001450mm ( Customizable )

Desktop Laser Marking Machine

Desktop laser marking machine uses non-contact marking technology, which can avoid damage and deformation of the workpiece, and ensure the accuracy and consistency of the marking effect. It is suitable for marking various non-metallic materials such as paper, plastic, leather, glass, ceramics, etc.
