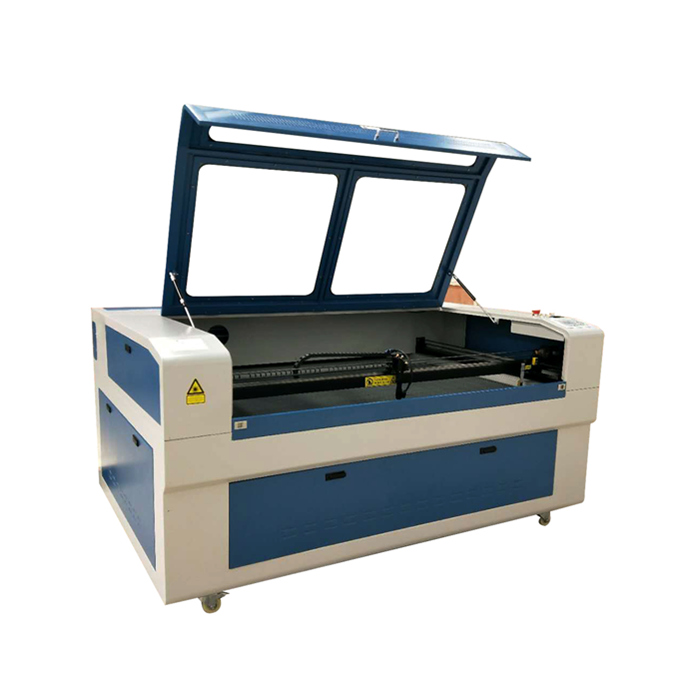

Stone Laser Engraving Machine

Stone laser engraving machine is an ideal for carving intricate designs, text, images, and patterns onto tombstones and monuments, allowing customers to create an enduring memorial to their loved ones.

Model: JK-1610L

Working size: 1600×1000mm

Table: Blade table

Co2 laser tube: 80W/100W/130W/150W(optional)

Contact Now E-Mail Telephone WhatsApp
Product Details

Stone laser engraving machine is specialized device used for carving designs, texts, and patterns onto a wide range of natural stones, including marble, granite, basalt, sandstone, and limestone.

Advantages of stone laser engraving machine:

1. Speed and Efficiency - Stone laser engraving machines are incredibly fast and efficient as compared to the traditional manual carving methods. They complete complex designs in minutes or hours rather than days.

2. High Precision - Accuracy is key in stone carving, and laser technology has it all. Laser machines allow for precise detail and perfect placement, which can be challenging to achieve through manual carving methods.

3. Versatility - Regardless of the natural stone material, the laser technology can carve intricate designs with ease, making these machines ideal for a wide range of applications.

4. Low Maintenance - A significant benefit of using a laser engraving machine is that it requires minimal maintenance compared to other traditional stone carving methods. Once the design is created, it’s transferred to the laser software, which then sends it to the machine. The machine will begin to etch the design, requiring minimal operator intervention.

Stone Laser Engraving Machine

Technical parameters of stone laser engraving machine:

Description

JK-1610L

Working area

1600*1000mm

Laser power

80W/100W/130W/150W(optional)

Working table

Blade Table

Laser type

Co2 laser tube

Life of laser tube

8000-10000 hours

Engraving speed

0-1000mm/s

Cutting speed

0-700mm/s

Laser tube cooling

Water cooling

Driver mode

Stepper motor and Leadshine driver

Transmission system

Taiwan HIWIN square rails and Fulong belt

Design software

CorelDraw, AutoCAD, Photoshop etc.

Picture format supported

PLT, DXF, BMP, AI, JPG, GIF, PGN, TIF, etc.

Control system

Ruida controller

Software

Ruida

Max. scanning precision

0.0254mm

Position precision

<0.01mm

Communication interface

USB

Power supply

110V/220V, 50/60HZ

Machine dimension

1850*1320*1110mm

Net Weight

500KGS

For Engraving

All non-metals

For Cutting

Most non-metals, such as acrylic, wood, mdf, plywood, leather

etc.

Optional Parts

  1. 1. Other laser tube with different laser power

  2. 2. Up-down Table

  3. 3. CW-3000 water chiller

  4. 4. Rotary Axis

  5. 5. Auto focus

Stone Laser Engraving Machine

Applications of stone laser engraving machine:

1. Monuments and Tombstones - Stone laser engraving machines are ideal for carving intricate designs, text, images, and patterns onto tombstones and monuments.

2. House Interiors and Exteriors - Laser engraving machines can carve designs on natural stones, giving a touch of elegance and beauty to house interiors and exteriors.

3. Commercial Building Designs - Laser technology can help businesses create unique designs on natural stone materials such as marbles, creating their company’s brand and identity.

4. Industrial Applications - Laser technology can also be used to etch designs or logos on natural materials used in the construction of industrial equipment or parts.

Stone Laser Engraving Machine
