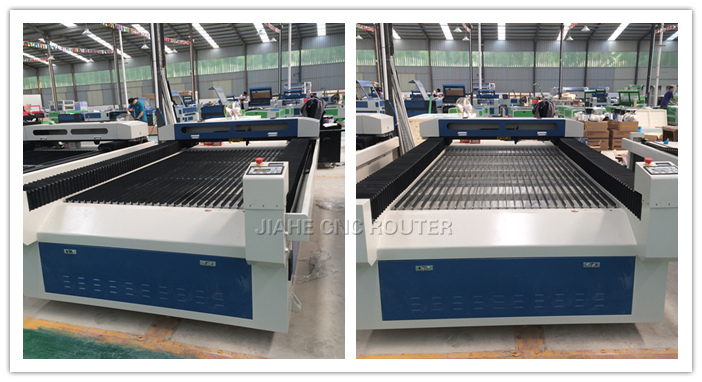

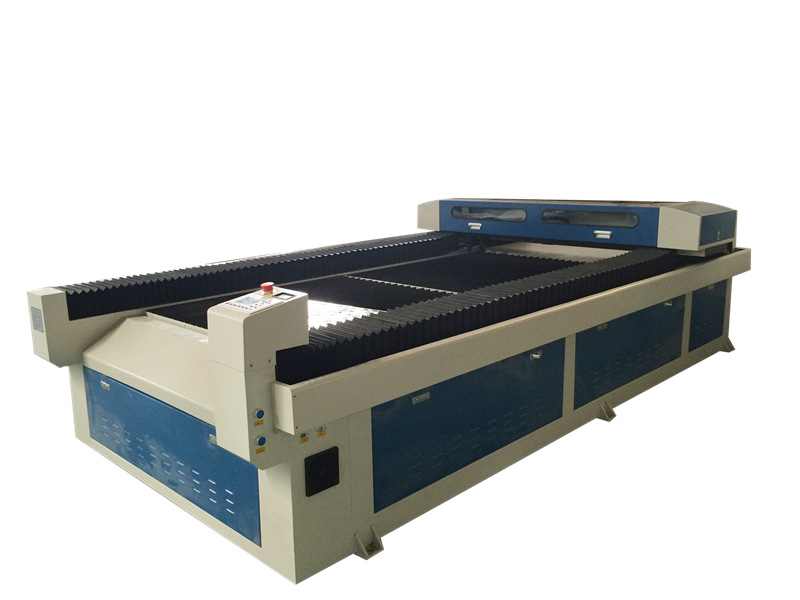

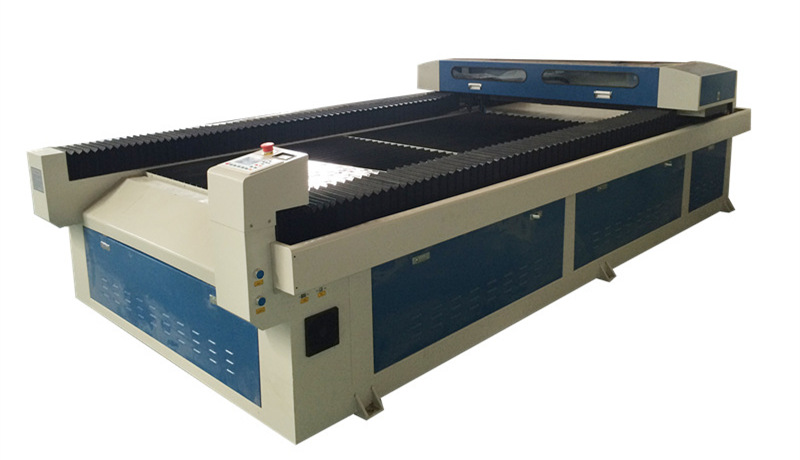

MDF Wood Laser Cutting Machine
MDF wood laser cutting machine is a highly advanced and innovative machine that is designed to meet the modern-day demands of the woodworking industry. The machine is ideal for cutting medium-density fiberboard (MDF) and wood.
Model: JK-1325L
Working size: 1300×2500mm
Laser power: 80w/100w/130w/150w(optional)
MDF wood laser cutting machine is suitable for different industries and materials, making it an ideal investment for any business looking to improve efficiency and productivity. It offers several advantages, including high cutting precision, high-speed cutting, and low maintenance.
Performance Characteristics of MDF wood laser cutting machine:
1. High Cutting Accuracy: The machine has an excellent cutting accuracy, with a precision of up to 0.05mm.
2. High-Speed Cutting: MDF wood laser cutting machine is capable of cutting up to 10mm at speeds of up to 600mm/s.
3. Automatic Focus: This machine features an automatic focus system, which ensures consistent and accurate cutting across different materials.
Technical parameters of MDF wood laser cutting machine:
Model | JK-1325L |
Working Area | 1300*2500mm |
Laser Power | 60w/80w/100w/130w/150w |
Laser Type | Sealed Co2 Laser Tube,10.6μm |
Cooling Type | Water Cooling |
Cutting Speed | 0—30000mm/min |
Laser Output Control | 0—100% Software Setting |
Smallest Character Engraving | 2.0*2.0mm1.0*1.0mm / English 1.0mm*1.0mm |
Highest Scanning Precision | 4000DPI |
Locating Precision | ≤+0.01mm |
Controlling Software | DSP Control System |
Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc |
Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD |
Color Separation | Yes |
Drive System | High-precision 3-phase Stepper Motor |
Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
Power Supply | AC110V/220V+10%,50HZ/60HZ |
Option | *Up&Down Table(Length:500mm) *Honeycomb Worktable *Rotary Device Red Dot Position *System,Auto-focus Device |

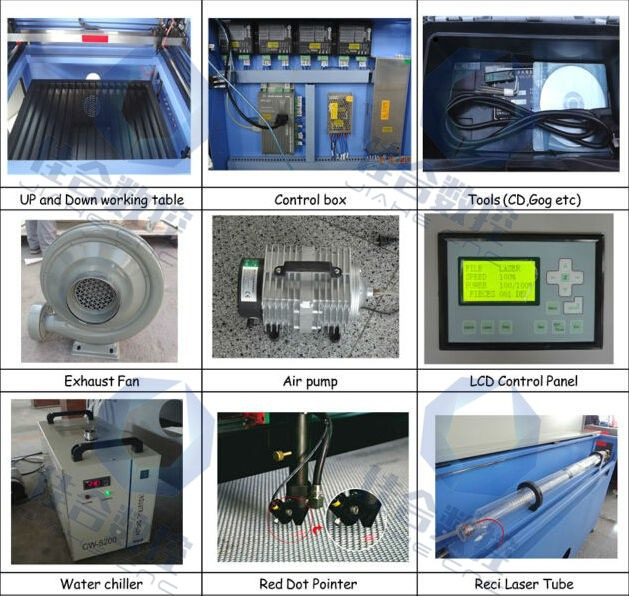

Standard parts show of MDF wood laser cutting machine:
Application Industry and Materials:
MDF wood laser cutting machine can be used in different industries, including the woodworking industry, sign-making, architecture, and furniture manufacturing. It is ideal for cutting MDF, acrylic, plywood, veneer, leather, and other materials.
