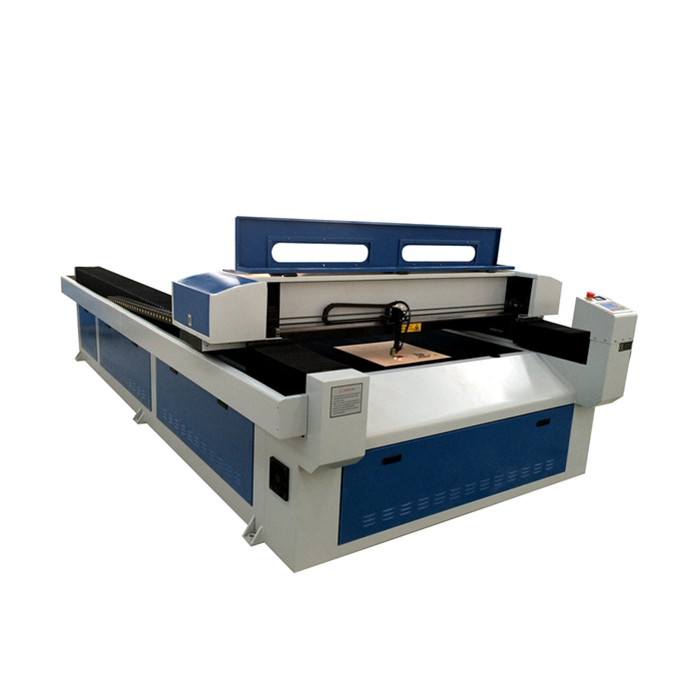

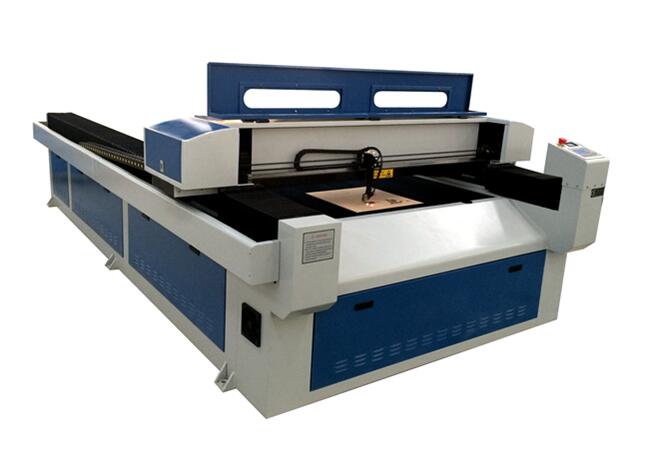

Acrylic Laser Cutting Machine
Acrylic laser cutting machine is a versatile and efficient tool used in various industries for high-quality and precise cutting of acrylic sheets.
Model: JK-1325L
Working size: 1300×2500mm
Laser power: 80w/100w/130w/150w(optional)
Acrylic laser cutting machine is a high-efficient tool that uses the laser beam to cut or engrave acrylic and other non-metallic materials. The versatility of the machine allows it to handle various thicknesses of acrylic sheets, as well as other materials like wood, leather, and plastics.
Technical parameters of acrylic laser cutting machine:
Parameter | JK-1325L | |||
Engraving Area(mm) | 1300x 2500mm | |||
Dimension | 3050x 1860x1000mm | |||
Laser power | 80W/100W/120W/150W | |||
Laser type | CO2 Laser tube | |||
Cutting Speed | 0-200mm/s | |||
Resetting positioning accuracy | <0.01mm | |||
Cutting Depth | Acrylic 0~25mm | |||
Maximum forming character | English:1.5 x 1.5mm | |||
Power supply | 220V±10% 50HZ or 110V±10% 60HZ | |||
Software supported | ArtCut, CorelDraw, PhotoShop, AutoCAD | |||
Graphic format supported | .PLT,DXF,BMP,JPG,GIF,PGN,TIF | |||
Water Cooling | Yes | |||
Laser Tube (life hours) | 1500 hours | |||
Assistant Equipment | Water pump,Exhaust Fan, Blade or Iron Honeycomb worktable | |||
Optional Spare Parts | Cooling water system | |||
Recommended Spare Parts/Consumables | Laser Tube and Lens |
Application Range of acrylic laser cutting machine:
Acrylic laser cutting machine is an excellent tool for a wide range of applications.
(1). It is commonly used in the fabrication of signs, displays, and other decorative items.
(2). It's useful in the production of acrylic components used in the electronics industry, especially panels and enclosures.
(3). Automotive and aerospace industries.
Applicable Materials of acrylic laser cutting machine:
Acrylic laser cutting machine can cut and engrave many non-metallic materials, including acrylic, wood, leather, paper, fabric, glass, plastic, and many others. It can cut through most of these materials with minimal exertion, providing the desired shapes and designs.
