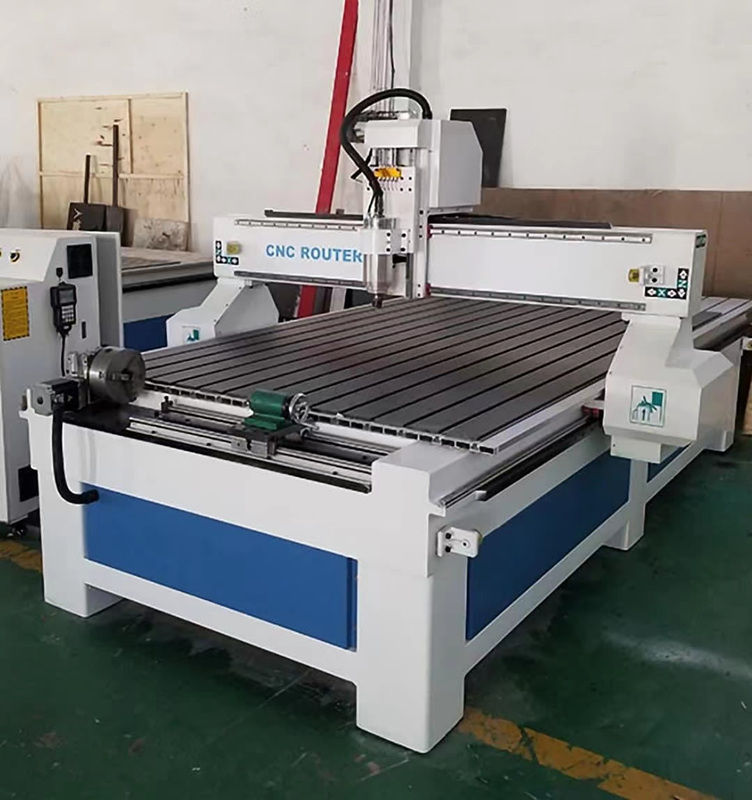

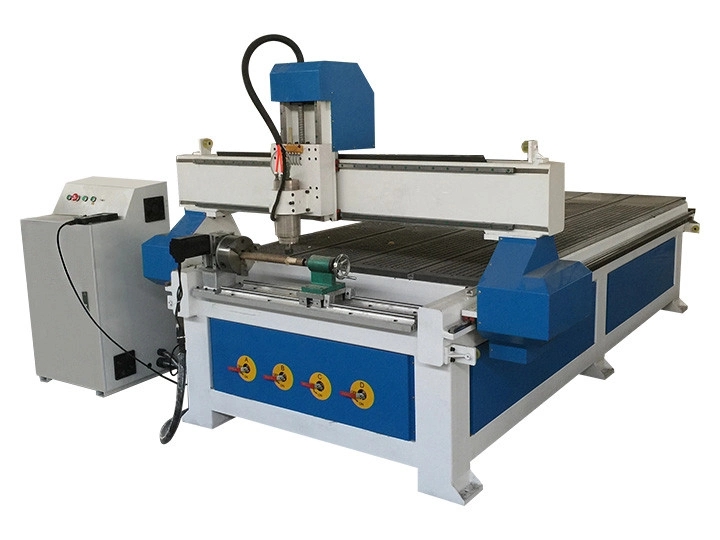

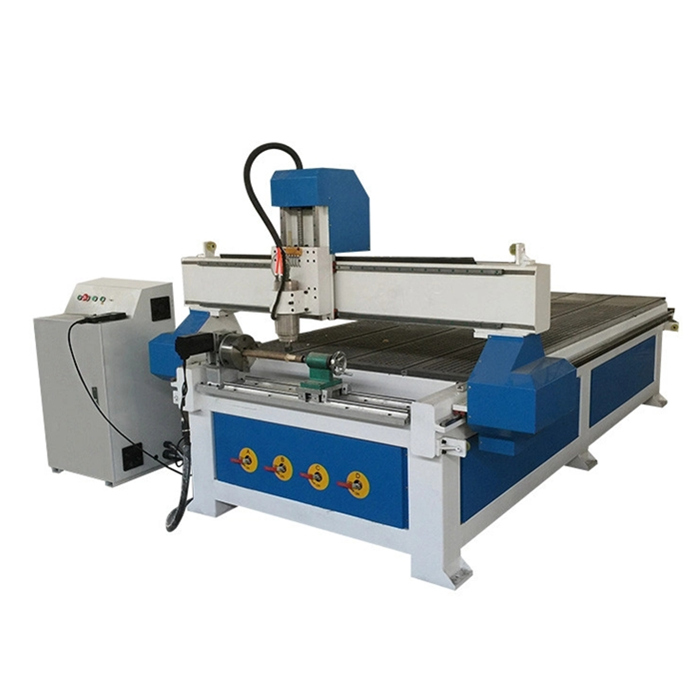

CNC Wood Router 1325 With Rotary
CNC wood router 1325 with rotary has a high-speed spindle which allows it to perform complex designs seamlessly. It also has a rotating axis that enables the machine to move on multiple axes to produce intricate and detailed carvings.
Model: JK-1325
Working size: 4ft×8ft
Rotary: diameter 150mm
CNC wood router 1325 with rotary is suitable for carving a wide range of materials, including hardwood, softwood, MDF boards, acrylic, plastic, and PVC. It is ideal for use by craftsmen, woodworkers, furniture makers, and advertising companies that require customized designs on their products.
4th axis rotary CNC router is easy to operate, saving craftsmen the hustle of training for long periods. The machine also has a safety feature that ensures the user's safety during operation. It is also made of high-quality materials that make it durable, reducing the need for constant repairs.
Technical parameters of CNC wood router 1325 with rotary:
NO. | Description | Parameter |
1 | Name | JK-1325 |
2 | X,Y,Z Working Area | 1300x2500x200mm |
3 | ROTARY | DIAMETER 150MM LENGTH 1000MM |
4 | Table type | T-slot table |
5 | Machine Structure | Welded structure |
6 | X, Y Structure | Helical rack pinions,20mm Hiwin linear square guide rails |
7 | Z Structure | Ball Screw , 20mm Hiwin linear square guide rails |
8 | Max.Speed | 0-15000mm/min |
9 | Max. Working Speed | 0-10000mm/min |
10 | Spindle Power Motor | 6kw water cooled spindle |
11 | Motor and driver | Hybrid servo motors and drivers, Z axis motor with break |
12 | Working Voltage | 380V,3PH |
13 | Command | G Code, *uoo, *mmg, *plt |
14 | Operating System | NK105G2 controlling system |
15 | Dust collector | 3kw with two bags |
15 | Lubrication system | Auto oil lubrication system |
16 | Machine frames | 6mm thick pipes |
17 | Machine Size | 3000*2200*1900mm |
18 | Net Weight | 1200KG |
CNC wood router 1325 with rotary is a versatile machine that can be applied in various industries, including furniture, signage, automotive industry, aerospace, and jewelry making. It is used to produce intricate designs on products such as chairs, tables, doors, and decorations, among others.
CNC wood router 1325 with rotary is a must-have machine for any craftsman who values precision, accuracy, and efficiency in their work. It promises to make woodcarving an enjoyable task by reducing the need for manual interventions, improving productivity, and producing high-quality products consistently. Its versatility and suitability for various materials and industries make it an indispensable asset in any workshop or industry.
