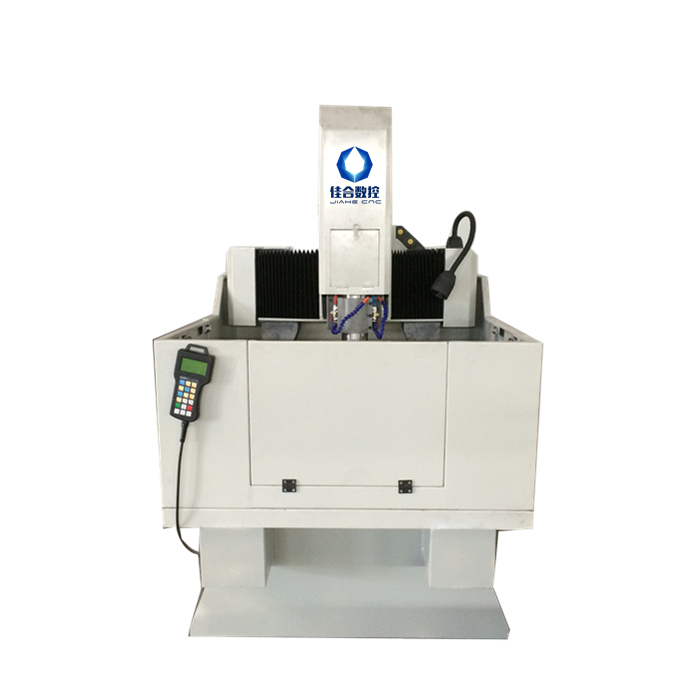

Mould Making CNC Mahcine
K-4050 400*500mm cnc gadget for mildew making JK-4050M cnc moulding gadget adopts new designed shape and excessive precision linear manual rails and ball screws. This gadget can paintings for engraving letter and designs on iron,copper,aluminum,steel,gold,etc.
JK-4050 400*500mm cnc machine for mould making
JK-4050M cnc moulding machine adopts new designed structure and high precision linear guide rails and ball screws. This machine can work for engraving letter and designs on iron,copper,aluminum,steel,gold,etc.
JK-4050 400*500mm cnc machine for mould making Parameters:
| Model | JK-4050M |
| Machine body | Cast iron |
| Working area(XYZ axis) | 400*500*300mm |
| Moving type | Table moving |
| X Y Z rail | PMI/HIWIN linear square guide rail |
| X Y Z transmission | High precision ball screw |
| Spindle | 4.5kw water cooling spindle |
| Spindle speed | 24000rpm |
| Inverter | 5.5KW inverter |
| Motor | Japan Panasonic servo 750w motor |
| Driver | Japan Panasonic servo driver |
| Transformer | Yes |
| Lubrication | Yes |
| Max. speed | 8m/min |
| Max. working speed | 6m/min |
| Voltage | AC 380V 50HZ/AC 220v 50-60HZ |
| Collets | ER25 3.175-12.7mm |
| Repeat reposition accuracy | 0.01mm |
| Cover | X Y Z cover |
| Command | G code |
| Software | Artcam/ Ucancam |
| Control system | DSP |
| Remark | Optional driving mode: |
| Stepper motor and driver | |
| Optional control system: | |
| NC studio |
CNC moulding machine Features:
1.Wholly forged iron frame and desk transferring to make sure the coolest accuracy and balance of the machine. 2.X Y Z makes use of 20mm PMI or HIWIN linear rectangular manual rail, it's far extra strong and has longer existence than ordinary spherical one. 3.Z axis use 20mm hign precision ball screw and might keep away from spindle all of sudden up and down. 4.Break factor reminiscence can prevent paintings with incorrect alerts and keep away from the waste of materials. 5.We use excessive voltage and excessive torque stepper driver, that's a lot extra effective than the ordinary stepper driver. 6.Adopt 2.2KW water cooling spindle, that's appropriate for long term and excessive temperature working. 7.Uses NcStudio or DSP manipulate system, smooth and handy to operate. 8.Many non-obligatory configuration and OEM carrier are available.

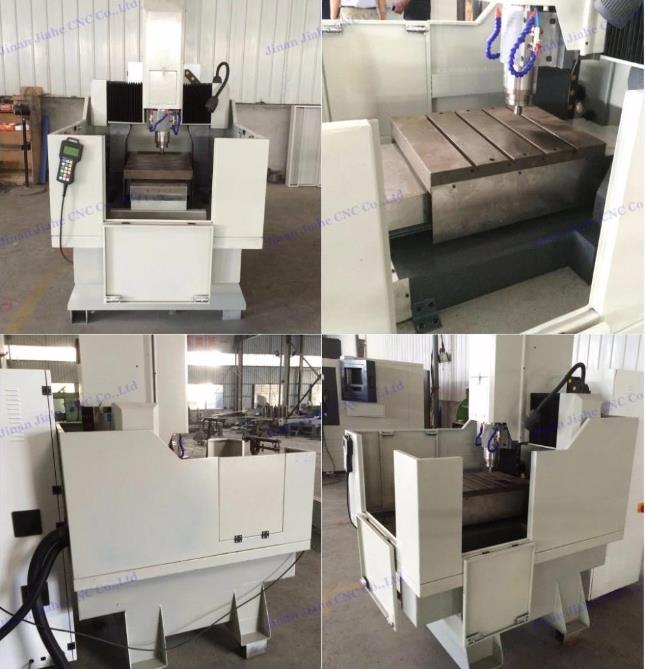

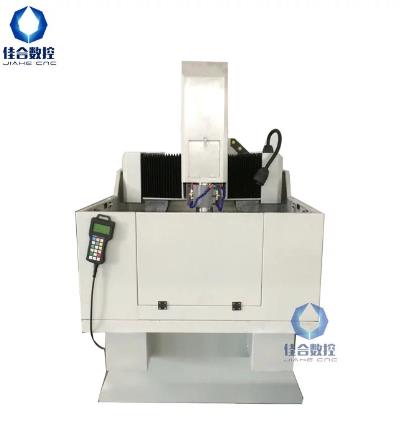

CNC moulding machine pictures:
