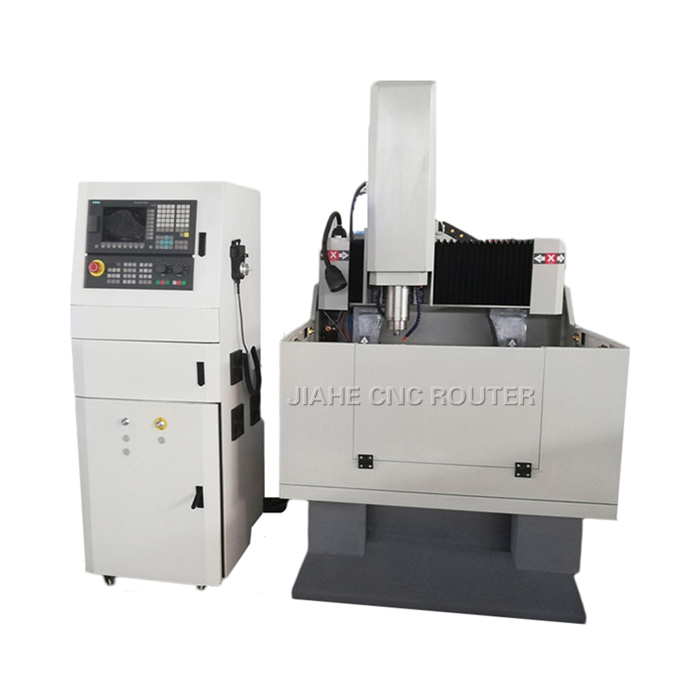

Metal Mould Engraving Machine

Metal mould engraving machine is suitable for engraving metals such as aluminum, stainless steel, brass and other materials.

Model: JK-4050

Working size: 400*500mm
Spindle: 5.5kw 24000rpm water cooled
Motor: Panasonic servo
Control: Weihong NK260 system

Contact Now E-Mail Telephone WhatsApp

Product Details

Metal mould engraving machine is widely used in the production of mould making, molds and other metal products. Furthermore, it has many advantages, such as fast speed and low operation cost. It has high processing accuracy and can realize three-dimensional engraving with great detail.

Metal Mould Engraving Machine

Advantages of metal mould engraving machine:

1. High precision engraving ensures accurate cutting of the product.

2. CAD/CAM software can be used to automatically generate codes, making programming easier and saving time.

3. Highly reliable drive motor and high speed engraving ensure the smooth cutting process.

4. High efficiency, able to produce multi-shaped complicated parts with high precision and strength.

Metal Mould Engraving Machine

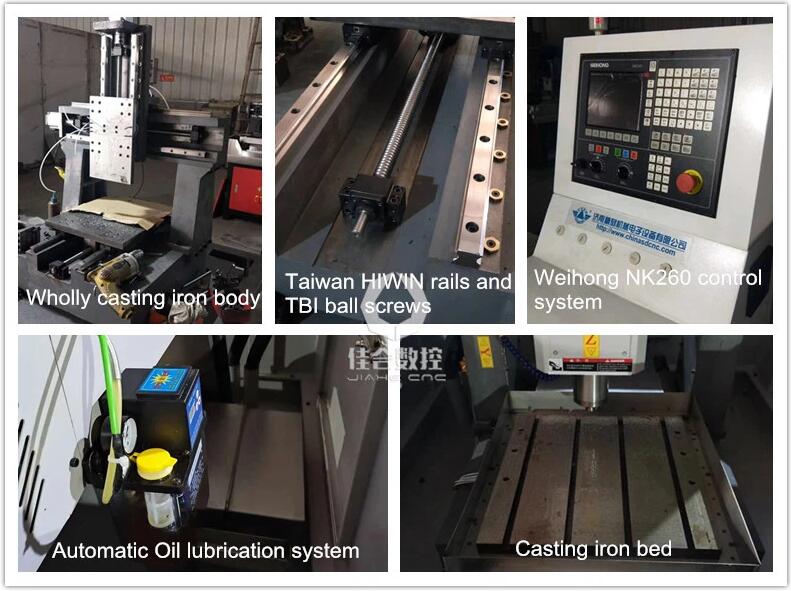

Technical parameters of metal mould engraving machine:

Model	JK-4050
Structure/machine body	Whole cast iron
Movement style	Gantry fixed, table move
X Y Z working size	400500300mm
X Y Z rail	HIWIN Linear square guide rail
X Y Z transmission	Ball screw
Spindle	4.5KW water cooling spindle
Spindle speed	24000rpm
Motor	Servo motor
Driver	Servo driver
Inverter	5.5KW inverter
Voltage	AC 220V/AC 380V 50HZ-60HZ
Collets	ER25 3.175-12.7mm
Transformer	Yes
Cover	Y-axis telescopic stainless steel dustproof
Lubrication	Auto lubrication system
Max. speed	12m/min
Max. working speed	8m/min
Repeat reposition accuracy	0.01mm
Software	Artcam/Ucancam/Type 3
Control system	Weihong NK260
Command	G-code

Metal Mould Engraving Machine

Application scope of metal mould engraving machine: automobile, motorcycle, aerospace, machine tool manufacturing, agricultural machinery manufacturing, mold manufacturing, etc.
