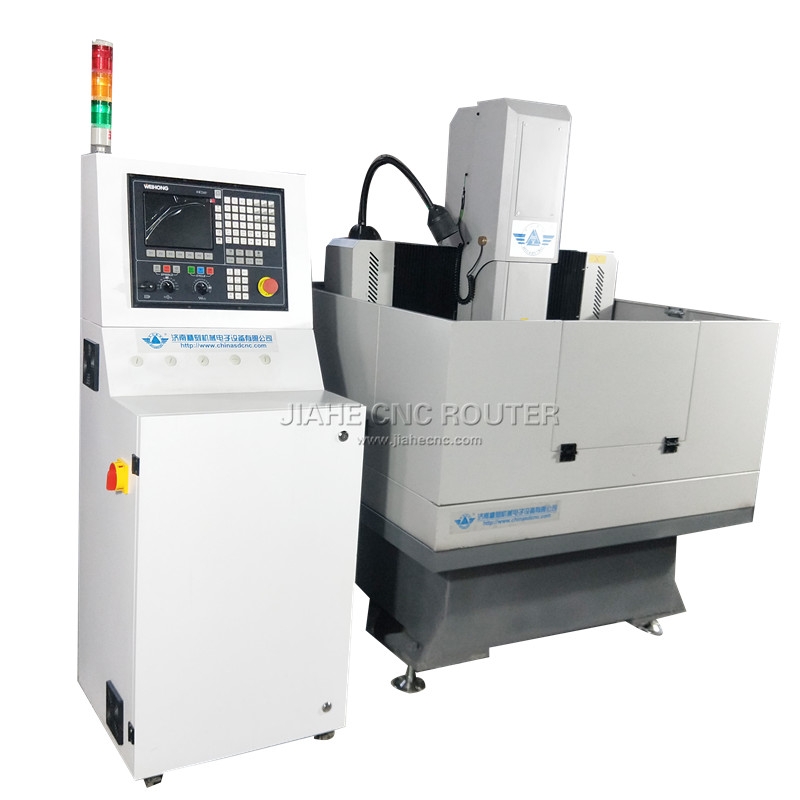

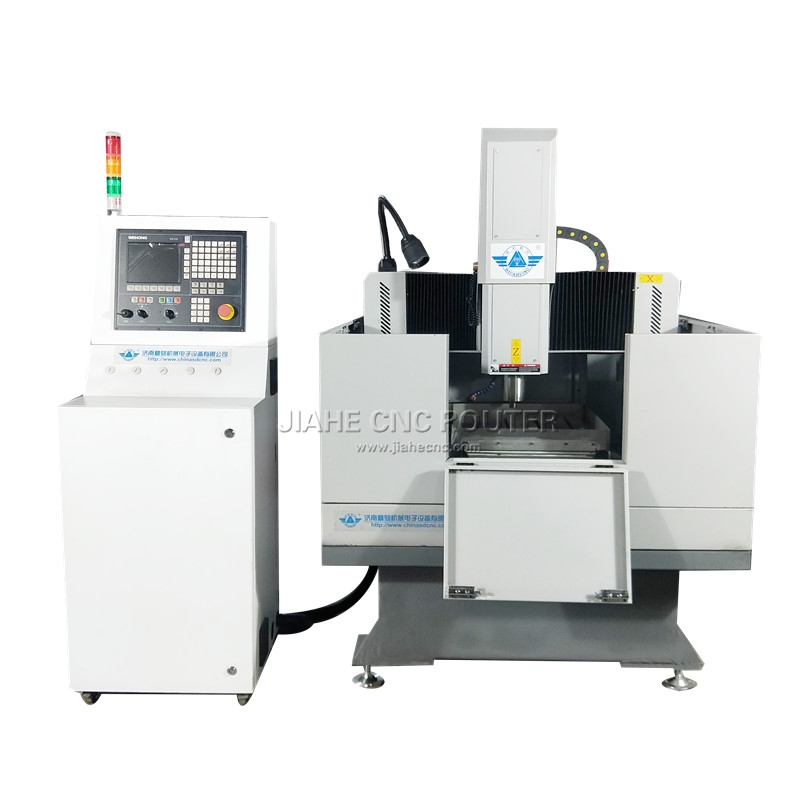

CNC Steel Engraving Machine

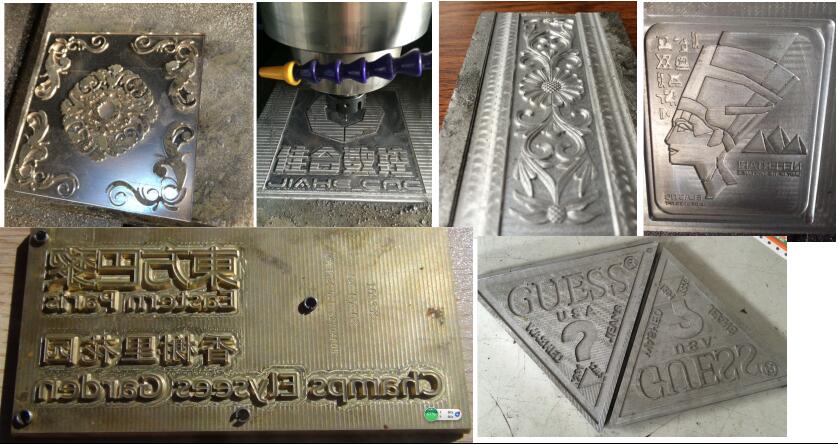

CNC steel engraving machine has a wide range of applications, high precision, and easy maintenance. It can effectively engrave various patterns on stainless steel, aluminum, copper, and other metal materials.

Model : JK-4040

Working size : 400*400mm

Spindle : 3.2kw

Motor : servo

Driver : servo

Control system : Weihong NK260

Contact Now E-Mail Telephone WhatsApp

Product Details

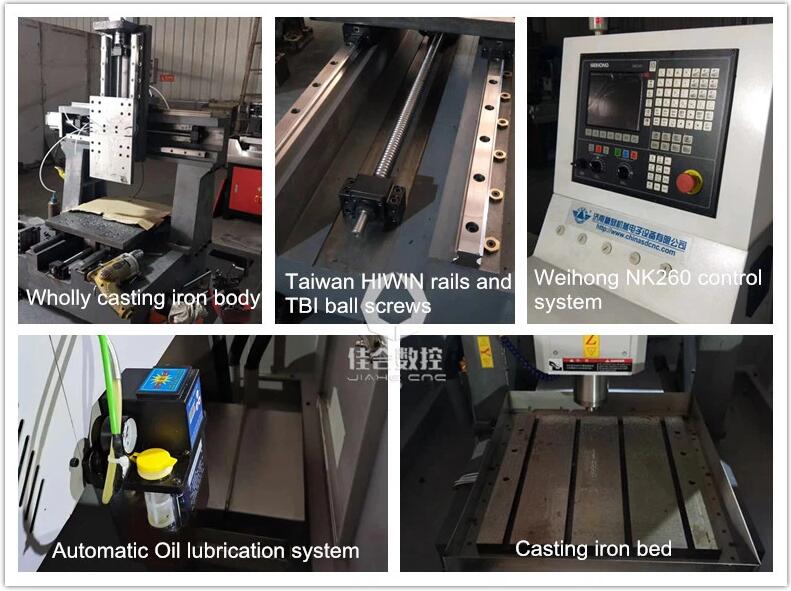

CNC steel engraving machine is made of high-quality casting iron, ensuring its durability and stability during operation. It comes equipped with a high-speed spindle motor, a precise ball screw, and an advanced control system. It also features a user-friendly interface, allowing for easy operation and accurate positioning.

Technical parameters of CNC steel engraving machine:

Performance index	JK-4040
X,Y working area	400×400mm
Z working area	200mm
XYZ transmisstion	Linear guide rails&precise ball screws
Max travel speed	8m/min
Max engraving speed	4m-6m/min
Structure	Cast iron
Repositioning precision	0.01mm
Control system	Weihong NK260
Command	G Code .mmg.plt
Surroundings for software	windows98/2000/xp
Power	AC220V/50Hz
Spindle power	4.5kw
Spindle speed	0-24000rpm/min
Motor and driver	Servo
