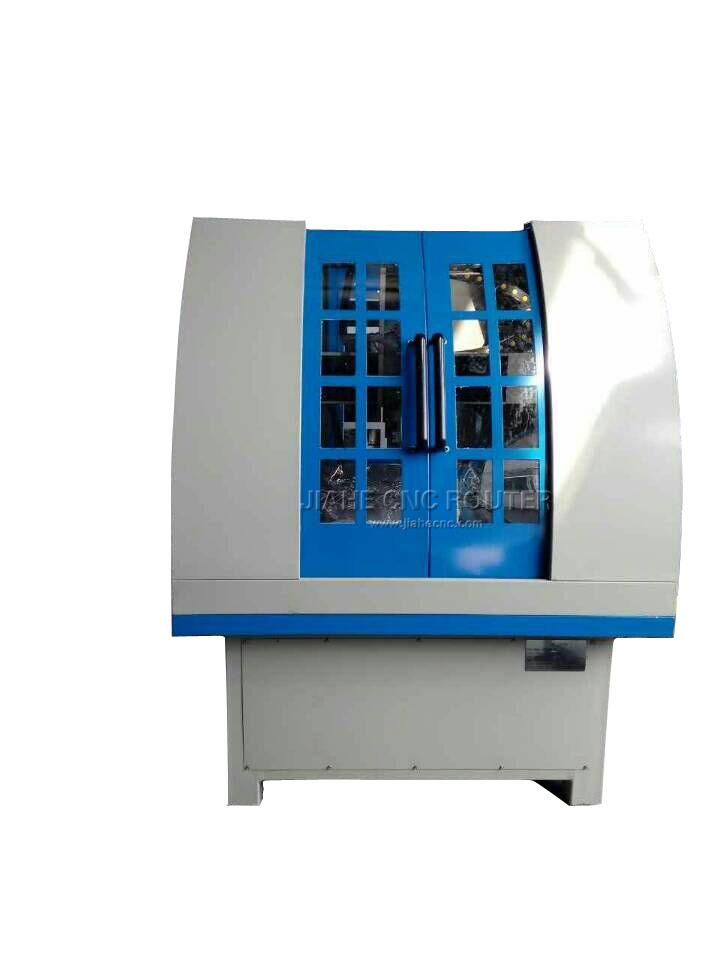

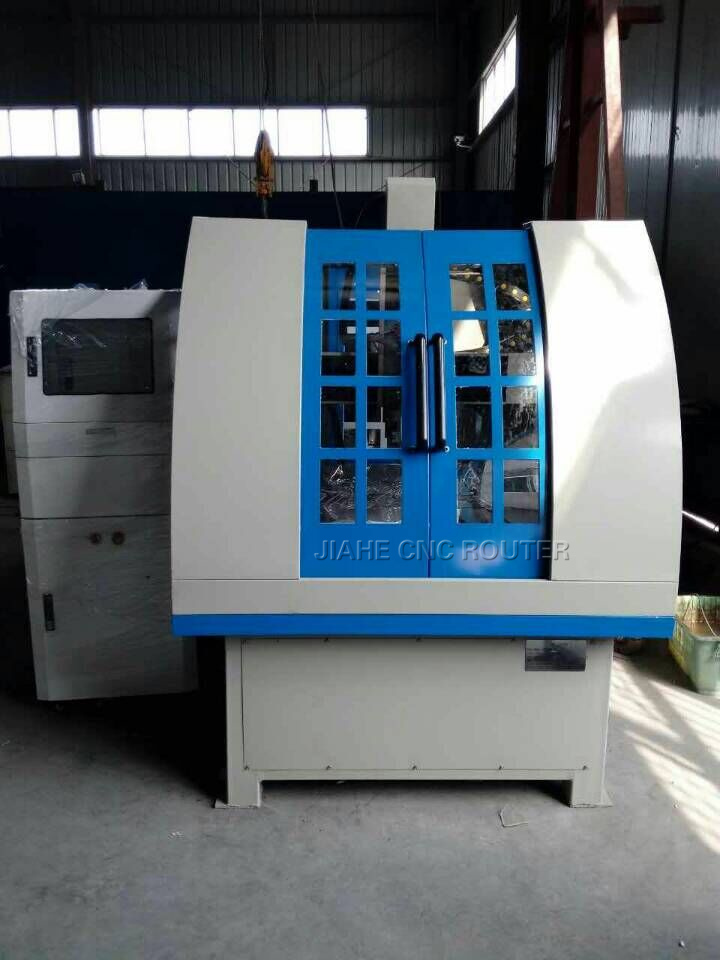

Letter Engraving Machine For Metal
Letter engraving machine for metal has a high processing speed, high processing accuracy, and high efficiency. It can easily engrave intricate designs, logos, and texts onto various metal surfaces.
Model: JK-6060
Working area: 600×600mm
Spindle: 3.2kw water cooled 24000rpm
Letter engraving machine for metal is widely used in the metal processing industry as it can engrave various metals, such as aluminum, copper, brass, and steel. It can carve different shapes and designs on metal surfaces, including flat, curved, and cylindrical surfaces.
Product Advantages of letter engraving machine for metal:
1. High-precision engraving, high processing efficiency, and accuracy.
2. The machine is equipped with a powerful spindle motor, ensuring a long service life and high processing capability.
3. It has high-speed control software that can manage various operations accurately.
4. The metal engraving machine is equipped with an advanced dust collection system, which prevents dust from accumulating on the machine.
5. The machine has a high repeatability and can be used to engrave multiple products simultaneously.
6. It uses an automatic lubrication system, reducing maintenance needs.
Technical parameters of letter engraving machine for metal:
| Model | JK-6060 |
| Machine body | Cast iron |
| Working area(XYZ axis) | 600*600*200mm |
| X Y Z rail | Taiwan HIWIN/PMI linear square guide rail |
| X Y Z transmission | Taiwan TBI High precision ball screw |
| Spindle | 3.2kw 24000rpm water cooled spindle motor |
| Inverter | 3.7KW inverter |
| Motor/Driver | Stepper motors and drivers |
| Auto Lubrication system | With |
| Max. speed | 20m/min |
| Max. working speed | 15m/min |
| Voltage | AC380V-440V three phase(AC220V optional) |
| Collets | ER20 3.175-12.7mm |
| Repeat reposition accuracy | 0.01mm |
| Spindle Cooling | Water cooling |
| Cutting cooling system | Oil cooling |
| Command | G code |
| Software | Artcam |
| Control system | Ncstudio or DSP |
| Tool sensor | Auto tool sensor |

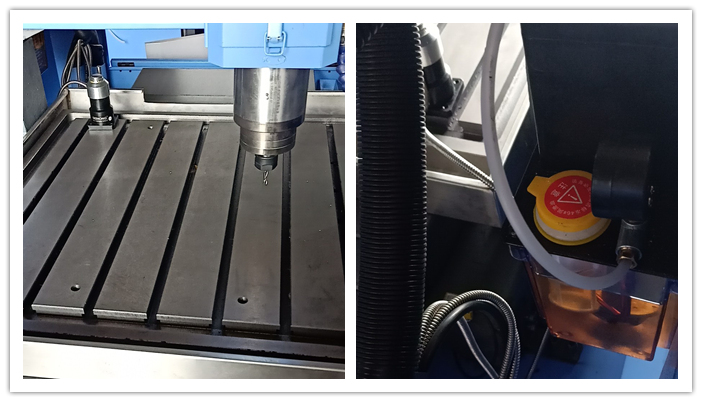

Casting iron table Auto lubrication pump

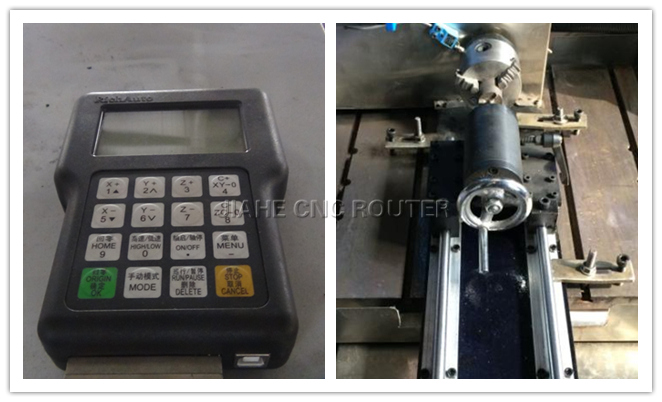

DSP control system Rotary(optional for curved surface)
Application Range:
1. The letter engraving machine for metal is suitable for engraving logos, graphics, and text on metal products, such as instrument panels, nameplates, jewelry, belt buckles, and watches.
2. It is widely used in the advertising industry, aerospace industry, electronics industry, and automobile industry.

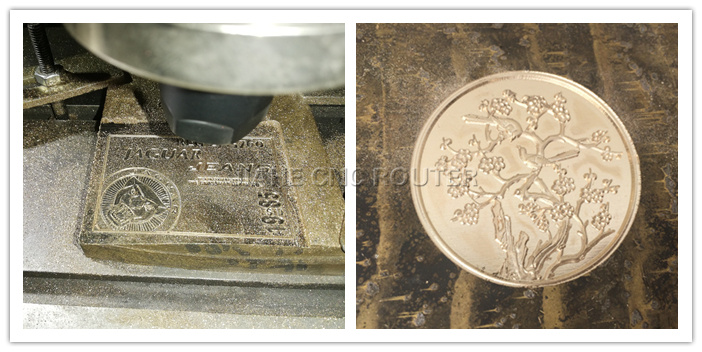

Copper engraving

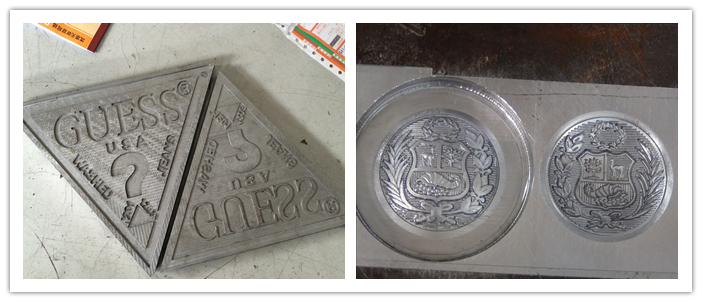

Male and female mould
