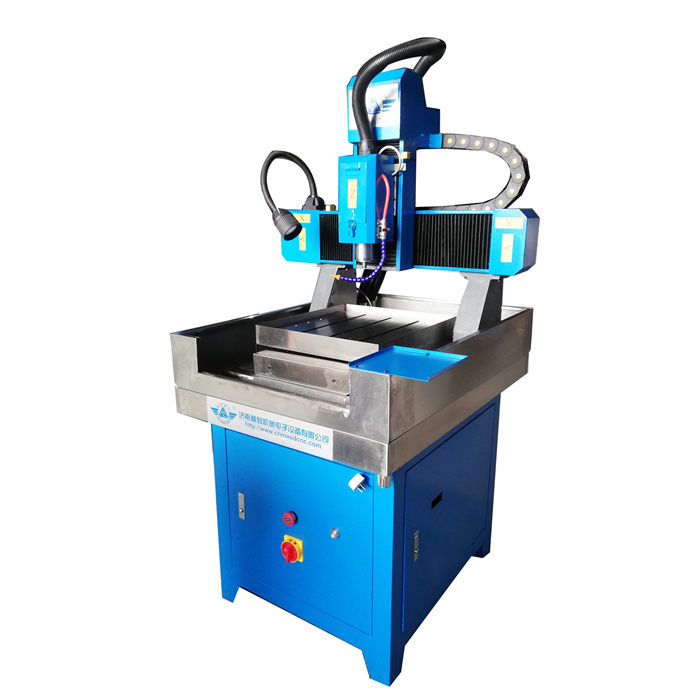

CNC Engraving Machine For Aluminum

CNC engraving machine for aluminum offers high quality results with a low cost and effort.

Model: JK-4040

Working area: 400×400×170mm

Spindle: 2.2kw 24000rpm water cooled

Motor: stepper

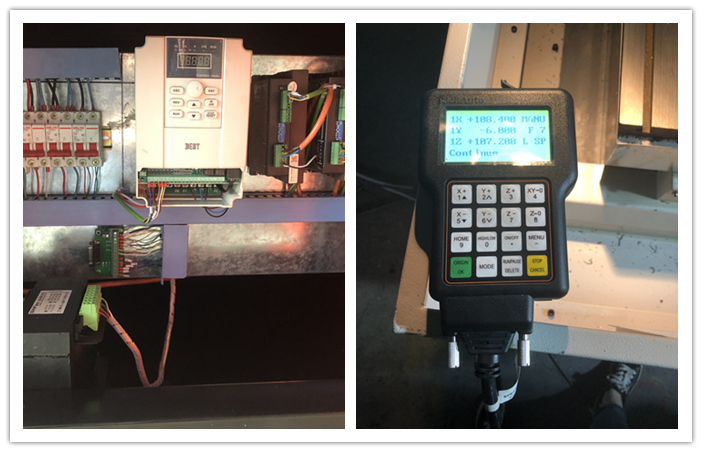

Control system: Ncstudio or DSP

Contact Now E-Mail Telephone WhatsApp

Product Details

CNC engraving machine for aluminum is an ideal choice for metal engraving in industries. It is a very precise and stable device. With its rigid mechanical structure and advanced CNC system, CNC aluminium router machine offers precise processing for metal materials such as aluminum, copper, and other sheet materials. It has a high cutting speed and good accuracy, making it perfect for production works.

CNC Engraving Machine For Aluminum

Technical parameters:

Model	JK-4040
Machine body	Cast iron
Working area(XYZ axis)	400400170mm
Table size	400*400mm

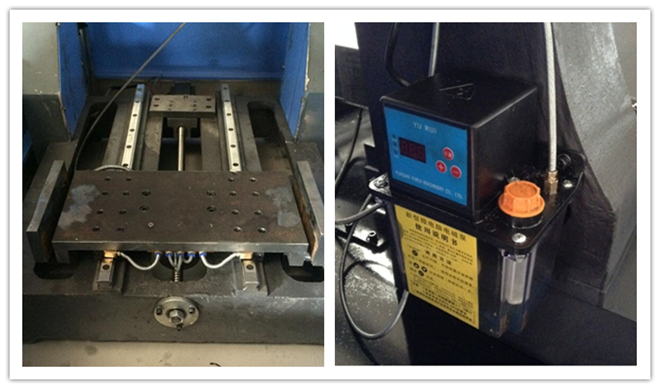

X Y Z rail	Taiwan HIWIN/PMI linear square guide rail
X Y Z transmission	Taiwan TBI High precision ball screw
Spindle	2.2kw 24000rpm water cooled spindle motor
Frequency Inverter	2.2KW inverter
Driving Motor	Stepper motor
Motor driver	Stepper driver
Auto Lubrication system	With
Max. speed	15m/min
Max. working speed	6-8m/min
Voltage	AC 220V/ 50-60HZ
Collets	ER20 3.175-12.7mm
Machine precision	0.02mm
Repeat reposition accuracy	0.01mm
Command	G code
Software	Artcam
Control system	Ncstudio or DSP control system

Features of CNC engraving machine for aluminum:

High speed engraving, low power consumption, X/Y axis movement range up to 400mm x 400mm, adjustable cutting force, optional control system, high precision stepper motors.

CNC Engraving Machine For Aluminum
