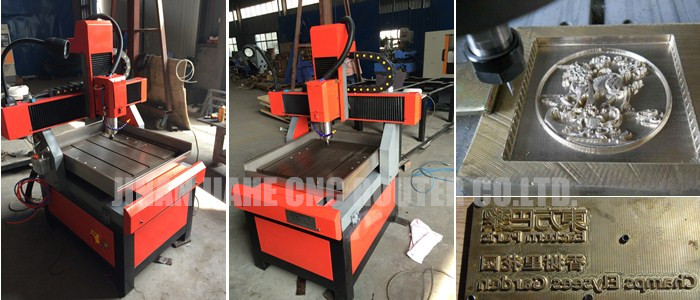

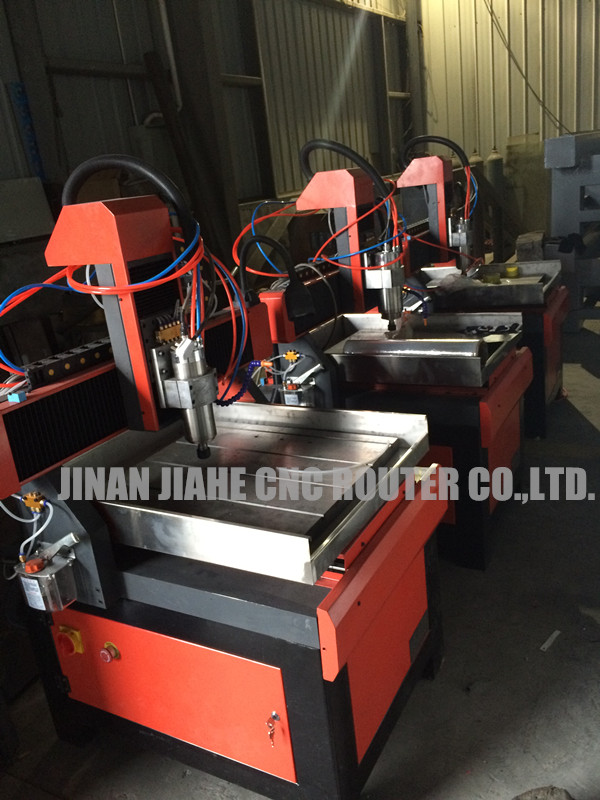

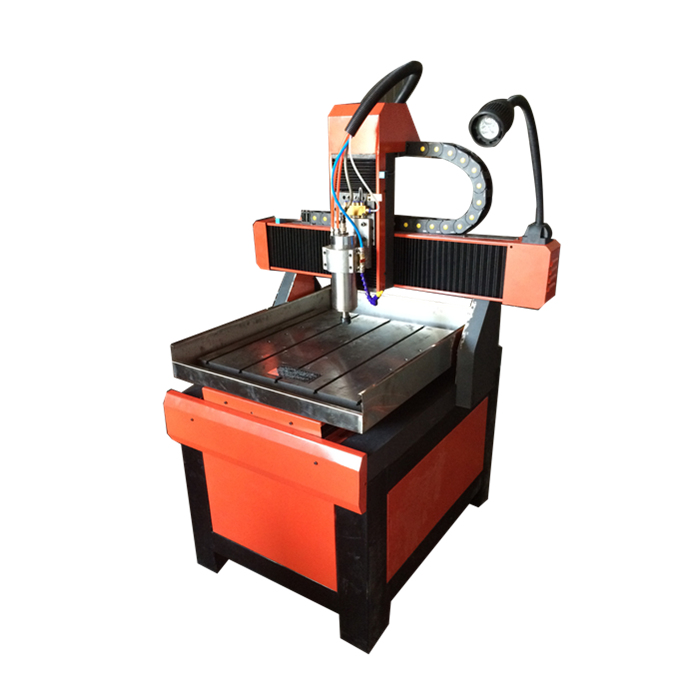

6060 Metal Engraver

6060 metal engraver is an excellent entry-level CNC carving equipment. It has the characteristics of small size and light weight, which makes it easy to carry.

Model: JK-6060

Working size: 600×600mm

Motor: stepper

Spindle: 2.2kw

Control system: Ncstudio or DSP

Contact Now E-Mail Telephone WhatsApp

Product Details

6060 metal engraver is applicable for aluminum, acrylic, wood and plastic, etc. It is widely used for engraving and processing in advertising signs, textile machinery parts, craft gifts and other fields.

Technical parameters:

Machine body	Whole Cast iron body
Working area(XYZ axis)	600600180mm
Z axis feeding height	180mm
X Y Z guide	HIWIN/PMI 20mm linear square guide
X Y Z axis drive	TBI High precision ball screw
X Y Z Axis precision	0.01mm
Repositioning precision	0.01mm
Spindle	2.2kw 24000rpm water cooling spindle
Inverter	2.2kw inverter
Machine Voltage	AC 220V 50-60HZ
Working speed	12000mm/min
Feeding speed	6000-8000mm/min
Driving mode	Stepper motors and Leadshine M860H drivers
Control system	PC based NCstudio control system or DSP
Software compatible	Master Cam,UG,Ucancam, TYPE3,ARTCAM
Lubrication system	Auto lubrication system
Command	G code
Machine dimensions	140015001500mm
Machine weight	550KG
