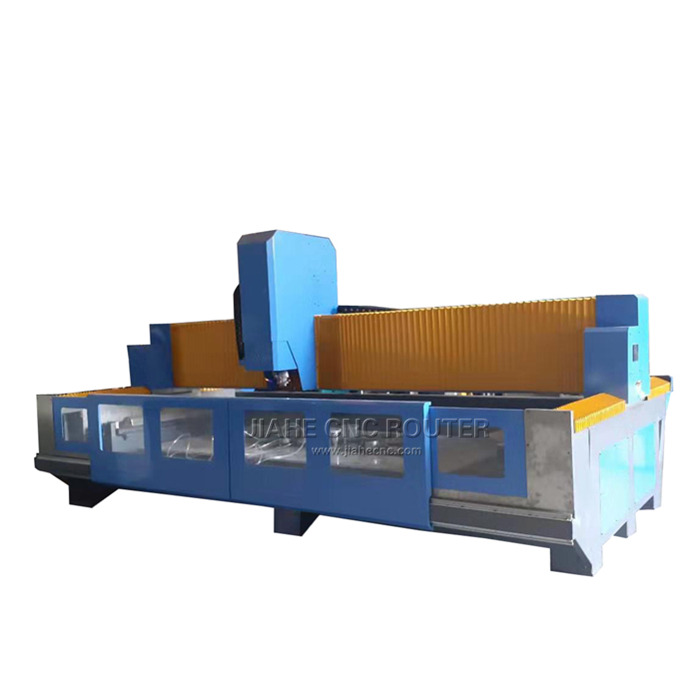

Stone CNC Machine Center

Working size: 3000*1500mm
Motor: Siemens servo motors and drivers
Control system: Siemens control
Spindle: 7.5kw

Contact Now E-Mail Telephone WhatsApp

Product Details

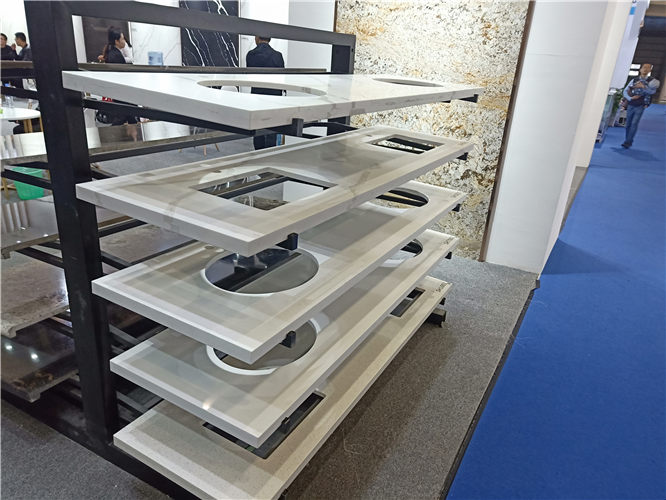

JK-3015 stone cnc machine center is applied for cutting, milling,grinding and polishing stone,marble,granite,artificial stone,quartz stone, for example, wash basin, countertops and sink.

Technical parameters of stone cnc machine center:

Item name	Unit	Parameters
Working size	X axis	mm	3000
	Y axis	mm	1500
	Z axis	mm	400
Working table	Table size	mm	3100×1600
Working table	Table load capacity	kg	1500
Spindle	Spindle power	kw	7.5
Spindle	Spindle speed	rpm	9000
Working speed	X/Y/Z axis speed	m/min	0-10
Accuracy	X/Y/Z axis accuracy	mm	±0.1
Accuracy	Repositioning accuracy	mm	±0.1/300
Others	Machine size	mm	4000*2600
	Maximum height	mm	1860
	Gantry inside frame size	mm	3000
	Total power	kw	15
Working environment	Working temperature	°C	0~40
	Humidity	≤75％
	Voltage		380V±10%，50Hz
	Pneumatic source (min / max)	kg/cm2	6
Cooling system	Coolant flow	L/min	5

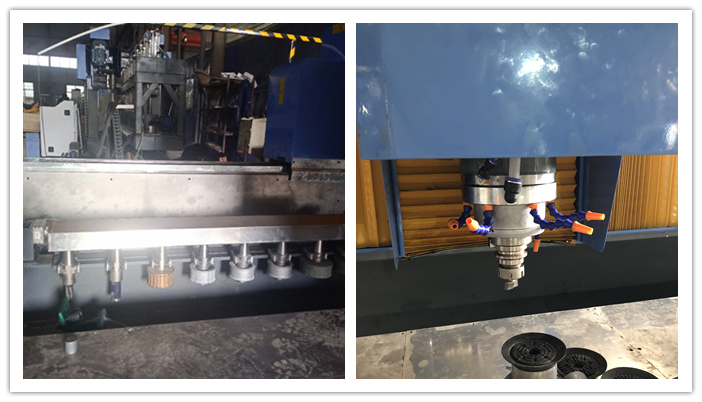

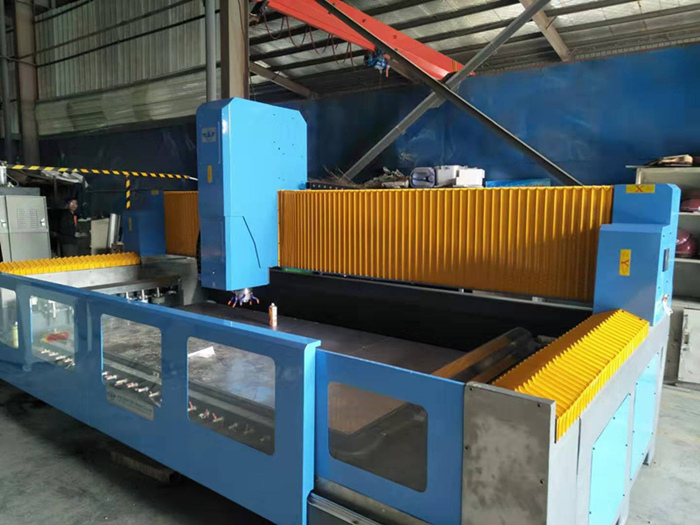

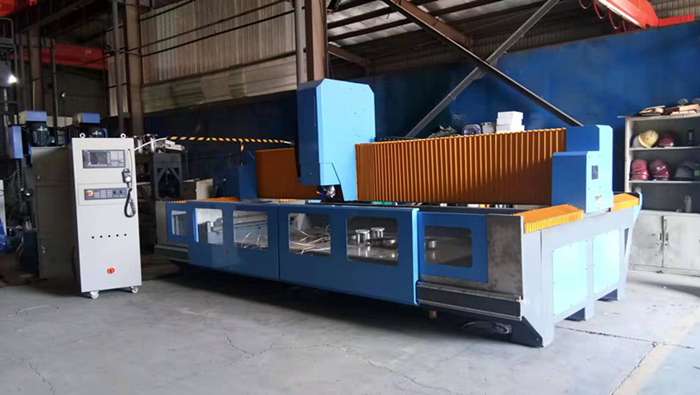

Stone CNC Machine pictures:

Stone CNC Machine Center

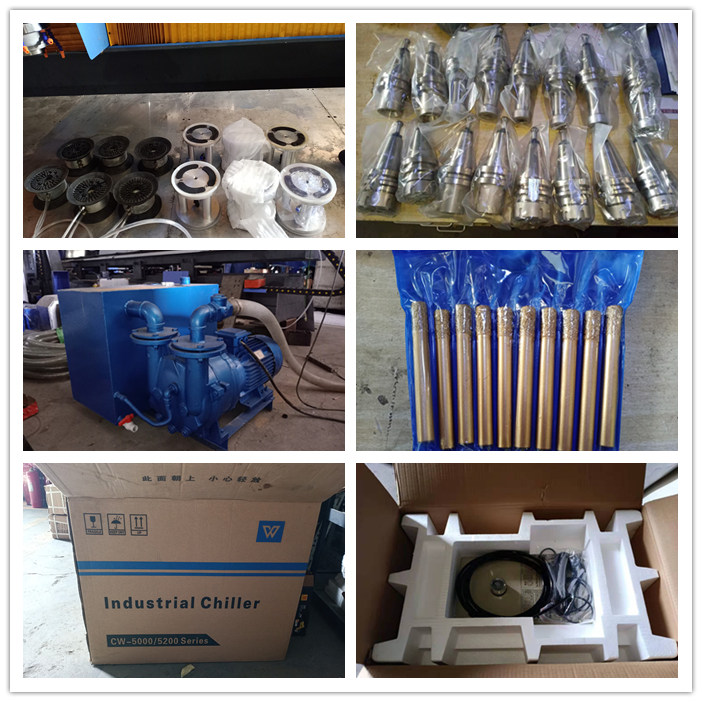

Jiahe use famous brand and best quality parts on stone CNC for sale.

1、spindle	7.5KW
2、guides	30mm square linear guide rails

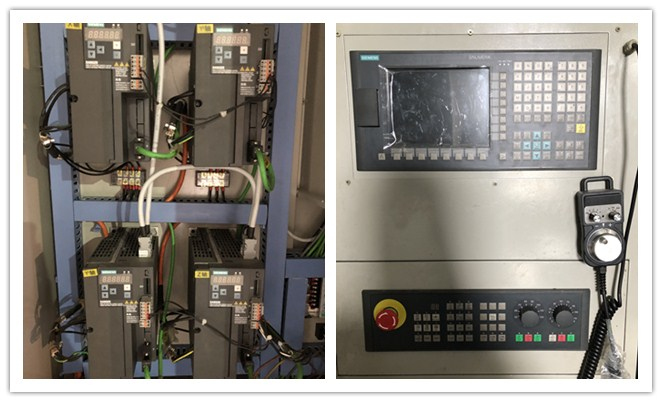

3、controller	Siemens ATC control system
4、motor&driver	Siemens servo motors and drivers
5、tool magazine	16 tools linear type ATC
6、transmission	X/Y axis gear rack, Z axis 3210 ball screws
7、electronic parts	Chint
8、cables	Imported special cables for CNC
9、table	ABS sheet+aluminum sheet
10、sucker	12 pieces
